OWON LCD-Oscilloscope

Item No.: 104882

Add to wish list

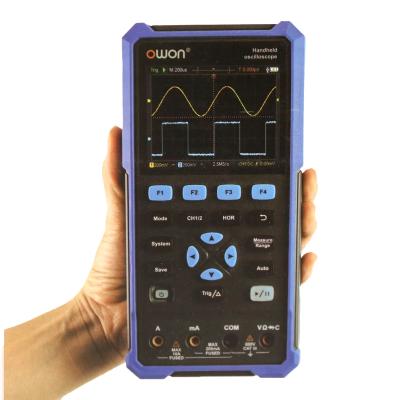

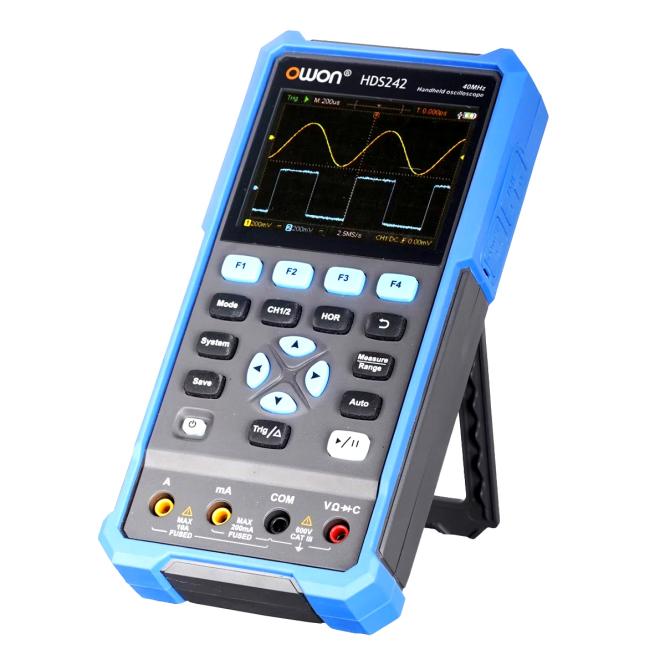

Digital 2-channel storage oscilloscope with 9 cm (3.5") LC display and integrated digital multimeter.

Oscilloscope

Oscilloscope
Channels: 2
bandwidth: 40 MHz
Sampling rate 250 MSa/s (Single Channel), 125 MSa/s (Dual Channel)
Sampling Method: Regular, Peak-capture
Memory depth: 8k
Rise time: ≤ 8 ns
Waveform Refresh rate: 10.000 Waveform/Second
Input coupling: DC, AC, GND
Input impedance: 1 MΩ ± 2% II 16 pF ± 10 pF
Probe divider: 1x, 10x, 100x, 1000x, 10000x
maximum input voltage: 400 V (DC+AC, PK-PK, 1 MΩ Input impedance, 10:1 Teiler)
Y-Divider: 10 mV/div…10 V/div
X-Divider: 5 ns/div…1000 s/div (Abstufung 1-2-5)
Vertical resolution: 8 bit
Trigger-types: Edge
Trigger-Modi: Auto, Regular, Single
Automatic measurement: Period, Frequency, Mean value, PK-PK, Max, Min, Amplitude
Cursor-measurement: ΔV, ΔT, ΔT&ΔV

multimeter

Counting units: 20.000
Direct voltage: 200 mV ±(0,5 % + 5 digits), 2 V/20 V/200 V ±(0,3 % + 3 digits), 600 V ±(0,5 % + 2 digits)
Alternating voltage: 200 mV/2 V/20 V/200 V ±(0,8 % + 5 digits), 600 V ±(1 % + 5 digits)
Direct current: 200 mA ±(0,8 % + 2 digits), 10 A ±(2,5 % + 2 digits)
Alternating current: 200 mA ±(1 % + 5 digits), 10 A ±(2,8 % + 5 digits)
Resistor: 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ ±(0,8 % + 3 digits), 20 MΩ ±(1 % + 3 digits), 100 MΩ ±(3 % + 3 digits)
Capacitance: 20 nF/200 nF/2 µF/20 µF/200 µF/2 mF ±(3 % + 10 digits)
Continuity tester: < 50 Ω
Diode test: 0…2 V
Automatic and manual Measurement range selection
Data-Hold-Function
Relative value function
True RMS
