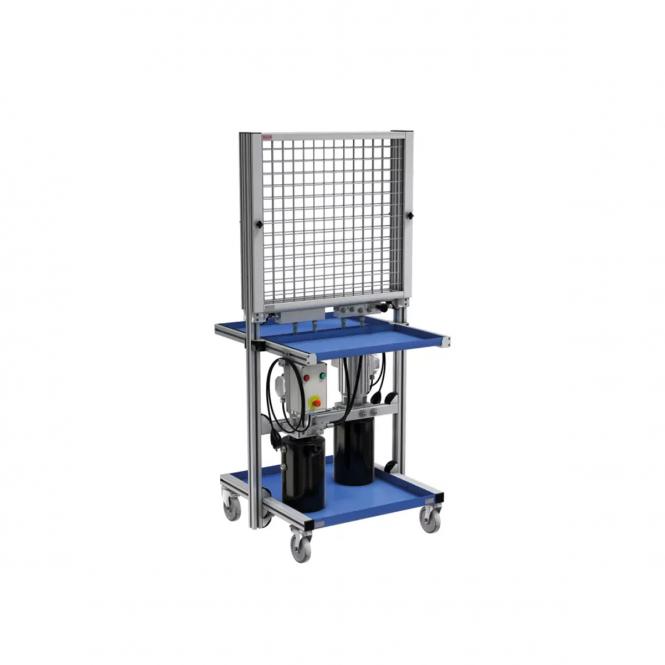

Workstation Hydraulix 200

Workstation Hydraulix 200
with grid, 230 V AC/ 60 Hz, double-sided for 2-4 trainees

assembled, incl. packaging
Item No.: 31795
Add to wish list

This workstation is perfectly suited for the training in hydraulics – basics.

The mobile workstation has two grids at which the hydraulic components can be safely attached. It can be operated on two sides and can be used simultaneously by two to four trainees in two groups.

The installed hydraulic power unit is equipped with a noise-reduced external gear pump and a one-phase asynchronous motor.

The control box has one ON and one OFF push button as well as an emergency OFF push button. The voltage supply of the workstation is effected by means of a mains cable (length approx. 1.8 m) with safety plug.

The easy and safe supply with hydraulic fluid is ensured by means of low leakage oil, self-sealing coupling plugs at the P/T distributor.

The supplied storage trays can be converted from an oil tank into a practical writing pad by just turning them.

  • base frame
  • 2 grids
  • 2 hyraulic power units, 230 V/50 Hz with pump, hose set, control box, and P/T distributor
  • storage set
  • dimensions (LxWxH): 800 x 806 x 1772 mm
  • number of workplaces: 2-4
  • weight: 85 kg
  • supply voltage: 230 V
  • rated current: 2x 1,6 A
  • mains frequency: 60 Hz
  • power: 2x 0,37 kW
  • max. working pressure: 50 bar
  • max. flow: 2x 3,0 l/min
  • tank: 2x 6,2 l
