Digital Twin teaching system in modern CNC training - desktop version for classrooms
The use of the digital twin considerably expands the learning opportunities in training and opens up numerous didactic perspectives:
- Practical experience in CNC programming
- Setting up tools and carrying out CNC machining on various machine tools (virtual)
- Teaching of all necessary theoretical and practical knowledge
- Error and safety simulation: The teaching system can simulate errors and problems in CNC machining. This gives
This gives learners the opportunity to recognise, analyse and analyse and rectify them. The consideration of safety aspects ensures a safe learning environment:
- Visual and haptic: Realistic size of the control panel of a CNC milling or turning machine, miniaturised representation of the realistic view into the machine.
- Realistic digital image of the machine tool used in the workshop. The digital image includes all geometries of the machine, fixtures, tools and the controls used, including the version and all parameter settings.
Can be extended with various digital twins from well-known milling and turning machine manufacturers for an additional charge.
Language options: English, spanish, chinese
Primarily the major metalworking professions, wherever CNC technology is taught as part of the curriculum, but also further training as part of CNC qualification (users, master craftsmen, technicians and engineers).
Practical experience in CNC programming, setting up tools and carrying out CNC machining on various machine tools (virtual).
The teaching system can simulate errors and problems in CNC machining to give learners the opportunity to recognise, analyse and rectify them. It also takes safety aspects into account through the virtual environment to ensure a safe learning environment. There are no costs for destroyed material, tools or machine components in the event of intentional or unintentional user errors.
The digital twin provides a visual representation of the CNC machining process, including 3D models, tool paths, material flow and machining results. This enables detailed modelling and simulation of CNC processes, including tool and machine movements.

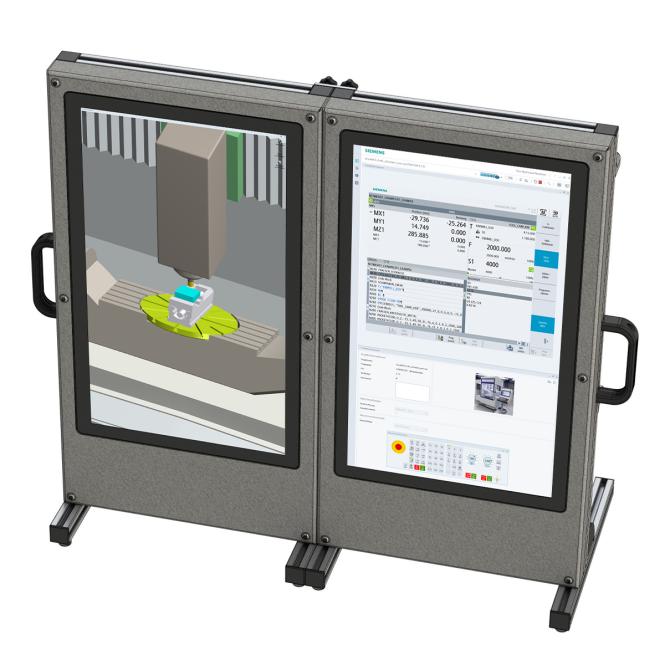

Stationary teaching system with monitors, PC, as well as the Siemens SINUMERIK ONE Run MyVirtual Machine /Operate software package and 3D single-user licences, including the associated maintenance packages for one year.
*Other licence variants on request
- Stable aluminium frame with handles
- 2 x 24’ touch monitors
- 1x PC with powerful equipment
- LAN, WLAN, Bluetooth
- Windows 10 Pro 64 bit
- Siemens SINUMERIK ONE Run MyVirtual Machine /Operate and 3D software packages pre-installed.
- Mains connection 230V/50Hz (other power supplies and mains plugs possible)
- Dimensions approx. 800 x 780 x 400 mm (L x H x W)
- Weight approx. 30 kg
