Three-phase Asynchronous Motor DRN71M4

Three-phase Asynchronous Motor DRN71M4
Didactic Kit

Transmission Technology
Item No.: 101634
Add to wish list

Especially for vocational training, we have designed an industrial three-phase asynchronous motor as a didactic kit and developed the corresponding accessory components and spare parts. This teaching aid is intended for use in initial and further training, e.g. at vocational schools, technical schools, colleges, universities or company training centres.

  • Enables theoretical and practical introduction to electrical engineering
  • Assembly and disassembly of the motor can be practised repeatedly - without cost-intensive assembly

Practical laboratory exercises:

  • Flanging the three-phase asynchronous motor to the didactic kit gear unit
  • Planning preventive maintenance based on the parts list or individual components
  • Designing for assembly

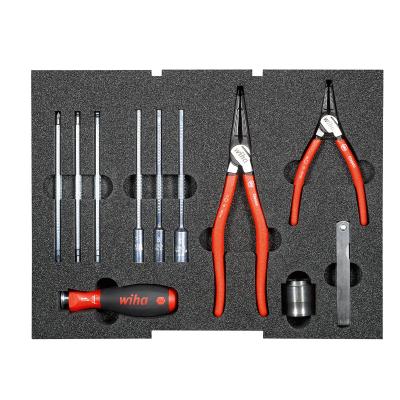

  • Handling of assembly tools and assembly aids
  • Close to series production

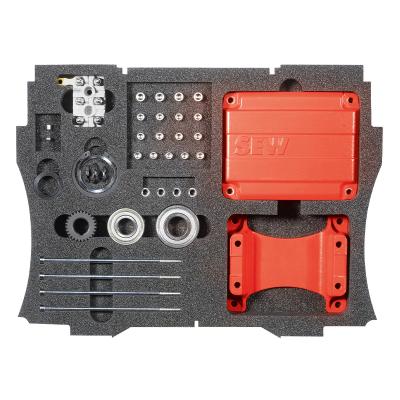

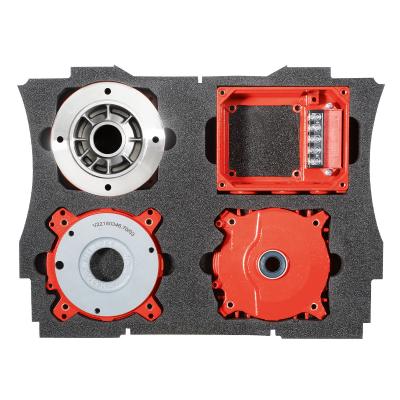

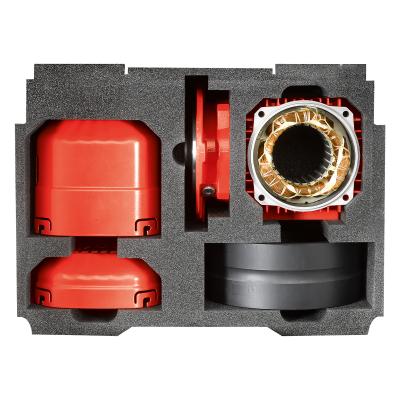

  • Motor designation: DRN71M4

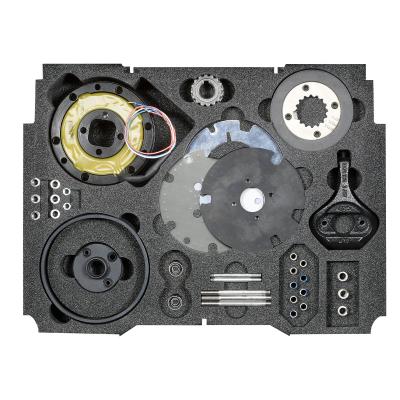

  • Brake BE05
  • Handwheel on fan side
  • Assembly and disassembly are possible with standard industrial tools

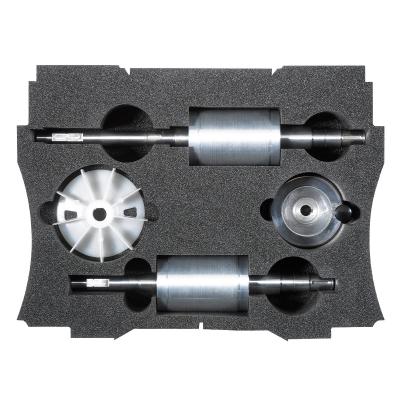

  • Components such as motor shaft, deep-groove ball bearing and pinion are corrosion-protected

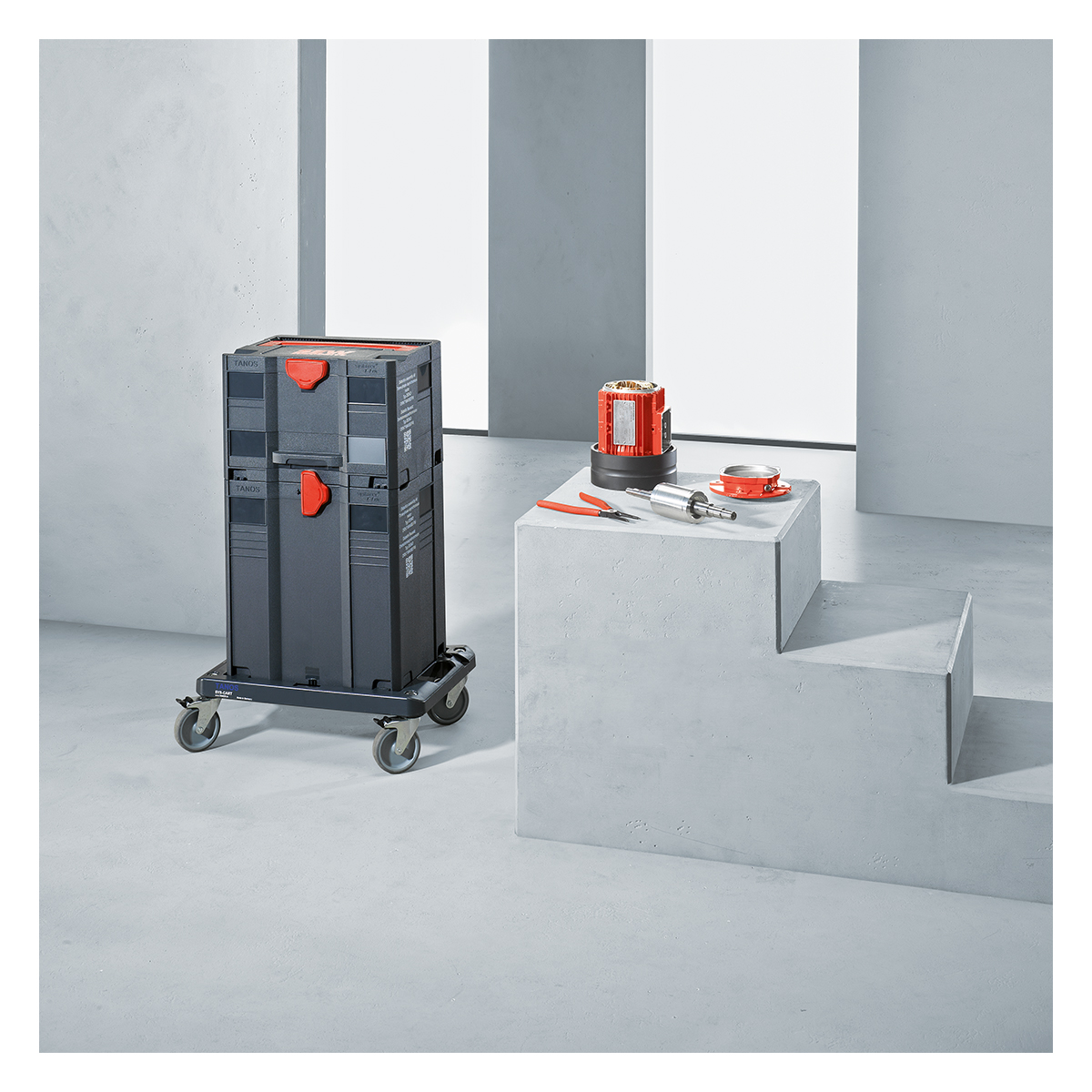

  • Integrated in a sturdy plastic case
  • The motor model has been developed exclusively for didactic use
