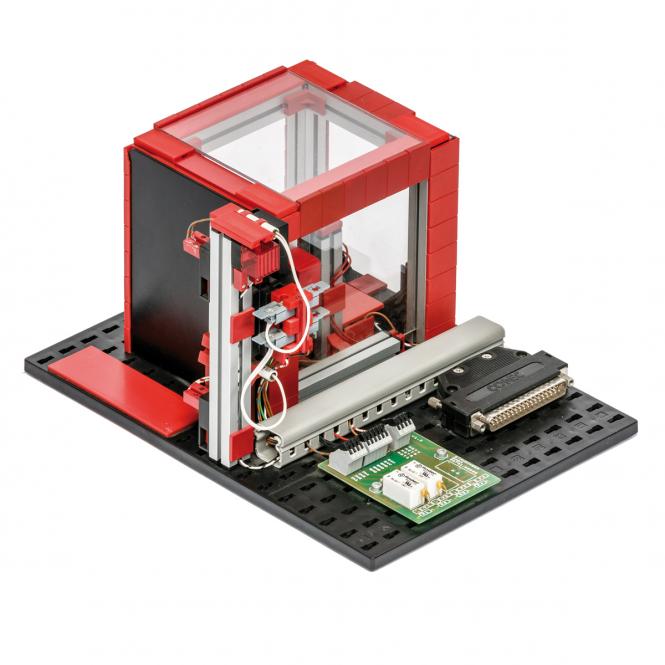

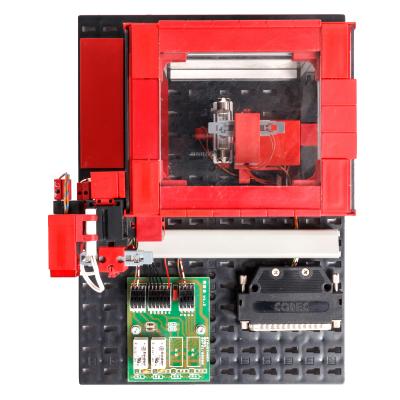

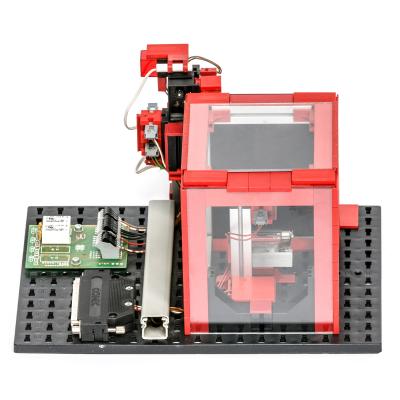

The model Burning Kiln with Door Control simulates a system of burning chamber as like as it is to be used in industry e. g. as curing oven. The model consists of a heating chamber and a moveable door. In the heating chamber are a festoon bulb, which acts as heating element, as well as a temperature sensor.
In simulation the ambient temperature increases by burning festoon bulb which is analogically scaled via temperature sensor. As soon as a set value is reached (burning temperature) it is constantly hold for a certain period (e. g. 25 sec) via two-position controller. After the burning time completion the door can be opened once again. Opening and closing of the door is signed by flashing signal lamp.
With Christiani's industrial models, you can convey almost all learning content as in a real automation system:
Training in the departments:
Dimensions: 187 x 259 x 150 mm (L x W x H)
Supply voltage 24 V
Components
Requirements for the PLC:
Electrical Connection:
Accessory cable:
