Christiani Industry Model Conveyor Belt

Christiani Industry Model Conveyor Belt
with Machine Tool

Combinable Model
Item No.: 14811
Add to wish list

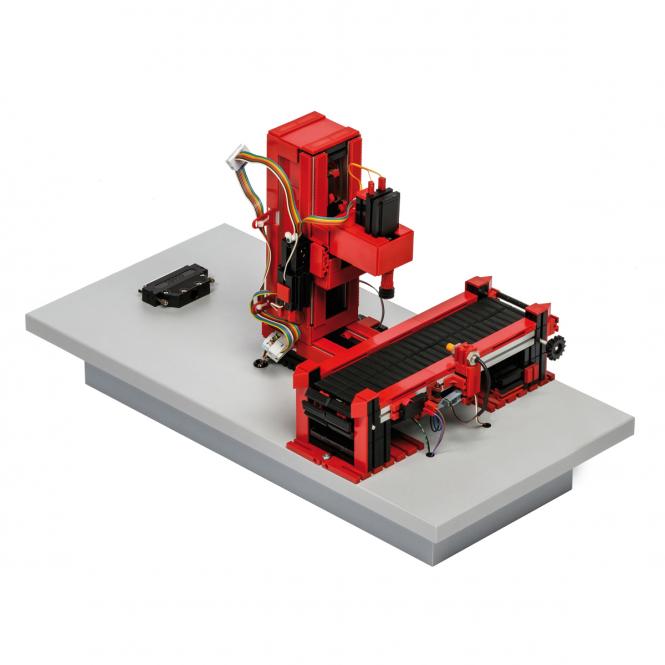

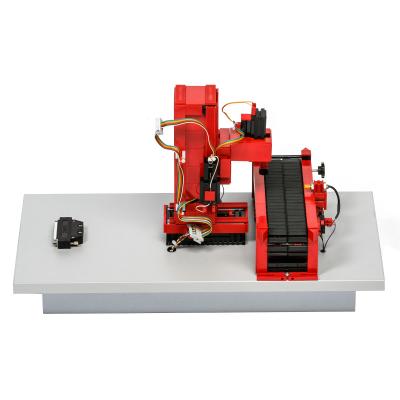

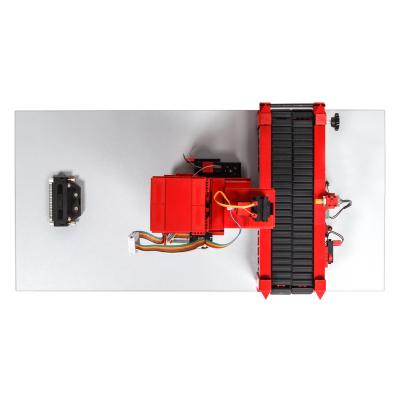

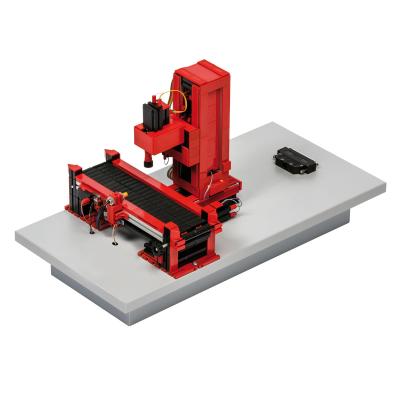

The combinable model contains the modules conveyor belt and a machine tool with a processing toll head.

The conveyor belt brings the work piece into the range of the machine tool. The piece gets machined and afterwards conveyed on. The production line combinable models is a modular designed model system. Here with different combinable models can be handed over to several members of working groups for working on and after that connecting them together, hardware and software technologically to a complete project in teamwork.

With Christiani's industrial models, you can convey almost all learning content as in a real automation system:

  • Requirements definition
  • Control planning
  • Control selection
  • Programming
  • Commissioning
  • Setup and adjustment
  • Verification of results

Training in the departments:

  • Automation technology
  • PLC programming
  • Control technology
  • Electrical engineering
  • Maintenance
  • Logistics

Dimensions: 270 x 550 x 350 mm (L x W x H)

Supply voltage: 24 V

Components:

  • Sensors:
    • 1 x inductive proximity switch
    • 5 x Mechanical switches
  • 1 x Motor with one direction of rotation
  • 3 x Motors with two directions of rotation
  • 1 x LED

Requirements for the PLC:

  • 6 x Digital Inputs
  • 8 x Digital Outputs

Electrical Connection:

  • SUB-D1 - 37 poles (18pins occupied)

Accessory Cable:

  • 1 x connecting Cable 20 x 0.34 mm²
