Christiani Industry Model Conveyor Belt, Turntable and Roll Line

Christiani Industry Model Conveyor Belt, Turntable and Roll Line
Combinable Model

Item No.: 14810
Add to wish list

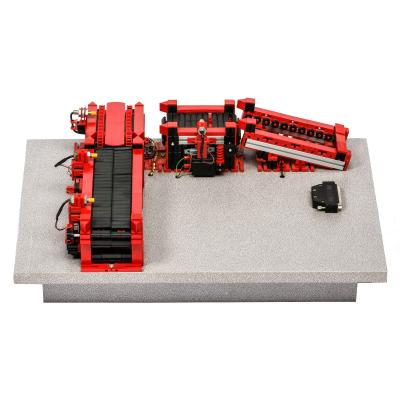

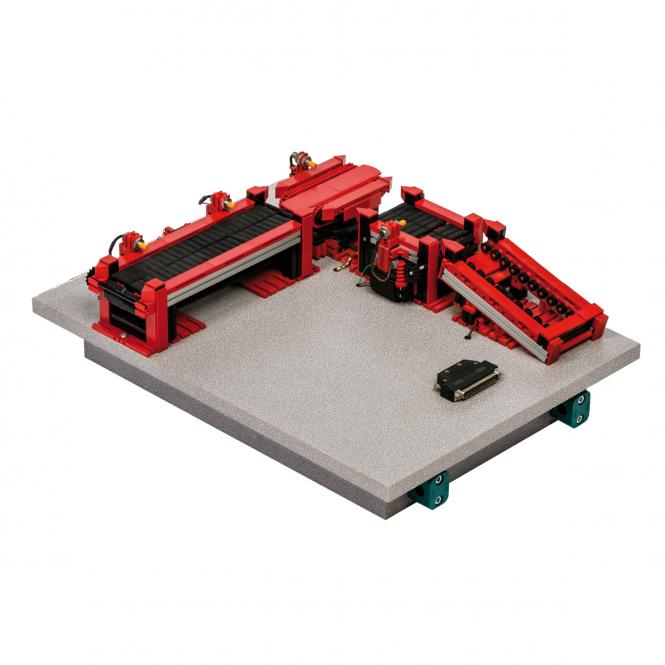

The combinable model contains the modules conveyor belt, turntable and roll line. A work piece gets conveyed to the discharging place roll line. Therefore it gets transported on the conveyor belts, which are arranged in a 90°-angle. Passing through extraction drifts are able to work in both directions. The production line combinable models is a modular designed model system. Here with different combinable models can be handed over to several members of working groups for working on and after that connecting them together, hardware and software technologically to a complete project in teamwork.

With Christiani's industrial models, you can convey almost all learning content as in a real automation system:

  • Requirements definition
  • Control planning
  • Control selection
  • Programming
  • Commissioning
  • Setup and adjustment
  • Verification of results

Training in the departments:

  • Automation technology
  • PLC programming
  • Control technology
  • Electrical engineering
  • Maintenance
  • Logistics

Dimensions: 405 x 550 x 180 mm (L x W x H)

Supply voltage: 24 V

Components:

  • Sensors:
    • 1 x light Sensor

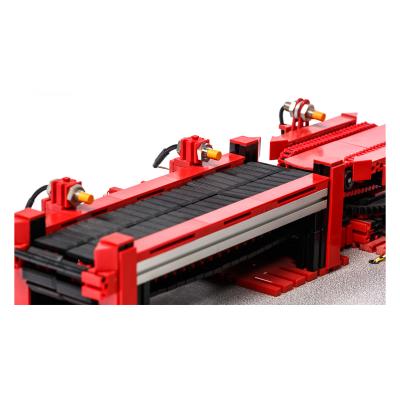

    • 4 x inductive proximity switches
    • 3 x Mechanical switches
  • 4 x Motors with two directions of movement
  • 1 x LED

Requirements for the PLC:

  • 8 x Digital Inputs
  • 9 x Digital Outputs

Electrical Connection:

  • SUB-D1 - 37 poles (21 pins occupied)

Accessory Cable:

  • 1 x connecting Cable 20 x 0.34 mm²
  • 1 x connecting Cable 8 x 0.34 mm²
