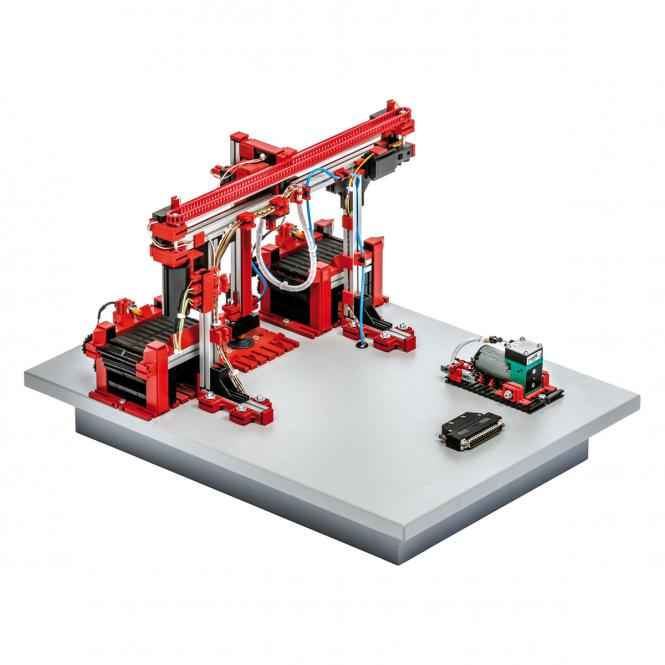

The combinable model contains the modules conveyor belts, a 2-axis-portal and a temporary store.
The robot uses a vacuum grab to turn over a work piece between the conveyors belts, respectively the temporary store. The conveyor belts are used as charging and discharging units of the module constituent. The special work pieces from the model building block “pneumatic picking” could not be used in this unit! The production line combinable models is a modular designed model system. Here with different combinable models can be handed over to several members of working groups for working on and after that connecting them together, hardware and software technologically to a complete project in teamwork.
With Christiani's industrial models, you can convey almost all learning content as in a real automation system:
Training in the departments:
Dimensions: 405 x 550 x 260 mm (L x W x H)
Supply voltage: 24 V
Components:
Requirements for the PLC:
Electrical Connection:
SUB-D1 - 37 poles (27 pins occupied) Accessory cable:
1x connecting cable 20 x 0.34 mm²
1x connecting cable 8 x 0.34 mm²
