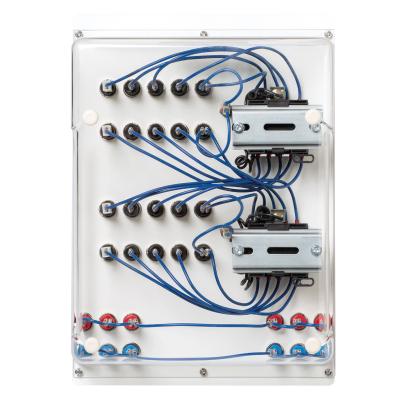

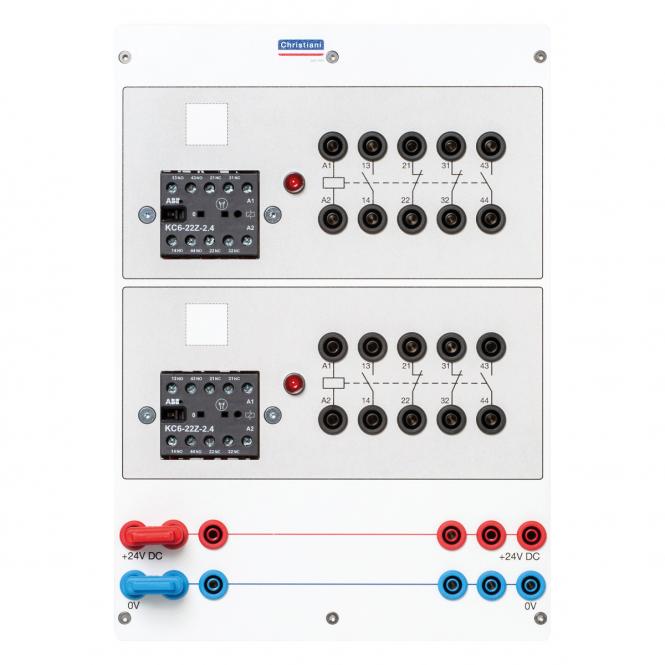

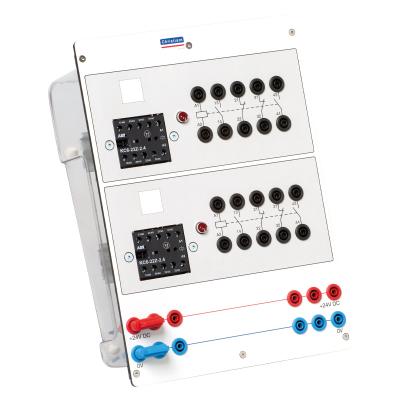

- Learning board contactor relay
- A4 learning board for use in an A4 experimental frame, e.g. on a laboratory bench.
- 4 contacts each (2NC, 2NO)
- Each with extinguishing element
- Control voltage 24 V DC
- Front plate size: A4
- Transparent desk housing
- Dimensions (L x W x H): 210 x 297 x 96 mm
- Weight: 1,27 Kg
- Rated control voltage (Uc): 17 - 32 V DC
- Rated operational current AC (Ue): (24 V) 4 A, (240 V) 4 A, (400 V) 3 A
- Rated operational current DC (Ue): (24 V) 1.5 A, (110 V) 0.4 A, (230 V) 0.04 A
Training companies and schools in trade and industry in the electrical engineering sector
Learning Field 8, in the following professions:
- Electronics technician for automation technology: selecting and integrating drive systems
- Electronics engineer for industrial engineering: Selecting and integrating drive systems
- Electronics technicians for energy and building services engineering: Selecting and integrating drive systems
- Electronics technician for building and infrastructure systems: Extending building services systems according to business management aspects
- Electronics technicians for devices and systems and system electronics technicians: Manufacturing and testing devices
- Electronics engineer for machine and drive technology: Integrating electrical machines and mechanical components
- Learning board contactor relay
- 19 mm jumper plug (without centre tap): 1x red, 1x blue
