Learning board star-delta and multifunction time relays

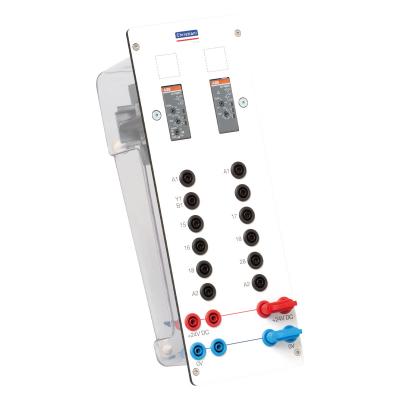

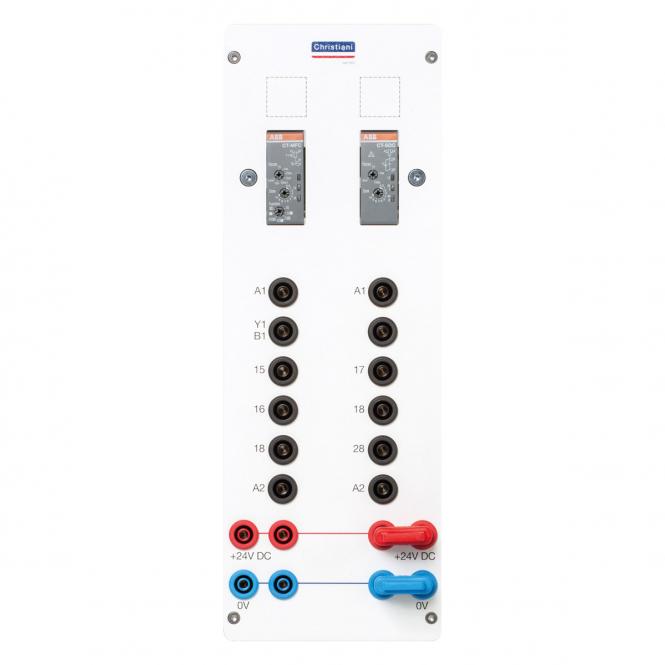

A4 learning board for use in an A4 experimental frame, e.g. on a laboratory bench
Star-Delta Time Relay CT-YDE
- 24 V AC/DC and 220 - 240 V AC
- 3 - 300s, on-delayed response, off-delayed without auxiliary voltage
Multifunction relay CT-MFE
- 24-240V AC/DC
- 8 time ranges (0.05s - 100h)
- 6 functions
- With 24V DC control voltage bus
- Spaces for equipment labeling

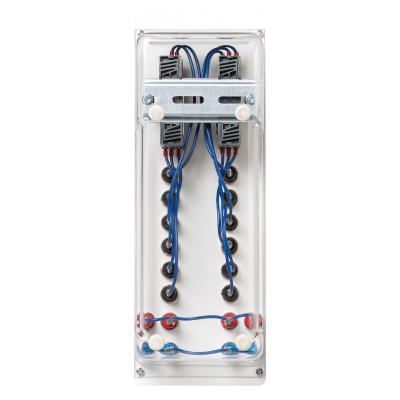

- Transparent housing
- 19 mm jumper plug (without centre tap): 1x red, 1x blue
Training companies and schools in trade and industry in the electrical engineering sector
Learning Field 8, in the following professions:
- Electronics technician for automation technology: selecting and integrating drive systems
- Electronics engineer for industrial engineering: Selecting and integrating drive systems
- Electronics technicians for energy and building services engineering: Selecting and integrating drive systems
- Electronics technician for building and infrastructure systems: Extending building services systems according to business management aspects
- Electronics technicians for devices and systems and system electronics technicians: Manufacturing and testing devices
- Electronics engineer for machine and drive technology: Integrating electrical machines and mechanical components
- Dimensions (L x W x H): 105 x 297 x 96 mm
- Weight: 0,66 Kg
Multifunction time relay:
- Operating voltage: 24 - 240 V AC/DC
- Operating current: 2 - 4 A
Star-delta time relay:
- Operating voltage: 24 V AC/DC, 220 - 240 V AC/DC
- Operating current: 2 - 4 A
