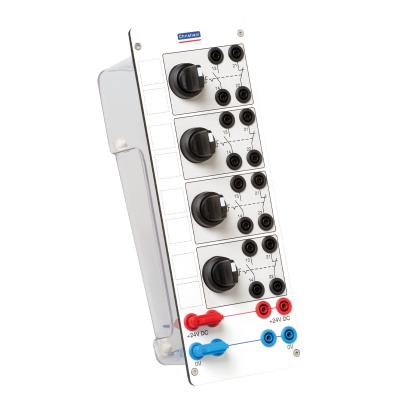

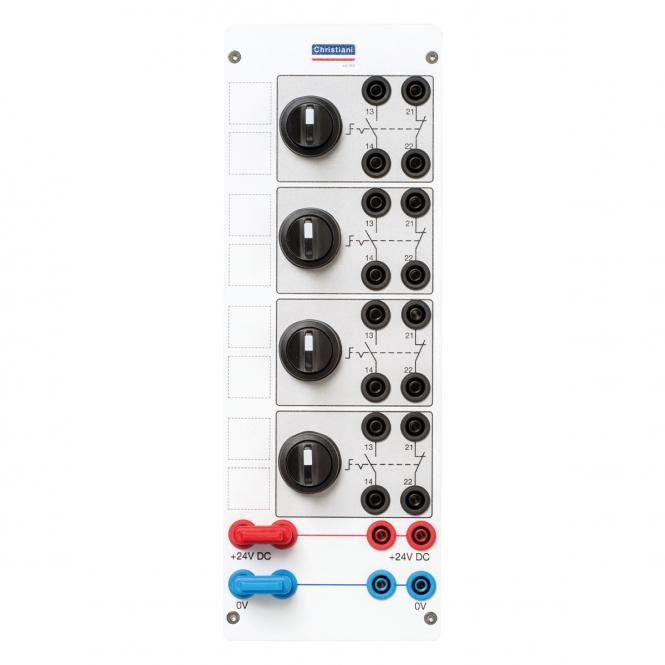

Training Board Rotary Switch

Item No.: 98153

Learning board 4 Rotary switch

A4 learning board for use in an A4 experimental frame, e.g. on a laboratory bench.

  • 1NC and 1NO
  • 2 latching switch positions 0-1
  • Compact design
  • Short turn knob
  • Black
  • With 24V DC control voltage bus panels for equipment labeling

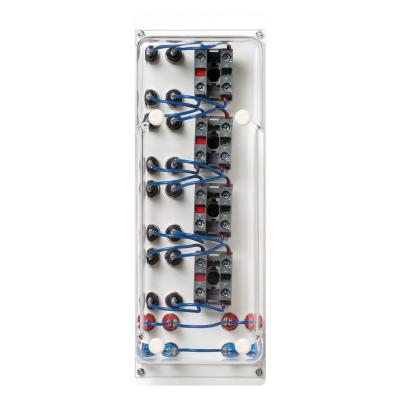

  • Transparent housing
  • Learning board 4 Rotary switch
  • 19 mm jumper plug (without centre tap): 1x red, 1x blue

Training companies and schools in trade and industry in the electrical engineering sector

Learning Field 8, in the following professions:

  • Electronics technician for automation technology: selecting and integrating drive systems
  • Electronics engineer for industrial engineering: Selecting and integrating drive systems
  • Electronics technicians for energy and building services engineering: Selecting and integrating drive systems
  • Electronics technician for building and infrastructure systems: Extending building services systems according to business management aspects
  • Electronics technicians for devices and systems and system electronics technicians: Manufacturing and testing devices
  • Electronics engineer for machine and drive technology: Integrating electrical machines and mechanical components
  • Dimensions (L x W x H): 105 x 297 x 96 mm
  • Weight: 0,67 kg
  • Rated operational current AC:
    • (220 / 240 V) 6 A
    • (24 / 127 V) 8 A
  • Rated operational current DC:
    • (125 V) 1.1 A
    • (24 V) 5
  • Number of toggle switches installed: 4
  • Number of contacts per toggle switch: 2 (1x NO/1x NC)
