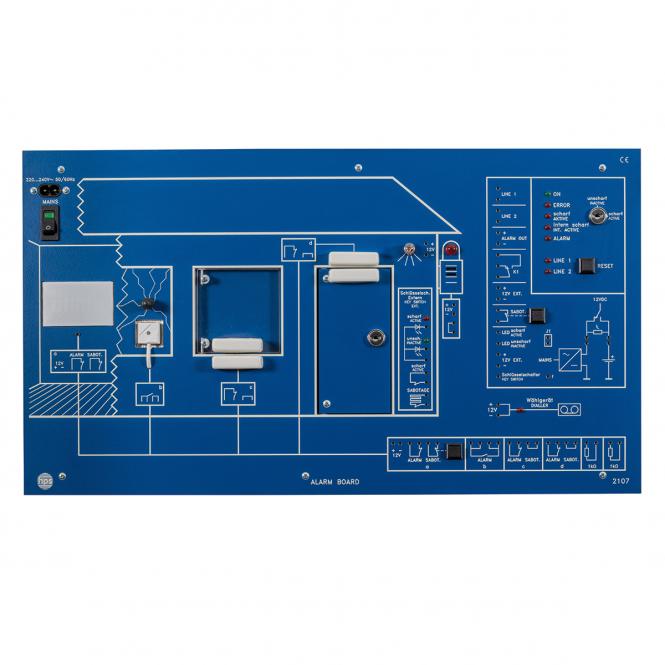

With the training board Alarm, all systems of an alarm system can be examined step by step, up to the complete system. The individual components can be freely connected. This allows a step-by-step introduction up to the complete commissioning of the entire system. A practical alarm centre is integrated as well as the following original sensors:
- Motion detector
- Glass breakage detector
- Reed contact switch with functioning window
The entrance door is secured by a key switch and additionally by reed contact. Further signalling devices such as outside light, alarm transmitter (optical/acoustic) and dialer replica are also present.
Note: The matching experiment instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
Built-in components:
- PIR motion detector (PIR: Passive Infrared Intrusion), with alarm and sabotage output
- 2 reed contact switches for windows and doors with one alarm contact and one sabotage loop each
- Glass breakage detector
- Key switch (door) with external display
- LEDs: sharp / unsharp
- Dialler (simulation)
- Outdoor Light
- Alarm siren with flash light
Alarm center:
- Key switch
- Inputs: LIN 1 / LINE 2 / key switch
- Outputs: alarm out / relay K1 / power supply / sabotage / LED: armed, disarmed / 12 V external
- Indicators (LEDs): operation / fault / armed / internal armed / alarm / LINE 1 / LINE 2
- Simulation: power failure and missing battery
To conduct experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration. The board is also available in a box (see "Matching this").
- Electronics technician for energy and building technology
- Electronics technician
- Electronics technician for industrial engineering
- Electronics technician for building and infrastructure systems
- Burglaries and what to do about them
- Basics of EMA technology
- Components of a burglar alarm system
- Detector groups of the alarm board
- The burglary alarm control panel of the Alarm Board
- Examples of burglar alarm systems
- Mains connection:
- Mains voltage: 230 V AC / 115 V AC (110 V AC)
- Mains frequency: 50 - 60 Hz
- Power consumption: approx. 10 VA
- PIR motion detector:**
- Operating voltage: 12 V DC
- Glass breakage detector:
- Operating voltage: 5 - 12 V DC / max. 8 mA
- Dialler (simulation):
- Operating voltage: 12 V DC
- Outdoor light:
- Operating voltage: 12 V DC / 1 W
- Alarm siren with flash light:
- Operating voltage: 12 V DC
- Alarm center:
- Voltage output: 12 V DC / 0.2 A All inputs and outputs are connected via 2 mm sockets.
- Dimensions (W x H x D): 532 x 297 x 140 mm
- Weights: approx. 3,1 kg
Mechanical specifications:
The front panel of the training board is made of 5 mm thick laminate, color matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and its shape allows the unit to be placed at an ergonomically favourable angle on the table.
- Training board Burglar Alarm System Board
- Accessory kit for training board
