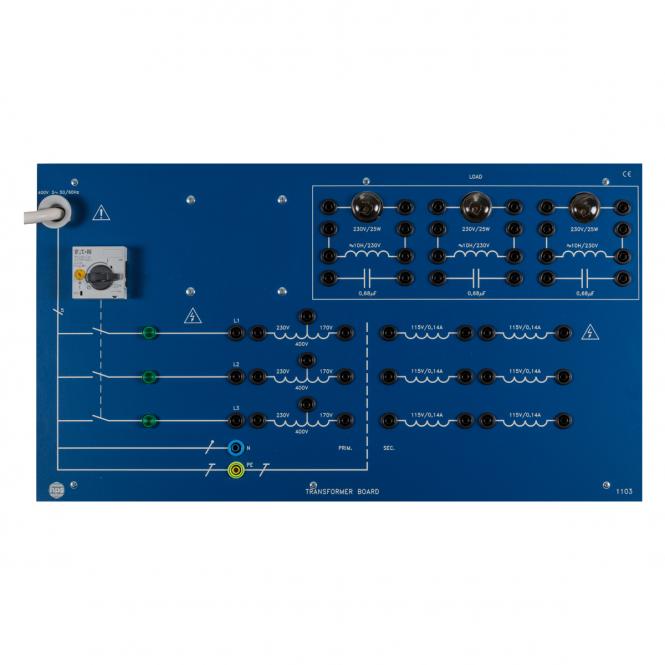

With the teaching system transformer you can perform all experiments on transformers. The teaching system is suitable for 1-phase and 3-phase experiments. It is equipped with resistive, inductive and capacitive load. It is also equipped with a built-in circuit breaker.
Note: The matching experimental instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
To carry out experiments, the training board is placed on the table or hung in an A4 experiment rack for demonstration purposes. The training board is also available in a box (see "Matching this").
- All electrical professions
- Open circuit voltage of 1-phase transformer
- Transformation ratio of 1-phase transformer (at resistive, inductive and capacitive load)
- Losses of the transformer
- Autotransformer for up-transforming
- Autotransformer for down transforming
- The three-phase transformer in Yd-/Yy-/Yz-/Dy-/Dz- circuit
- The phase multiplier circuit
- Current and voltage conditions of the three-phase transformer (with resistive, inductive and capacitive load)
- Unbalanced load of the three-phase transformer
- Mains connection
- Mains cable 5-pole. with cekon plug
- Conductor L1, L2, L3, N, PE
- Display Signal lamp green
- Circuit breaker
- Tripping current 0.1 - 0.16 A
- Preset to 0,16 A
- Transformer
- Primary voltage: 3 x 230 V/400 V
- Secondary voltage: 6 x 115 V/0.14 A
- Power approx. 100 VA
- Switchable loads
- Ohmic load: 3 lamps, 230 V/25 W (E14)
- Inductive load: 3 coils, approx. 10 H
- Capacitive load: 3 capacitors, 0.68 µF
- Dimensions(W x H x D): 532 x 297 x 110 mm
- Weight: 5.1 kg
Mechanical specifications
The front panel of the training board is made of 5 mm thick laminate, color matte blue, and is engraved with white switching symbols, corresponding to the built-in functional groups. A sturdy plastic cover protects the back of the device and its shape allows it to be placed at an angle on the table to suit the work.
