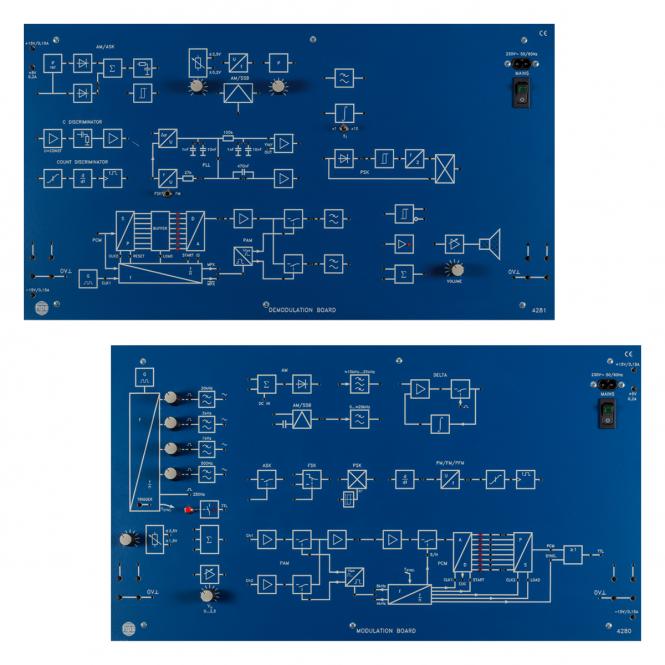

This teaching system consists of 2 learning boards on the subject of communication technology.
The modulation board illustrates the most common analogue and digital modulation methods. In this way, you can teach learners the basics of communication technology.
The Demodulation Board is an extension of the Modulation Board. This learning board contains all the important demodulators.
All output signals of the Modulation Board can be demodulated with the Demodulation Board. Due to a well thought-out concept, the preparation time for experiments can be reduced to a maximum.
Note: The matching experiment instructions must be ordered separately.
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
Training Board Modulation
-
Modulation types:
-
AM
-
SSB
-
FM
-
PM
-
PAM
-
PCM
-
PFM
-
PPM
-
DM
-
ASK
-
FSK
-
PSK
-
Clock generator with frequency dividers
-
Generation of carrier and modulation signals
-
Signal generator
-
Investigation of digital modulation methods
-
Electronic debouncing
-
Indication by LED
-
Adjustable DC voltage source
-
Summerizer
-
Adds up to three signals
-
Amplifier
The training boar MODULATION can be used as a benchtop unit or hung in an experimental frame. Optionally, a box can be used for transport and storage. Experiments can be performed directly on the training board in the box.
Training Board Demodulation
- Modulation types:
- AM / AM-ESB / AM-ZSB
- FM
- PM
- PAM
- PCM
- PFM
- DM
- PSK
- FSK
- AKS
- Integrator
- Switchable integrator time
- Phase modulation (PM) / Demodulation (DM)
- Schmitt trigger
- Recovery at ASK, FAS and PSK of digitally demodulated signals
- Low-pass filter
- Range from approx. 10 Hz to 3.4 kHz
- Summerizer
- Summing amplifier adds two signals
- Speaker
- Acoustic reproduction of the demodulated signals
- Adjustable volume
- Connection via 2 mm socket
The training board Demodulation can be used as a tabletop unit or can be hooked into an experimental frame. Optionally, a box can be used for transport and storage. Experiments can be performed directly on the training board in the box.
- Electronics technician for industrial engineering
- Electronics technician for building and infrastructure systems
- Electronics technician for energy and building technology
Training board Modulation
- Theoretical basics of modulation technology
- The adder
- The Multiplier
- Amplitude modulation
- Angle modulation method
- Pulse modulation method
- Pulse code modulation
- Delta modulation
Training board Demodulation
- Measuring the frequency response of different low-pass filters
- Measurements on an integrator
- Amplitude modulation - Demodulation
- Angle modulation method - demodulation
- Digital modulation methods - demodulation
- Pulse code modulation - Demodulation
- Delta modulation - demodulation
- Time division multiplexing and PCM
- Mains connection:
- Mains voltage: 230 V AC / 115 V AC (110 V AC)
- Mains frequency: 50 Hz...60 Hz
- Power consumption: 50 VA
- Output voltages and currents
- Short-circuit proof
- Connection of external transmission lines and interference sources
- +/- 15 V / 0.15 A
- + 5 V / 0.2 A
- Signal source
- Sine: USS 5 V; f = 0.5 / 1 / 2 / 20 kHz
- Square wave: US 5 V; f = 0.25 / 0.5 / 1 / 2 / 20 kHz
- Trigger signal: 250 Hz
- Dimensions (W x H x D): 532 x 297 x 90 mm
- Weight: 3.6 kg
Mechanical specifications
The front panel of the training board is made of 5 mm thick laminate, colour matt blue, and is engraved with white switching symbols corresponding to the built-in function groups. A sturdy plastic cover protects the rear of the unit and, due to its shape, allows it to be placed at an angle on the table to suit the work.
- Training board Modulation
- Training board Demodulation
- Receiver board
- Coaxial board
- Transmitter board
- Set of connection technology for the De-/Modulation Board
