Magazine Unit
Type 2

Manufacturing Kit
Item No.: 30545

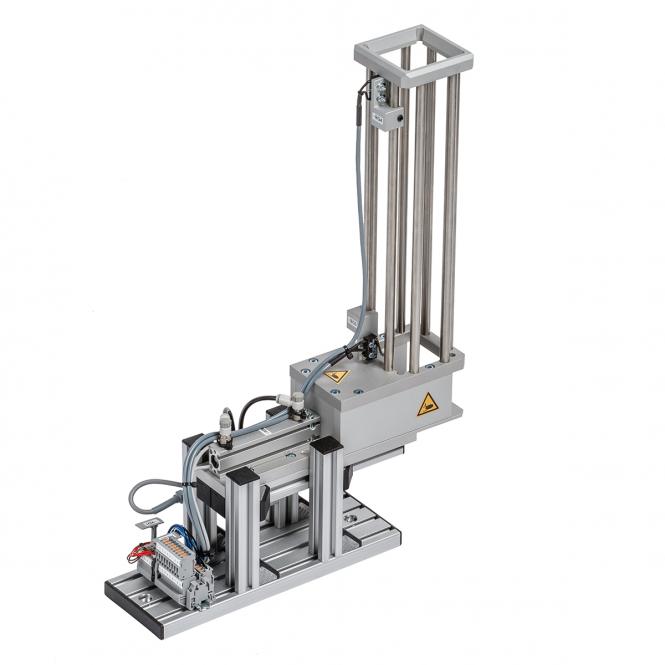

Functional Unit: Magazine Unit Type 2 - for up to 8 Workpieces euipped with pins - manufacturing kit

The function of the separating magazine is to separate workpieces such as cube halves. In the storage of the separating magazine type 2 there is room for up to eight stacked workpieces.
In contrast to the separating magazine 1, it can hold the cube halves including inserted connecting pins.
In connection with magazine type 1, it is thus possible to alternately separate cube halves with pins and without pins.

The operating pressure is 4 bar, the operating voltage 24 VDC.

  • Work planning, technical communication
  • Testing, marking and identification
  • Manual and mechanical machining, separating and reshaping
  • Assembly work
  • Design of electrical control systems
  • Design of pneumatic control systems
  • PLC programming
  • Commissioning of mechatronic/electro-pneumatic systems
  • Troubleshooting
  • Automation of work processes
  • Design and function of electro-pneumatic systems

Function module as kit

Delivery incl. digital media library with

  • Technical documentation
  • Assembly instructions
  • Multimedia content

Dimensions: 100 x 300 x 420 mm (L x W x H)
Operating pressure: 4 bar
Operating voltage: 24 VDC
Components:

  • 2 x cylinder switch
  • 1 x diffuse sensor
  • 2 x microswitches
  • 1 x 5/2 way valve
  • 1 x double-acting pneumatic cylinder


Requirements for the PLC:

  • 5 digital PLC inputs
  • 2 digital PLC outputs
