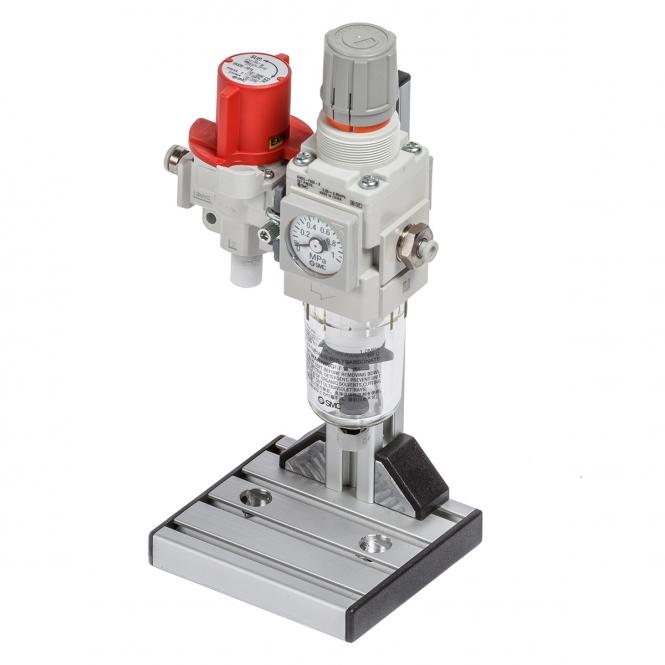

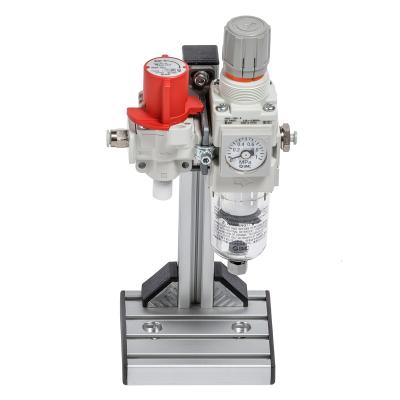

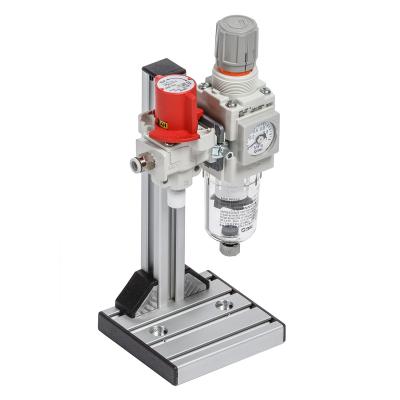

Functional Unit: Pneumatic Service Unit

Functional Unit: Pneumatic Service Unit
Assembly Kit

Item No.: 69500
Add to wish list

The maintenance unit assembly has the function of releasing or shutting off the compressed air supply for a pneumatic system. The operating air pressure is set and displayed with the service unit.

Moisture or impurities such as rust and dirt particles can lead to malfunctions. They are therefore filtered out by the assembly.

  • Work plan, technical communication
  • Assembly work
  • Preparation of compressed air for use in industrial systems
  • Design and function of electro-pneumatic systems

Functional module as mounting kit.

Delivery incl. digital media library with

  • Technical documentation
  • Assembly instructions
  • Multimedia content

Dimensions: 90 x 80 x 220 mm (L x W x H)
Operating pressure: max 16 bar
