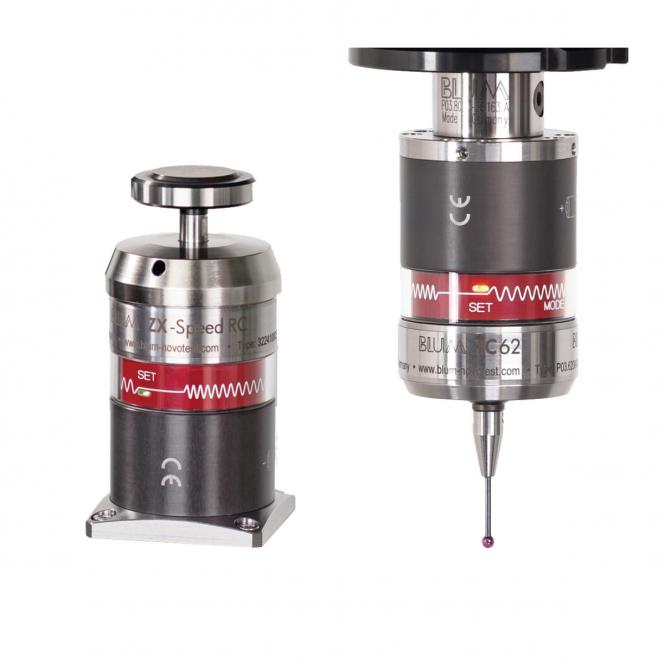

Workpiece measuring probe TC52 + ZX-Speed

Workpiece measuring probe TC52 + ZX-Speed
Contact Tool Measuring System with Infrared Transmission

Item No.: 54397
Add to wish list

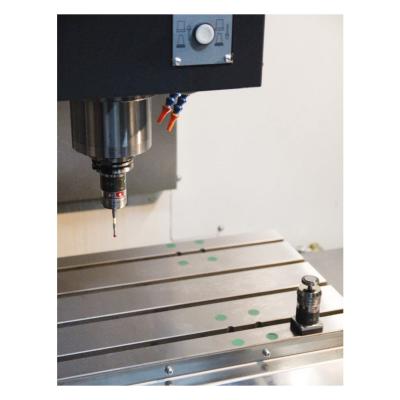

The package consists of a system for workpiece measurement and a system for tool length measurement, radius measurement and breakage control with infrared transmission.

Wear-free, optoelectronic signal generation

  • Reliable measurement of a wide range of tool types and sizes
  • Superior precision due to state-of-the-art measuring mechanism technology
  • No consequential damage in case of undetected tool breakage
  • Short amortisation period
  • 2 measuring systems selectable via IR signal
  • Long battery life
  • Compact and robust

Optoelectronic measuring unit

  • Switching signal is generated by shading a miniature light barrier
  • Wear-free signal generation
  • Enables higher measuring speeds and accuracies than comparable probes
  • Touch probe for workpiece measurement
  • Receiver system infrared transmission and wireless 3D tool probe
  • Contact tool measuring system with infrared transmission
  • Siemens licence

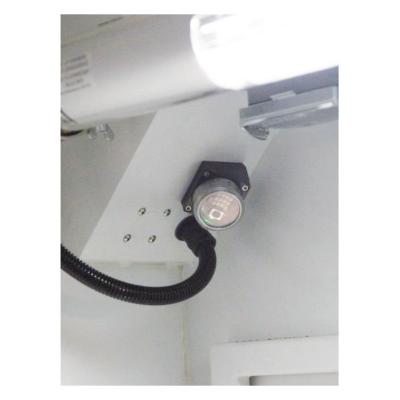

  • Infrared receiver IC56
  • Interface
