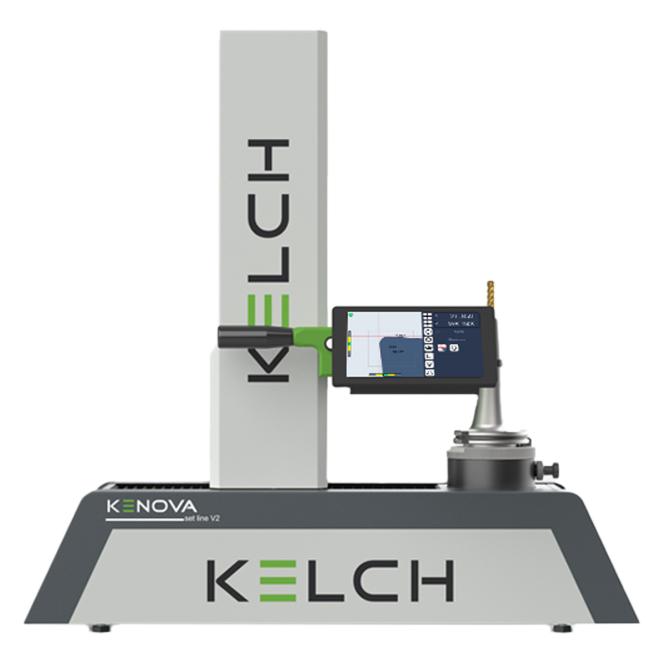

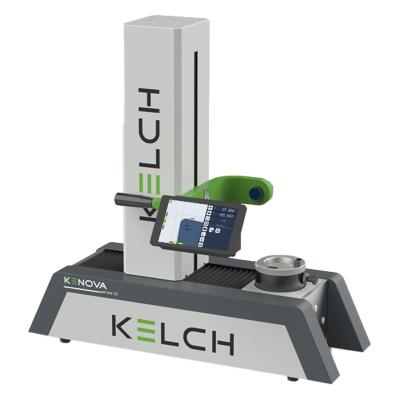

KENOVA set line V244 Smart
Tool presetter

Item No.: 105379

Add to wish list

Innovation meets efficiency. The KENOVA set line V244 is the first tool presetter on the market that works without compressed air.

Compact and robust, it is designed for tools with a diameter and length of up to 400 mm and a weight of up to 15 kg.
Thanks to its flexibility and the possibility of setting it up in different locations, it is an indispensable additional device directly at the machine tool, even in larger companies.

Vertical setting tool from the Basic Line
Measuring length X(Ø): -5 to 400 mm
Measuring length Z: 400 mm
Innovative, stable presetter with precise mechanics, intuitive control and basic holder for mounting sleeves
Long-term stable construction made from vibration-damping and thermally optimised nodular cast iron in the X and Z axes for high reliability and a long long service life of the device
Two linear guides in each axis
Precise glass scales
Innovative clamping principle of the linear axes with effortless adjustment
Basic holder for the use of mounting sleeves for all common tool holders tool holders (SK, HSK, PSC, VDI)
Covers in both linear axes to protect the measuring systems and guides
0.3 MP CMOS camera with telecentric lens and lighting
Laser pointer on the camera support to help determine which part of the tool is currently visible in the measurement image
