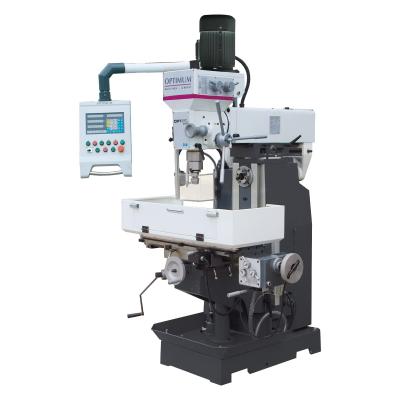

- Heavy, solid design made of high-quality vibration-absorbing gray cast iron
- Halogen machine lamp with focused beam
- Quill feed via the quill lever or with the fine feed handwheel
- Containers for horizontal milling by attaching to the back always handy
- Automatic end shutdown of the X-axis
- X-axis moves either with the handwheel or via the table feed device
- Spindle head carrier can be swiveled to the left and right by 90 °
- Oil bath gearbox with ground, hardened gear wheels
- Left-right rotation
- Coolant system
- Exact cross table, large dimensions and precise surface finish
- XY stage can be turned 45 ° on both sides
- Milling head inclinable ± 45°
Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 2270 mm |
| Height (product) approx. | 2100 mm |
| Width/depth (product) approx. | 1500 mm |
| Net weight approx. | 900 kg |
| Drilling/milling output | |
| Max. size milling head | 100 mm |
| Drilling performance steel (S235JR) | 30 mm |
| Max. size shaft milling cutter | 25 mm |
| Continuous drilling performance steel (S235JR) | 25 mm |
| Electric data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Milling table horizontal | |
| Horizontal milling table length | 1000 mm |
| Horizontal milling table width | 240 mm |
| Horizontal milling table T-groove size | 14 mm |
| Horizontal milling table T-groove number | 4 |
| Horizontal milling table max. load bearing capacity | 160 kg |
| Horizontal spindle | |
| Horizontal spindle reach | 0 – 185 mm |
| Horizontal spindle chuck | ISO 40 DIN 2080 |
| Horizontal spindle gear | 60 – 1350 min¯¹ |
| Horizontal spindle number of gears | 9 |
| Horizontal spindle drive motor output | 1.5 kW |
| Cooling lubricant system | |
| Coolant pump(s) drive power | 40 W |
| Travel | |
| Travel X axis manual | 580 mm |
| Travel Y axis manual | 200 mm |
| Travel Z axis manual | 340 mm |
| Travel X axis automativ | 500 mm |
| Vertical spindle | |
| Vertical spindle reach | 240 – 650 mm |
| Vertical spindle chuck | ISO 40 DIN 2080 |
| Vertical spindle range | 115 – 1750 min¯¹ |
| Vertical spindle number of gears | 8 |
| Vertical spindle quill stroke | 120 mm |
| Vertical spindle drive motor output normal operation | 1.1/2.2 kW |
| Feed speed | |
| X axis feed speed | 24 – 720 mm/min |
| Electrical connections | |
| Total rated value | 4.5 kW |
- Toothed rim drill chuck 1 - 16 mm / B 18
- Arbor drill chuck ISO40 / B18
- Milling spindle horizontal milling Ø 22 mm / 27 mm
- Reducing bushes ISO 40-MK 3 / ISO 40-MK 2
- T-rod vertical and horizontal
- T-nuts
- Extractor
- Operating tool
