The new OPTImill CNC milling machine F 80 - Ideal for training

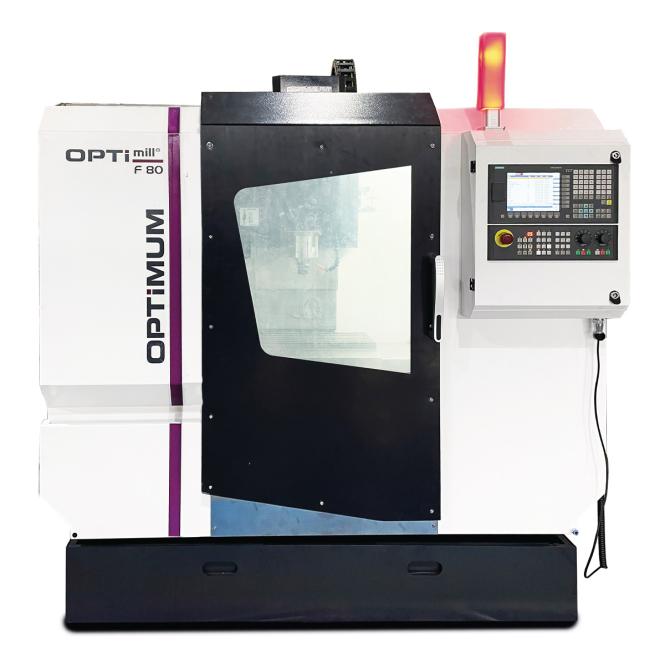

The OPTImill CNC milling machine F 80 is specially designed for use in training, fixture construction and prototyping and offers maximum precision. Thanks to its robust cast iron column design, the machine guarantees high rigidity and stability during operation. Equipped with the modern SIEMENS SINUMERIK 808D ADVANCED control system, the machine is easy and efficient to operate. The carousel tool changer with twelve tool positions and the automatic central lubrication system ensure a smooth workflow and minimise downtimes. All linear guides are fitted with stainless steel covers to ensure a long service life and protection against contamination. Thanks to the high-quality SIEMENS main spindle motor and servo drives in all axes, maximum precision is made possible by a closed control loop. A practical spindle speed of up to 10,000 min-¹ also ensures flexible machining for a wide range of materials used in training.
The integrated 12-position turret tool changer enables a wide variety of tools to be programmed and used. Tools are changed fully automatically or at the touch of a button thanks to the electro-pneumatic tool clamping device. A portable electronic handwheel fitted as standard, with enabling switch and emergency stop switch, also makes it easier to run in and test programmes manually. The automatic coolant system with an 80-litre tank ensures optimum temperature management during machining. The new OPTImill F 80 CNC milling machine also features a precisely machined and generously dimensioned milling table, which offers sufficient working space for a wide range of projects.
Generously designed access doors facilitate maintenance and cleaning, while the LED machine lighting perfectly illuminates the entire work area. This CNC milling machine is the perfect choice for users who value compact design and maximum functionality with efficient investment - as is very often required in the education sector.
Equipment highlights:

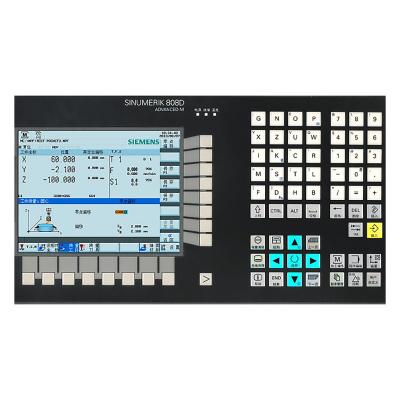

- SIEMENS SINUMERIK 808D ADVANCED control system Easy-to-operate Siemens Sinumerik 808D contouring control. 8.4’ LCD colour display with 800 x 600 resolution. USB and RJ45 communication interfaces fitted as standard. Prepared for remote maintenance. AST function (Auto Servo Tuning); enables simple optimisation for higher dynamic and accuracy requirements
- Absolute encoder / no reference run necessary
- Machine in cast iron column design for high rigidity
- Carousel tool changer with eight tool positions
- All linear guides with stainless steel covers
- Automatic centralised lubrication
- SIEMENS main spindle motor
- SIEMENS servo drive in all axes (closed control loop)
- Maximum spindle speed of 10,000 min-1

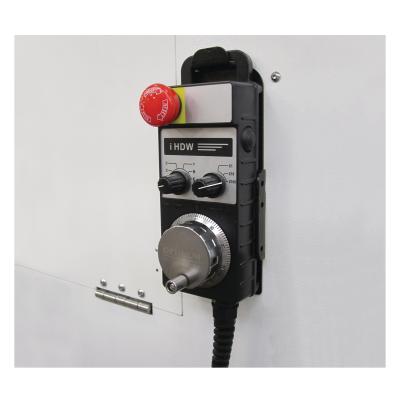

- The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programmes
- Coolant system with 80 litre coolant tank
- Tools are changed automatically or at the touch of a button (electro-pneumatic tool clamping device)
- Solid, precise milling table - generously dimensioned and precisely surface-finished
- Access doors very generously designed to minimise cleaning and maintenance time
- LED machine light for complete illumination of the work area
| Technical data | |
|---|---|
| Machine data | |
| Electrical connection | 400V / 3 Ph~ 50 Hz |
| Total connected load | 12kVA |
| Milling spindle | |
| Drive motor S1 operation | 3.7 kW |
| Torque drive motor S1 operation | 24nM |
| Drive motor S6-30% operation | 5.5 kW |
| Torque drive motor S6-30% operation | 36nM |
| Spindle holder | BT 40 |
| Coolant lubricant system | |
| Coolant pump power | 450 W |
| Tank capacity | 80 litres |
| Milling accuracy | |
| Repeat accuracy | 0.01mm |
| Positioning accuracy | |
| Tool changer | |
| Type | Carousel |
| Number of tool positions | 12 positions |
| Tool diameter max. | 95 mm |
| Tool length | 300 mm |
| Tool weight max. | 8 kg |
| Tool change time according to VDI 2852 | 7 seconds |
| **Traverse path | |
| X-axis | 450 mm |
| Y-axis | 260 mm |
| Z-axis | 450 mm |
| Feed drive | |
| Rapid traverse X-, Y-, Z-axis | 20 m/min. |
| Torque motor | |
| X-axis | 6 Nm |
| Y-axis | 6 Nm |
| Z-axis | 11 Nm |
| Speed range | |
| Speeds | 10,000 min |
| Pneumatics | |
| Air pressure | 7 bar |
| Milling table | |
| Spindle - table distance | 100 - 500 mm |
| Distance spindle - column | 370 mm |
| Table length x width | 800 x 260 mm |
| T-slot size / number / distance | 16 mm / 5 / 50 mm |
| Max. load capacity | 200 kg |
| Dimensions | |
| Length x width x height | 1,995 x 1,930 x 2,750 |
| Total weight | 2,300 kg |
