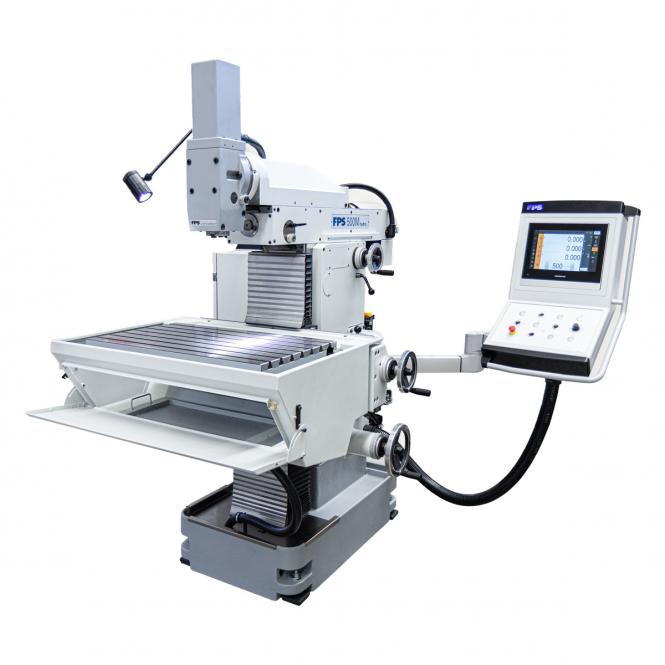

For training and industrial machining
The machine is ready to train a new generation of machining experts. In the modern manufacturing world, it is known for its user-friendliness and good ergonomics.
Uncompromising precision
The precision of this machine guarantees excellent machining results in modern training. A modern machine tool fulfils its purpose when dimensionally accurate machining is achieved effortlessly.
Accuracy down to the last detail:
- Stable, low-vibration cast construction
- Heavy-duty spindle bearings
- As standard: orientated spindle support for precise thread cutting without a compensating chuck
- The vertical spindle and the horizontal spindle are each equipped with a hydromechanical tool clamp. Tightening system SK 40 / DIN 69872 or optional DIN 2080
Built for precision
All components are manufactured in Germany - guaranteeing consistently high quality. Ground guides ensure good sliding properties and hand-scraped surfaces of the counter guides keep the oil film stable. This means a very long service life for the machine. It goes without saying that the machine offers the user the best possible handling. The working area is freely accessible and the handwheels are particularly ergonomically arranged. The simple and clear design ensures that components and functions are immediately recognisable. All working areas of the machine are easily accessible.
Easy maintenance
The machine's main units are arranged for easy maintenance with direct access at the rear. You also benefit from automatic centralised lubrication for all axes and the vertical milling head.
Heidenhain Touch Active digital display as standard
Easy-to-operate Heidenhain Positip 8016 active digital display with 12" touchscreen for position value display, dialogues, inputs and graphic functions. - Recurring work sequences can be summarised in programmes. - Programming of rectangular pockets with one cycle - Distance-to-go mode with input of the nominal position in absolute or incremental dimensions - Probing functions for reference point measurement (edge, centre line and circle centre) also optionally possible with touch probe. - Definition of programme parameters (speed, feed rate, etc.) The 3-axis digital display guarantees absolute ease of use. It enables the user to precisely position the chain dimension (incremental) and the distance dimension (absolute). The best requirements for quick success in training and simple solutions in production - even for more complex tasks.
Equipment highlights:
- Vertical milling head can be swivelled by +/- 90°, can be extended by 80 mm with quill

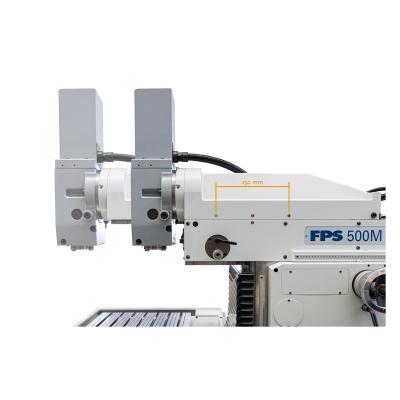

- Milling head arm can be moved by 150 mm (Y-axis)
- Heidenhain Positip 8016 Touch - Active - Digital display Easy-to-use active digital display with 12" touch screen for position value display, dialogues, inputs and graphic functions.
- Recurring work processes can be summarised in programmes. - Programming of rectangular pockets with one cycle - Distance-to-go mode with input of the nominal position in absolute or incremental dimensions - Probing functions for reference point measurement (edge, centre line and circle centre) also optionally possible with touch probe. - Definition of programme parameters (speed, feed rate, etc.)
- USB data interface for reading in and out data/programmes
- Hydraulic tool clamp for vertical spindle and horizontal spindle, hydromechanical clamping system SK 40 / DIN 69872 or optional DIN 2080
- Rigid angled table 800 x 480 mm max. load 300 kg
- Working ranges: X-axis 500 mm, Y-axis 400 mm, Z-axis 400 mm, milling head on Y-axis additionally movable 150 mm Working range X - Y increases to 500 x 550 mm
- Direct path measuring systems in all axes. Positioning accuracy 0.005 mm.
- Infinitely variable, digital feed in all axes. Feed range: 0 - 500 rpm. Rapid traverse: 1.5 m/min
- Trapezoidal thread spindles: with relieving grooved drive shaft in the Z-axis for sensitive manual operation.
- Tool holder ISO 40 DIN69871 with hydromechanical tool clamping, M16 tightening thread. Optionally according to DIN 2080
- Horizontal milling spindle
- Manual, mechanical safety handwheels with scale ring in all axes.
- Stable guides scraped in by hand
- Overload protection
- Automatic centralised lubrication for all axes and the vertical milling head
- Space-saving coolant tank integrated in the stand
- Z-axis protective bellows (standard with Christiani)
- LED machine light (standard with Christiani)
- Travelling chip tray with flaps for emptying chips incl. chip sieve (standard with Christiani)
- Machine feet can be levelled (standard with Christiani)
- Incl. commissioning and brief instruction in Germany (electrical connection and transfer required)
| Technical data | |
|---|---|
| Working range | |
| X-axis | 500 mm |
| Y-axis | 400 mm |
| Z-axis | 400 mm |
| Milling head additionally movable on the Y-axis | 150 mm |

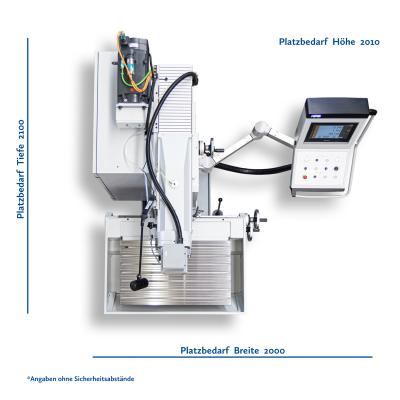

| Space requirement W x D x H | 2000 x 2100 x 2010 mm |
| Rigid angle table | |
| Table surface / clamping surface | 800 x 480 mm |
| T-slots: Number/width/spacing | 7/ 14 H7 +14 H7 centre groove/ 63 mm |
| Permissible load | 300 kg |
| Work spindle | |
| Vertical and horizontal | horizontal (optional) |
| Vertically extendable as drilling quill, with clamping/stroke | approx. 80 mm |
| Horizontally extendable as drilling quill (optional), with clamping/stroke | approx. 100 mm |
| Milling head can be swivelled manually | +/- 90° |
| Tool holder | |
| Manual tightening system | DIN 69872 |
| or optional equipment variant | DIN 2080 |
| Main drive three-phase AC brake motor | |
| Power | 7,0 KW |
| Gear stages (clockwise and anti-clockwise rotation) | 8 |
| Speed range | 25 to 3000 rpm (infinitely variable) |
| Feed drive Digital drive | |
| Infinitely variable feed speed | 5 to 500 mm/min |
| Rapid traverse | 1500 mm/min |
| Handwheel rotation | X-axis 4.0 mm; Y-/Z-axis 2.5 mm |
| Connection | |
| Mains connection | 3 x 400 V AC50/60Hz |
| Power consumption | 7 kVA |
| Max. Back-up fuse | 35 A NH |
| Control cabinet electronics | |
| CE-compliant in accordance with the current regulations of the employers' liability insurance associations | BGVA 3 / DIN-EN 60204-1 |
| Weight | |
| Total weight of the machine incl. work table, milling head and switch cabinet | approx. 1600 kg |
