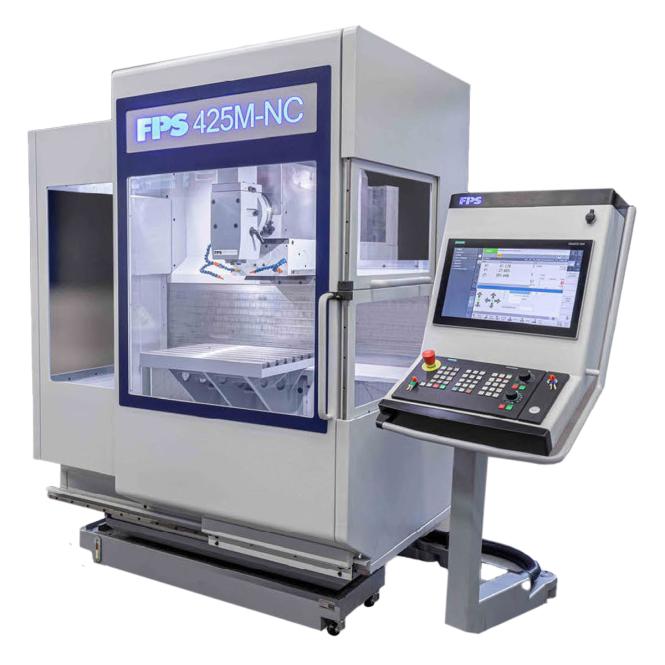

The new all-rounder in your training
Equipped with the latest technology from Siemens - the easy-to-operate Sinumerik One contouring control with NCU 1740, ShopMill, TFT colour flat screen 19" multi-touch screen. The digital native CNC control! The next stage of digital transformation includes the digital twin as an integral part of the CNC.
Linear roller guides enable very high dynamics and speed in the X and Z axes, while wide sliding guides in the Y axis ensure maximum stability. The familiar and proven quality of the new Dualmaster series guarantees the ideal complement for your training. The dual guideway system combined with the latest control and drive technologies from Siemens make the machine a flexible all-rounder.
From the first to the last step
Especially in training - the Dualmaster series accompanies you as a hybrid machine from the first step to the last processing step. It fulfils all requirement levels from manual operation with optional handwheels to CNC milling with state-of-the-art, high-performance control. This makes the M-NC Dualmaster ideal for professionals and complex challenges. The intuitive operation, enlarged working area and improved ergonomics increase efficiency and motivation. The full safety cabin guarantees maximum work safety and emission protection.
Built for precision

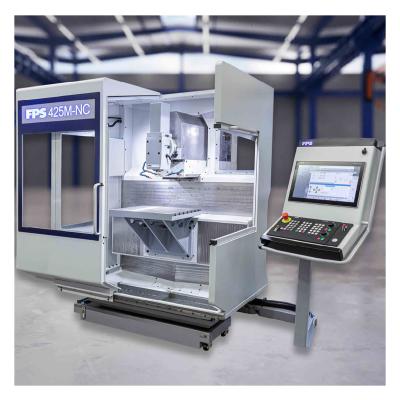

All components are manufactured in Germany - guaranteeing consistently high quality. Ground guides ensure good sliding properties and hand-scraped surfaces of the counter guides keep the oil film stable. This means a very long service life for the machine. It goes without saying that the machine offers the user the best possible handling. The working area is freely accessible. The simple and clear design ensures that components and functions are immediately recognisable. All working areas of the machine are easily accessible. A number of additional options are available on request to make the machine even more versatile for training purposes.
Easy maintenance
The machine's main units are arranged for easy maintenance with direct access at the rear. You also benefit from automatic centralised lubrication for all axes and the vertical milling head.
-

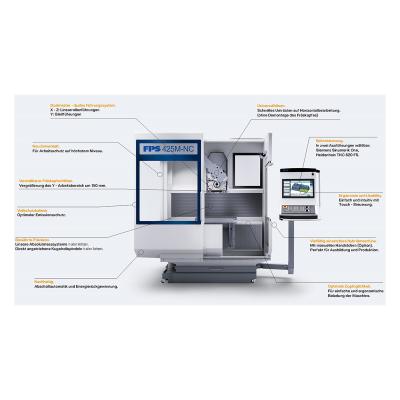

Siemens Sinumerik One with NCU 1740 Easy-to-operate Siemens Sinumerik One path control system. TFT colour flat screen 19" multi-touch screen ShopMill, DIN/ISO and CNC high-level language under Sinumerik Operate. Block processing time: 0.60 ms
-
Hydraulic tool clamp The vertical spindle and the horizontal spindle are each equipped with a hydromechanical tool clamp. Tightening system SK 40 / DIN 69872 or optional DIN 2080
-
Foot switch (standard with Christiani) for releasing and clamping the tool Enables two-handed removal of the tool
-
Multiple ribbed cast construction for full working capacity within the entire working range.
-

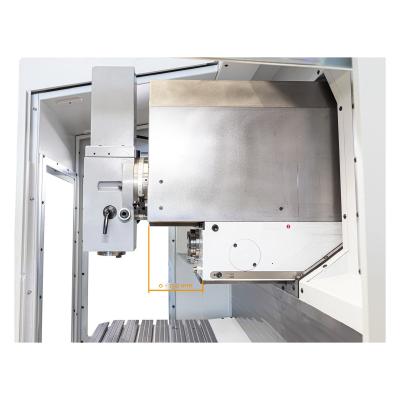

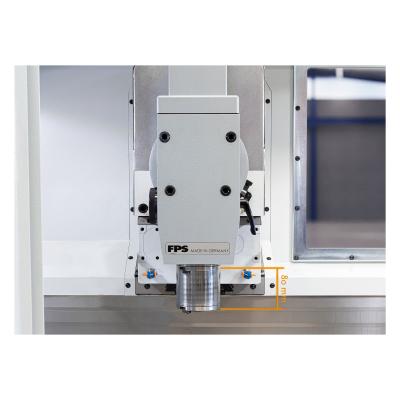

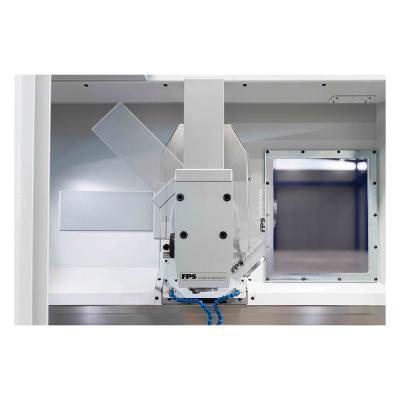

Vertical milling head can be swivelled by +/- 90°, can be extended by 80 mm with quill
-
Heidenhain direct absolute measuring systems in all axes
-
Wear-free, directly coupled digital drives, infinitely variable for all axes
-
Controlled main spindle motor
-
Oriented spindle stop as standard with tapping cycle without compensating chuck
-
Horizontal milling spindle (standard with Christiani)
-
Milling head arm adjustable by 150 mm (Y-axis)
-
Milling machine type changeover (standard with Christiani) Machine type changeover Switchover to the machine type via key switch "Manually controlled milling machine". When the cabin is open, the "Manual mode" and the electronic handwheel can be used.
-
Electronic handwheel (series by Christiani) Portable, cable-connected, electronic handwheel with machine function keys.
-
Fixed angle table 630 x 470 mm max. load 350 kg
-
Working ranges: X-axis 425 mm, Y-axis 450 mm, Z-axis 400 mm, milling head on Y-axis additionally movable 150 mm Working range X - Y increases to 425 x 600 mm
-
Automatic centralised lubrication for all axes and the vertical milling head
-
Fully protected cabin with LED work area lighting
-
External coolant unit (mobile) - 80 litres
-
Machine feet can be levelled (standard with Christiani)
-
Incl. commissioning and brief instruction in Germany (electrical connection and transport provided) (standard with Christiani)
| Technical data | |
|---|---|
| Working range | |
| X-axis | 425 mm |
| Y-axis | 450 mm (600mm) |
| Z-axis | 400 mm |
| Milling head additionally movable on the Y-axis | 150 mm |

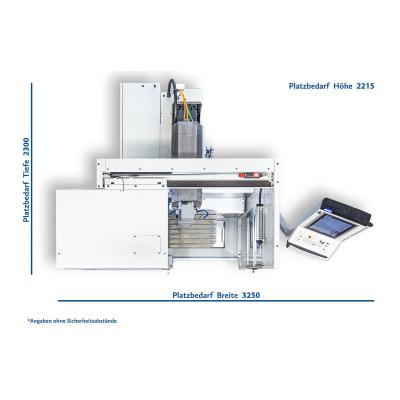

| Space requirement W x D x H | 3250 x 2300 x 2215 mm |
| Rigid angle table | |
| Table surface / clamping surface | 630 x 470 mm |
| T-slots: Number/width/spacing | 6/ 14 H7 +14 H7 centre groove/ 63 mm |
| Permissible load | 350 kg |
| Work spindle | |
| Vertical and horizontal | horizontal (optional) |
| Vertically extendable as drilling quill, with clamping/stroke | approx. 80 mm |
| Horizontally extendable as drilling quill (optional), with clamping/stroke | approx. 100 mm |
| Milling head can be swivelled manually | +/- 90° |
| Tool holder | |
| Manual tightening system | DIN 69872 |
| or optional equipment variant | DIN 2080 |
| Main drive three-phase AC brake motor | |
| Power | 7,5 / 13,7 KW |
| Torque | 120 / 243 Nm |
| Speed range | 25 to 5000 rpm (infinitely variable) |
| Feed drive Digital drive | |
| Infinitely variable feed speed | 5 to 10000 mm/min |
| Rapid traverse | 10000 mm/min |
| Handwheel rotation | X-/Y-/Z-axis, machine features |
| Connection | |
| Mains connection | 3 x 400 V AC50/60Hz |
| Power consumption | 18,7 kVA |
| Rated current | 25 amp |
| Max. Back-up fuse | 50 A NH |
| Control cabinet electronics | |
| CE-compliant in accordance with the current regulations of the employers' liability insurance associations | 2006/42 EG |
| Weight | |
| Total weight of the machine incl. work table, milling head and switch cabinet | approx. 2610 kg |
