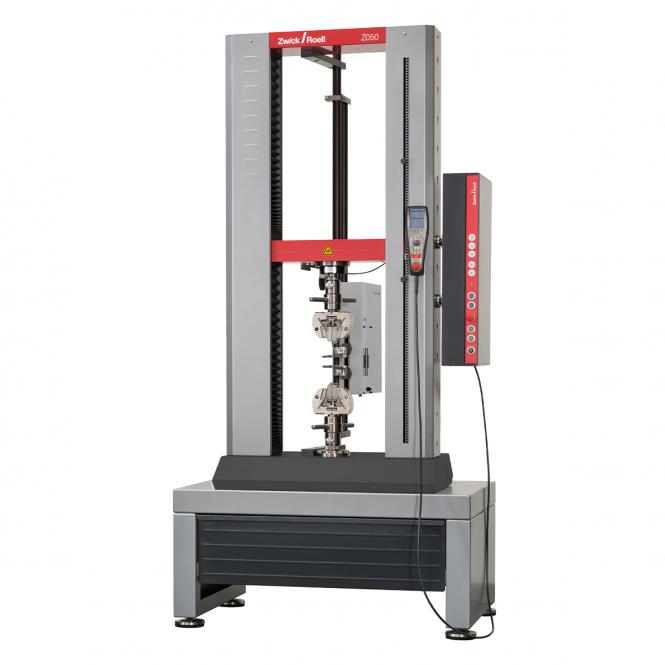

Material Testing Machine ZwickRoell ProLine 20kN
The ProLine is the ideal testing machine for functional tests on components and standard tests on materials. In combination with the intuitive testing software, the ProLine materials testing machine is quick and very easy to operate. All test specifications can be used. The ProLine, including all mechanical, electronic and software components and the extensive range of accessories, are ideally matched to each other.
Features:
The ProLine is available in various test speeds, the speed is independent of the test force. In order to compensate for heavy test fixtures, test loads of up to 110% of the nominal machine load are also permitted. The ProLine is available for test loads up to 20 kN and with a test area height of 1050 mm. The ProLine is operated and supplied with a standard PC and does not require a special additional card.
**The ProLine machine is also available in other versions. We would be happy to advise you individually **.
ProLine 20 kN materials testing machine
- For performing tensile, compression, flexure and component tests
- Innovative testControl II measurement and control electronics
- When you purchase the materials testing machine, you receive the all-in suite of testXpert III testing software free of charge --> Requirement: The machine is used exclusively for training purposes
- Nominal force 20 kN
- High testing speed (0.0005 ... 500 mm/min) throughout up to the nominal force
- 6 slots, of which 2 module bus slots and the PCIe slot are already activated as standard
- Innovative EtherCat interface for connecting extensometers
- Precise column guidance
- Maintenance-free AC drive motor
Base for ProLine Z005 to Z020
- For setting up the testing machine at an ergonomic operating height
- Height 636 mm
- With drawer for loads up to 50 kg
Xforce P load cell
- High-precision load cell with large measuring range
- Axis-symmetrical design principle, therefore low sensitivity to parasitic influences (shear forces, bending/torsional moments)
- Robust and stable, designed for use up to 150% of the nominal force
- Unique electronic identification system
Wedge sample holder
- Simple, safe and quick to use, robust clamping system
- Designed for use in a wide temperature range
- Suitable for a wide range of materials
- Fmax 20 kN, opening width 12.5 mm
- Self-clamping due to wedge action
- Including jaws, scale grid 0.75 mm
- Height x width = 50 x 60 mm
- Temperature range -40...+250°C
- Scope of delivery: 2 pieces
Clip-on extensometer
Clip-on extensometer 8040-1
- for testing metals
- Ideal for "closed loop" strain rate control in accordance with ISO 6892-1 (2009) method A (1) on metal
- One-sided strain gauge measuring system
- Accuracy class 0.5 according to EN ISO 9513 up to 24 mm measuring travel
- Accuracy class 1 according to EN ISO 9513 up to 40 mm measuring path
- Initial measuring length 80 mm
- Measuring path for tensile tests 40 mm
- Measuring path for compression tests 5 mm
- Temperature range -70...+200 °C
- Round specimens up to 15 mm diameter
- Flat specimens up to 15 mm thick, 30 mm wide
- Overall height: 90 mm
- Weight 118 g
DCSC module, DC voltage measuring amplifier
- For connecting ohmic measuring bridge transducers (strain gauge full bridge sensors) with a nominal characteristic value (sensitivity of 2 mV/V)
- 4 and 6-wire technology
- 24 bit calculated resolution
Testing Software testXpert III
- The integrated user administration only allows the user to perform actions that are relevant to the respective user role.
- Intelligent wizard for configuring all test-relevant settings.
- Repeatable test conditions and verification of the connected sensors for reliable test results.
- Contains testXpert III basic programme in German
- Contains testXpert III All-In-Suite
- Includes all standard test programs, master test programs and the graphical sequence editor available at the time of delivery, as well as other options
CE mark and documentation
- CE marking and declaration of conformity (series products) in accordance with EC Machinery Directive 2006/42/EC
- Documentation in German on paper and CD
Personal computer and accessories
- Suitable PC with 23" screen for operating the software
- Windows 64bit operating system pre-installed on PC
Demo samples
- 50x material samples for tensile test
| General technical data for the ProLine | |
|---|---|
| Load frame | |
| Paint work | RAL 7021 black grey/stainless steel metallic, RAL 3031 orient red |
| Ambient temperature | +10 ... +35 °C |
| Relative humidity (non-condensing) | 20 ... 90 % |
| Conformity | ISO 9000 and CE |
| Drive system | |
| Motor | AC servo motor |
| Motor holding brake | yes |
| Control, setpoint specification | Digital (real-time Ethernet, EtherCAT®) |
| Controller | adaptive |
| Cycle time | 1000 Hz |
| Positioning repeat accuracy (without direction reversal) | ±2.0 μm |
| Connection values of the mains input | |
| Mains connection | 230 V, 1Ph/N/PE |
| Permissible mains voltage fluctuation | ±10 % |
| Mains frequency | 50/60 Hz |
| Machine electronics | |
| Number of available slots for measuring and control modules: | |
| synchronised module slots | 2 (expandable to 5)1) |
| synchronised PCIe slots | 1 |
| Force measurement | class 0.5/1 depending on force transducer, in accordance with DIN EN ISO 7500-1, ASTM E4 |
| Measuring range | up to 165 % of Fmax |
| Calculated resolution (e.g. force transducer in tension/compression direction) | 24 bit |
| Effective resolution in tension/compression direction: | |
| DCSC module | 19 bit (corresponds to ±524,000 points) |
| USC module | 20 bit (corresponds to ±1,000,000 points) |
| Measured value acquisition rate | 400 kHz |
| Measured value transmission rate to PC | 500 (optionally 2000) Hz |
| Zero point correction | automatic at start of measurement |
| Measurement signal runtime correction | yes |
| Interface to PC | Ethernet |
| Eco mode | yes (time adjustable) |
| CE conformity | yes, in accordance with Machinery Directive 2006/42/EC |
- A DCSC module is included in the scope of delivery (occupies one module slot).
| Specific technical data for ProLine 20kN | |
|---|---|
| Test force | |
| Test force Fmax | 20 |
| Test space | |
| Height (dimension P) | 1050 1) |
| Height, travelling distance of the moving crosshead | 980 1) |
| Width | 440 |
| Load frame | |
| Dimensions | |
| Height with levelling elements | 1340 ... 1345 |
| Width | 770 |
| Width with machine electronics | 917 |
| Depth with machine electronics | 439 |
| Weight with machine electronics | 135 |
| Connection, bolt | Ø 36 |
| Average sound pressure level at vmax measured at a distance of 1 m from the front of the machine | 58 |
| Drive | |
| Traverse speed vmin ... vmax | 0.0005 ... 500 |
| Traverse return speed, max. | 750 2) |
| Deviation from the set drive speed, max. | 0.05 |
| Travel resolution of the drive | 0.0115 |
| Connection values of the mains input | |
| Mains connection | 230 |
| Power consumption (full load) | 800 |
- Height of the (lower) test area without fixtures
- Values are valid for machines with a closed safety door in automatic mode and for machines without a safety guard. For machines with the safety door open, the speed is reduced to 600 mm/min.
