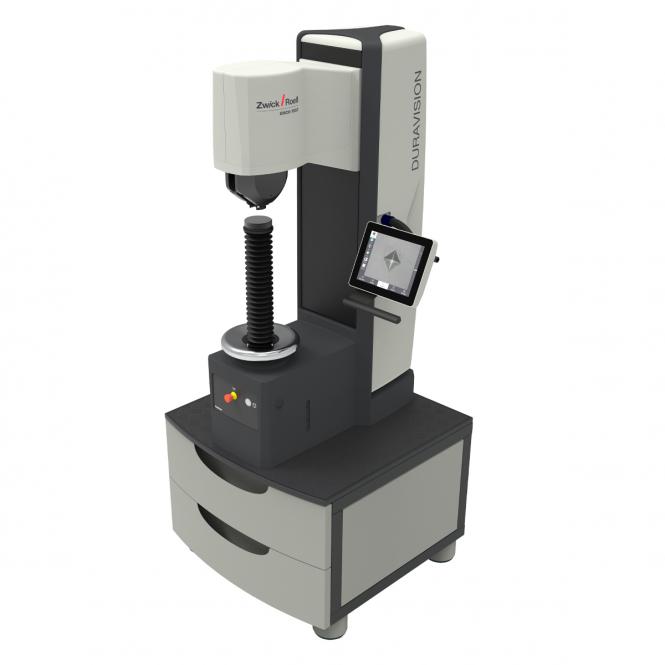

DuraVision 20G5
The DuraVision G5 hardness testing machine is characterised by its robust construction and outstanding precision. They are ideally suited for use in a training environment. The hardness tester covers an extremely wide standard load range from 0.3 to 250 kg. A wide range of test methods are possible: Brinell, Vickers, Rockwell according to EN ISO and ASTM as well as carbon tests.
Features:
- Standardised hardness testing according to Brinell, Rockwell, Vickers, Knoop
- Quick and easy specimen feed thanks to large handwheel
- LED test area lighting for difficult lighting conditions
- Particularly suitable for small components
- Customisable thanks to various options and accessories
The Duravision hardness testing machine is also available in other versions. We would be happy to advise you individually.
Hardness testing machine
- Torsionally rigid grey cast iron base body for main load range
- 0.3 kg - 250 kg (2.94 N - 2,452.5 N)
- PLC measurement and control electronics for monitoring the load application with automatic test load change and manual table height adjustment via handwheel
- High-resolution 10MPix camera for 3-step zoom
- Motorised swivelling 2-position star turret incl. 1 objective and 1 indenter adapter
- Removable clamping jaws with clamping inserts enable unclamped and clamped tests
- High-performance LED incident light illumination
- Capacitive 10" touch display with LED backlight
- Integrated PC with Win 10 IoT 64-bit and 128 GB SSD memory
- Interfaces: 4x USB 3.0, 1x Displayport, 1x HDMI, 1x Ethernet
Base / tool cabinet ZRG
- for seated and standing use
- max. workpiece weight 500 kg
- Dimensions (WxHxD): 840 mm x 620 mm x 850 mm
ecos Workflow Touch basic operating software
- Activation of all ecos Workflow Touch test methods
- ecos IMAGE for fully automatic, standardised image evaluation by Vickers, Knoop and Brinell
- Automatic brightness control and autofocus with statistics and test report function
- ecos templates for frequently used settings ecos CODE for reading and creating QR codes
- ecos EXPORT EDITOR for customising export data (format: PDF, Excel, XML, CSV)
- User administration for customising access rights in ecos Workflow Touch
- ecos xChange - standardised data interface for bidirectional data connection (ERP, CAQ)
- ecos Workflow Calibration Information System
- ecos CHD MANUELL for creating manual Chd, Nht, Rht and series measurements with inspection coordinates
- ecos Fracture software module for testing the fracture toughness of hard metals and ceramic materials in accordance with Palmqvist ISO 28079 and Nihara ISO 14627
Test methods
- Test method HRC
- Test method HV 10
- Test method HBW 2.5/187.5
Lenses
- Objective 5x with Brinell SmartLight evo incl. adapter for star turret for better evaluation of Brinell indentations (for DV 20/30/200/300/250/350 G5)
- G5 - objective 10x
- G5 - objective 20x
- Objective adapter for star nosepiece
Indenter and adapter
- Rockwell test diamond with certificate (EN ISO) Length 28 mm, diameter 6.5 mm
- Ball holder 28 mm length, diam. 6.5 mm with 2.5 mm ball pressed in with certificate (EN ISO)
- Vickers test diamond with certificate (EN ISO) for >= HV 5, length 28 mm, diam. 6.5 mm
- Adjustable indenter adapter for star turret (2x)
Hardness test plates
- HR - hardness reference block according to ISO 6508-3 & ASTM E18
- Size diameter: 64mm x 15mm
- Hardness: HRC 55
- HV - hardness reference block according to ISO 6507-3 & ASTM E92
- Size diameter: 64mm x 15mm
- Hardness: 550 HV 10
- HBW - hardness reference block according to ISO 6506-3 & ASTM E10
- Size rectangle: 150mm x 125mm x 16mm
- Hardness: 400 HBW 2.5/187.5
| Technical data for the DuraVision 20 G5 | |
|---|---|
| Load range | 2.942-2452 N (0.3 - 250 kg) |
| Resolution of test force application | 0.45 nm |
| Length measuring probe resolution | 0.05 μm |
| Dimensions (width x height x depth) | 380 mm x 1400 mm x 830 mm |
| Weight | 420 kg |
| Max. Test height | 400 mm |
| Electrical connection (adjustable) | 110 ... 230 V (PH,N,PE) |
| Mains frequency | 50/60 Hz |
| Power consumption | 120 W |
| Test table | Ø 90 mm |
| Resolution evaluation camera | 10 Mpix with CMOS sensor |
| Room temperature (according to ISO/ASTM) | +5°C to +40°C |
| Humidity | max. 70% (non-condensing) |
| Operating system | Windows 10/64 bit |
| Max. Workpiece weight | 200 kg |
| Protection class EN 60529 | IP20 |
| Integrated memory (SSD) | 128 gb |
