Electrode Inverter PRO-STICK 161

Electrode Inverter PRO-STICK 161

Item No.: 33491
Add to wish list
  • Automatic hotstart
  • Automatic Arc Force
  • Integrated anti-stick function
  • Intelligent ignition management
  • Ultra-modern inverter device
  • Generator compatibility
  • Fully insulated
  • Ultra-compact and lightweight design

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.

Dimensions and weights
Length (product) approx. 280 mm
Height (product) approx. 140 mm
Width/depth (product) approx. 125 mm
Net weight approx. 2.3 kg
Setting range
Setting range electrode 5 - 150 A
Duty cycle
Duty cycle at Imax. 40°C electrode 20 %
Electric data
Supply voltage 230 V
Mains frequency 50 Hz

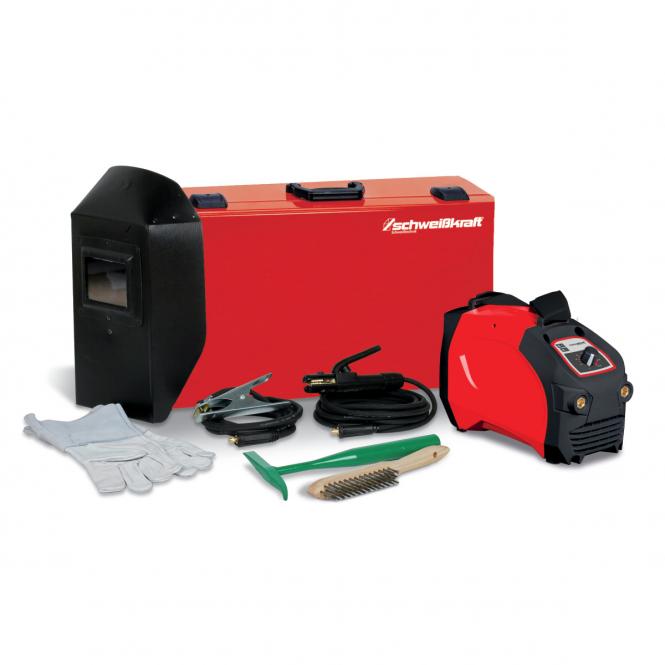

  • PRO-STICK 161
  • Carrying case
  • 5 m welding cable 16 mm² with electrode holder
  • 3 m ground cable 16 mm² with ground terminal 200A
  • Hand protection shield with welding glass
  • Welding Gloves
  • Chipping hammer
  • Wire brush
