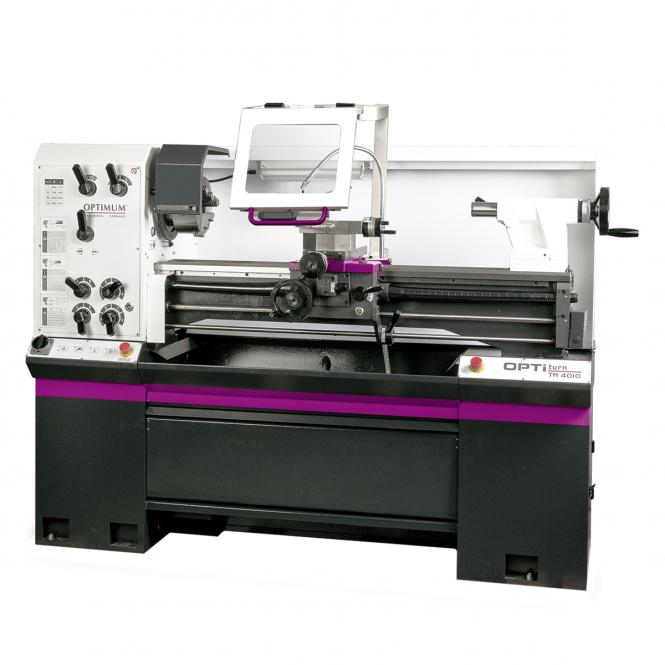

- Hardened and ground Z-axis guideway
- Spindle mount Camlock DIN ISO 702-2 No. 5
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Gears and shafts hardened and ground, running in an oil bath in precision bearings
- Tailstock with hardened and ground quill
- DC 24 Volt - electrics
- All gears of the feed gear made of steel, hardened and ground, shafts on needle bearings All components are lubricated in an oil bath
- Right / left rotation on bed sled switchable
- Safety handwheels with release function in the X and Z axis
- Emergency stop device
- Perfectly concentric Main spindle guarantees high load capacity thanks to mounted precision tapered roller bearings
- Hinged chip compartment for easy chip removal from the front
- Machine base in stable steel construction
- Coolant pump with coolant reservoir and level indicator. Removable container for easy cleaning
- With safety device against simultaneous operation of threading and feed mechanism
- Handwheels, decoupled and tested to EN 23125
- Switch with life cycle calculation tested according to EN ISO 13849
- LED machine lamp in chip protection
- Motor electrically braked
- Three-jaw chuck O 200 mm, No. 5 in the standard scope of delivery
- User-friendly membrane keyboard
- Two-channel right-left switch, tested to EN 23125
- Digital position indicator DPA21
Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1950 mm |
| Height (product) approx. | 1530 mm |
| Width/depth (product) approx. | 820 mm |
| Net weight approx. | 767 kg |
| Work areas | |
| Explanation Swing diameter above planing slide | Please note that when installing third-party lathe chucks or faceplates to achieve the specified technically possible turning diameter, operator modifications are required. |
| Max. height | 200 mm |
| Max. width | 1000 mm |
| Swing diameter above machine bed | 400 mm |
| Swing diameter above planing slide | 250 mm |
| Speed range | |
| Number of gears | 8 |
| Speed range | 70 – 2000 min¯¹ |
| Electric data | |
| Drive motor output | 2.2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Cooling lubricant system | |
| Cooling lubricant system coolant pump output | 100 W |
| Spindle | |
| Spindle chuck | Camlock DIN ISO 702-2 No. 4 |
| Spindle bore/rod passage diameter | 53 mm |
| Tailstock | |
| Tailstock chuck | 50 mm |
| Tailstock quill stroke | 110 mm |
| Pitches | |
| Metric pitch | 0.4 – 7mm/rev |
| Imperial pitch | 56 – 4Threads/1" |
| Travel | |
| Travel X axis | 98 mm |
| Travel Y axis | 185 mm |
| Feed | |
| Longitudinal feed range | 0.014 – 0.38mm/rev |
| Flat feed range | 0.052 – 1.392mm/rev |
| Tool clamping | |
| Tool holder chuck size | 30 mm |
| Electrical connections | |
| Total rated value | 2.3 kW |
- Three-jaw lathe chuck Ø 200 mm, no. 5
- Quick change tool holder 3-E
- Fixed steady 7 - 102 mm
- Travelling steady 10 - 60 mm
- Reduction sleeve MT 4 - MT 6
- Fixed centre MT 4
- Machine initially filled with premium grade oil
- Operating tool
