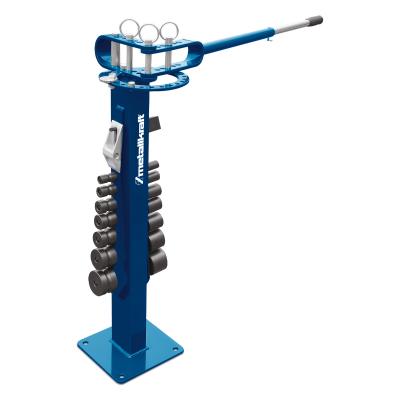

Universal Bending Machine UB 10

Universal Bending Machine UB 10
for angular, round and spiral bending of flat and square material

Item No.: 94140
Add to wish list
  • Cold bending up to an angle of 180 °
  • Adjustable bending angle stop for high repeat accuracy
  • With the option UB 11 also for bending spirals
  • With screw-on base for the workshop
  • Easy to transport, ideal for workshop, on assembly and in service trolley
  • Removable bending unit, with optional clamping plate can also be used on a vice

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

General Information
Pipe diameter imperial G 3/4"
Dimensions and weights
Length (product) approx. 325 mm
Height (product) approx. 1010 mm
Width/depth (product) approx. 1100 mm
Net weight approx. 32 kg
Bending performance
Bending capacity flat steel 10 x 50 mm
Bending capacity flat steel bending radius 3 mm 6 x 50 mm
Bending capacity solid material round steel/aluminium/copper 16 mm
Bending capacity solid material round stainless steel 14 mm
Bending capacity solid material square steel/aluminium/copper 16 x 16 mm
Bending capacity solid material square stainless steel 14 x 14 mm
