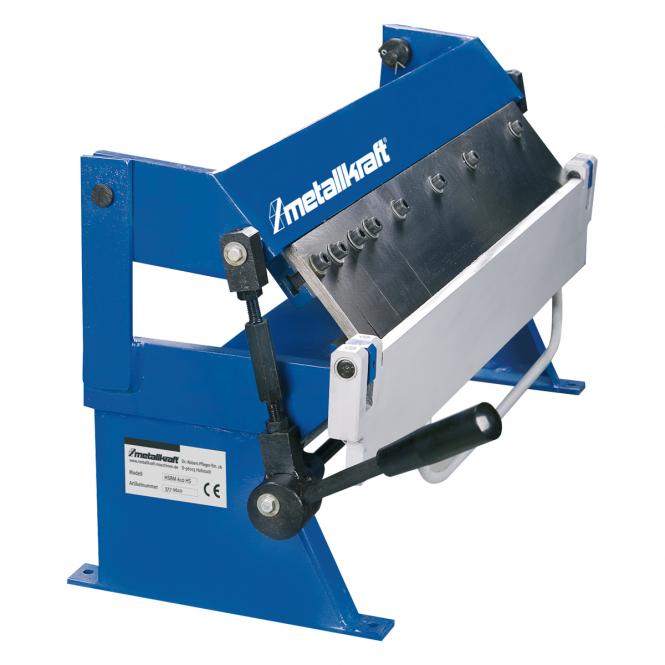

Manual Folding Machine HSBM 610 HS

Manual Folding Machine HSBM 610 HS

Item No.: 95631
Add to wish list
  • Inexpensive beginner models for craftsmen
  • Simple design and solid construction ensure accurate work
  • Secure fixing of the workpiece via clamping device

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

  • Segmented upper cheek
  • Ideal for the production of all profiles up to all around edged boxes
  • Fast, user-friendly adjustment of the upper beam via eccentric
  • Upper beam for high U-profiles
  • Swivel bending over bow handle
  • Easy to transport
General Information
Max. working width 610 mm
Max. bending angle 135°
Segmentation 25-50-75-205-255 mm
Dimensions and weights
Length (product) approx. 850 mm
Height (product) approx. 420 mm
Width/depth (product) approx. 360 mm
Net weight approx. 42 kg
Max. sheet thickness
Max. sheet thickness steel 400 N/mm² 1.0 mm
