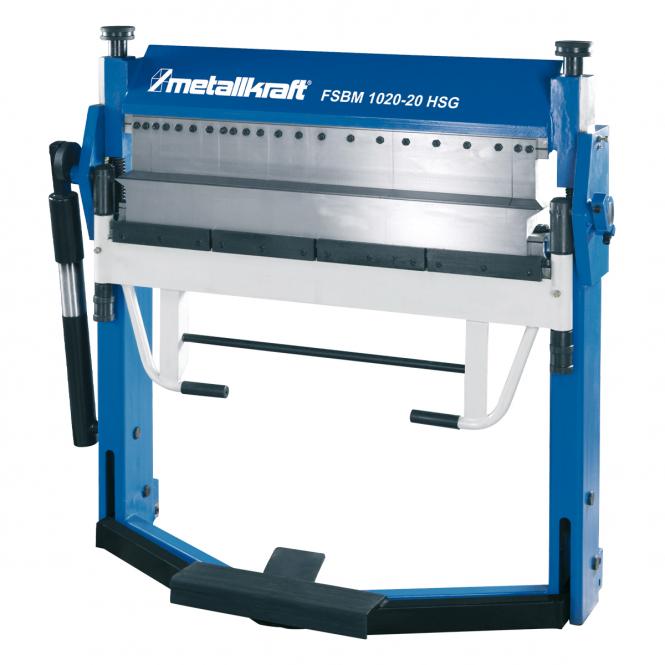

Manual Folding Machine FSBM 1020-20 HSG

Manual Folding Machine FSBM 1020-20 HSG
with workpiece clamp by foot pedal

Item No.: 93055
Add to wish list
  • The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
  • Different tool variants available E, S2, HS2 and HSG
  • The powerful auxiliary cylinder facilitates bending
  • Next passage between top and bottom cheek of up to 25 mm
  • Self-lubricating plain bearings
  • Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
  • Adjustment of material thickness by means of knurled screw
  • Adjustable stop for bending angle

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

  • With segmented gooseneck tools, segmented bending bar and segmented bed support
  • Segments have a hardness of HRC24-26
General Information
Max. working width 1020 mm
Max. bending angle 150°
Segmentation 25-30-35-40-45-50-75-100-150-200-270 mm
Dimensions and weights
Length (product) approx. 1280 mm
Height (product) approx. 1200 mm
Width/depth (product) approx. 620 mm
Net weight approx. 360 kg
Max. sheet thickness
Max. sheet thickness steel 235 N/mm² 2.0 mm
Max. sheet thickness aluminium 2.4 mm
Max. sheet thickness stainless steel 1.2 mm

Notes:

  • Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
  • Bending capacity VA: factor 0.75
  • Bending capacity aluminum: factor 1.2
  • Hardened top tools are required to bend VA

Variants
