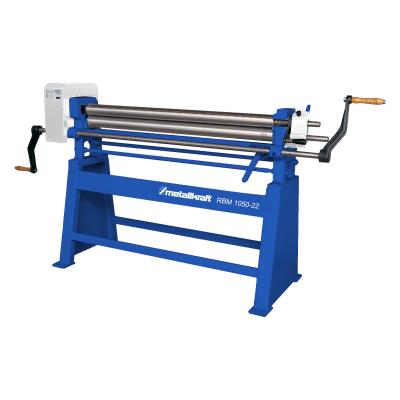

Manual Bending Machine RBM 1050-22

Manual Bending Machine RBM 1050-22
Asymmetrical with three rollers

Item No.: 69938
Add to wish list
  • Heavy and stable cast iron construction
  • Asymmetric 3-roller system for easy pre-bending
  • Swing-out top roller
  • Roller drive via hand crank
  • Suitable for bending wires with the diameters 3, 5 and 8 mm
  • Quick clamping of the sheet metal by means of a lever

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

General Information
Max. working width 1050 mm
Top roller diameter 75 mm
Dimensions and weights
Length (product) approx. 1400 mm
Height (product) approx. 1160 mm
Width/depth (product) approx. 700 mm
Net weight approx. 300 kg
Bending performance
Max. pre-bending performance in steel 400 N/mm² 2.0 mm
Min. bending diameter 115 mm

Variants
