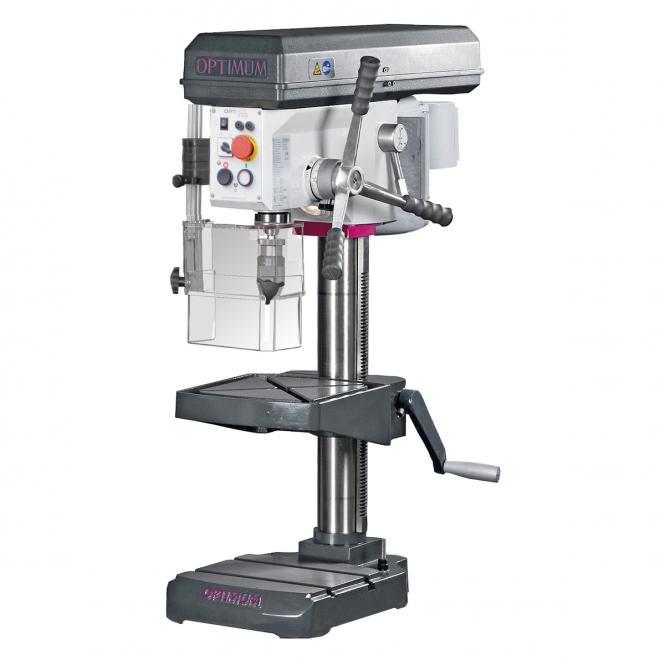

- Smooth and powerful industrial electric motor
- Separate emergency stop impact switch
- Stable casting column
- Depth stop
- Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
- Drilling table 360 ° rotatable
- V-belt cover with safety switch
- V-belt quick-clamping device
- Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
- Massive, large base plate with grooves, strongly ribbed on the back
- By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
- Guaranteed concentricity measured better than 0.015 mm in the drill quill
- Drill spindle with precision ball bearings
- High-quality OPTIMUM keyless chuck in the standard scope of delivery
- Large, height-adjustable protective screen with safety switch
- Set including BMS 100 machine vice
Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!
Our products are designed for the European market and meet CE requirements. For international use, regional regulations apply which must be observed. The usability of the products shown must therefore be checked in advance.
| Dimensions and weights | |
|---|---|
| Column diameter | 80 mm |
| Length (product) approx. | 665 mm |
| Height (product) approx. | 998 mm |
| Width/depth (product) approx. | 434 mm |
| Net weight approx. | 92 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 24 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
| Drilling table workspace length | 280 mm |
| Drilling table workspace width | 300 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table rotation | 360 ° |
| Drilling table angle | 45 ° |
| Max. distance spindle - drilling table | 515 mm |
| Speed range | |
| Speed range | 350 – 4000min¯¹ |
| Number of gears | 7 |
| Speed control | manually |
| Electric data | |
| Mains frequency | 50 Hz |
| Supply voltage | 400 V |
| Machine base | |
| Max. distance spindle - machine base | 590 mm |
| Machine base workspace length | 280 mm |
| Machine base workspace width | 260 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 85 mm |
| Spindle chuck | MT 2 |
| Reach | 165 mm |
- Keyless chuck (1 - 16 mm)
- Morse taper MK2 / B16
- T-nuts
- Machine vice BMP 100
