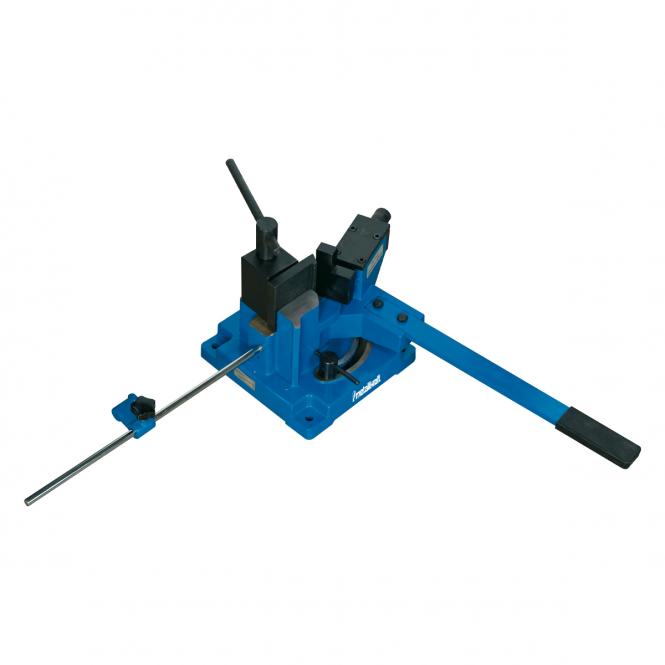

Angle Bender WB 100

Angle Bender WB 100

Item No.: 93054

Add to wish list

For accurate cold and hot bending of flat, round and square steels
Stable design for screwing on the workbench
Holes in the cast bed for fixing on the workbench
Infinitely adjustable bend stop
With eccentric quick-release for efficient work
Bending angle up to 120 °
High repeat accuracy due to bending angle stop
Ideal for repair shops and locksmiths

Note: This is a selection of our numerous products for your training lab. Your regional Area Sales Manager will be happy to advise you on further variants and designs according to your individual needs!

Dimensions and weights
Length (product) approx.	550 mm
Height (product) approx.	240 mm
Width/depth (product) approx.	320 mm
Net weight approx.	30 kg
Bending performance
Bending capacity flat steel cold bending	100 x 5 mm
Bending capacity flat steel hot bending	100 x 15 mm
Bending capacity round steel cold bending	18 mm
Bending capacity round steel hot bending	27 mm
Bending capacity square steel cold bending	16 x 16 mm
Bending capacity square steel hot bending	25 x 25 mm
Bending performance angle steel cold bending	60 x 8 mm
Bending performance angle steel hot bending	100 x 12 mm
