MAPS Mechatronics (double-sided)
Multifunctional Workstation System

Mobile - 110 V / 60 Hz
Item No.: 43962

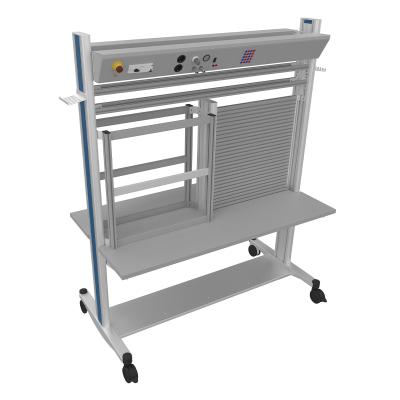

Multifunctional workstation system MAPS with workstation for double-sided use - Completely assembled

The multifunctional MAPS workstation system from Christiani allows you to teach almost all control technology technologies in industrial-technical vocational training in a practical way.

The basic configuration of the MAPS Mechatronics consists of a mobile two-sided work table, two energy terminals with safety modules and insert plates, two experimental frames and a sliding plate that can be used on both sides. This means that different components and parts can be used at the workstation system. The extensive accessories allow you to expand the MAPS exactly according to your needs.

The workstation system can be combined with pneumatic/electropneumatic components and is also suitable for teaching PLC technology, sensor technology, electrical engineering and much more. Proven industrial components as well as didactic teaching aids are available as accessories.

System with many advantages:

  • Low entry price and modular structure
  • Flexible use for different training professions
  • Single or double-sided versions
  • Customised adaptations
  • Sturdy design made of aluminium system profile
  • With industrial components and didactic teaching material
  • Quick, easy and safe assembly of the components

The double-sided version of the MAPS Mechatronics workstation system offers one workstation per side and is mobile thanks to the integrated rollers.

The MAPS Mechatronics consists of the following components:

1. Mobile Basic Frame (1x)

  • The stable frame is made of robust extruded aluminium profile. The profile has two grooves on each side and two separate cable ducts.
  • Dimensions (WxDxH): 1.600 x 800 x 1.970 mm
  • the entire workstation is mobile
  • Components:
  • 1x fastening set for table top
  • 2x steel top supports
  • 1x mobile base unit with foot sections, 124 mm high
  • 4 swivel rollers 100 mm, all 4 lockable
  • 2x Quadro columns of extruded aluminium profile 1.838 mm high with decor profile as cover for cable ducts
  • 2x snap-in decors on the outside
  • 2x snap-in decors on the inside, with brush strip for cable ducts
  • 1x extruded aluminium profile columns 760 mm high, mounted centrally on the tabletop
  • Colour/decor:
  • Centre sections: light grey (RAL 7035)
  • Decorative parts: light grey (RAL 7035) / traffic blue (RAL 5017)

2. Table top (1x)

  • Dimensions (WxDxS): 1.600 x 800 x 27 mm
  • Working height: 800 mm
  • Made of resistant hard laminate, light grey

3. Grooved Plate (1x)

  • Dimensions (WxDxH): 730 x 815 x 30 mm
  • Made of aluminium profile plates
  • Groove spacing: 25 mm
  • Groove dimension: 8.9 mm
  • To accommodate components with quick-fix systems
  • Mounted between the columns, inclinable

4. Horizontal Profile Set (1x)

  • Dimensions (WxDxH): 1.505 x 30 x 30 mm
  • Made of aluminium profile
  • Slot dimension: 8.9 mm
  • To accommodate electrical boxes and components with quick-fastening systems
  • Mounted between the columns

5. Experimental Frame (1x)

  • Dimensions (WxDxH): 730 x 117.5 x 709 mm
  • Mounted between the columns
  • 2-row
  • To hold DIN-A4 training boards

6. Cable Holder (1x)

  • Made of sheet steel RAL 7035, 141 mm length
  • To accommodate 4 mm safety lab plugs with 6 rows (slotted strip 10 mm)

7. Engergy Terminal (2x)

  • Dimensions (WxDxH): 1.600 x 325 x 150 mm

  • Usable width 1.500 mm

  • To accommodate safety modules and insert plates

  • Energy terminal completely pre-equipped and wired

  • Assembly on each side (workstation) from left to right:

    • Safety and switching unit
      • 1-phase including circuit breaker 10-16A
      • Undervoltage release
      • Emergency Stop
      • RCD 25A/30mA, 2-pole type B
      • Control lamp
    • Mains connection
      • 3 m mains cable, WINSTA socket
      • 5-pole, CEE plug 16A
    • Socket module
      • 1-phase, 2 earthed sockets
    • Compressed air regulator
      • Adjustable from 0.5-12 bar with pressure gauge and 1/8" quick couplings
    • Fixed voltage source
      • 24V / 6A DC, 2 safety laboratory sockets
      • ON/OFF rocker switch
    • Distributor plate
      • 2 x 10 safety lab sockets red and blue, connected to DC supply
    • Empty plates

The multifunctional workstation system MAPS is supplied as a ready for use system.

Please note: Provide an appropriate unloading facility (e.g. forklift, lifting platform).
