Laboratory tables and workstation systems are part of every training lab for practical vocational and further training. Our laboratory tables exactly meet the requirements of technical training: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in their equipment.
Laboratory Table Straight - Everything a Laboratory Table Needs

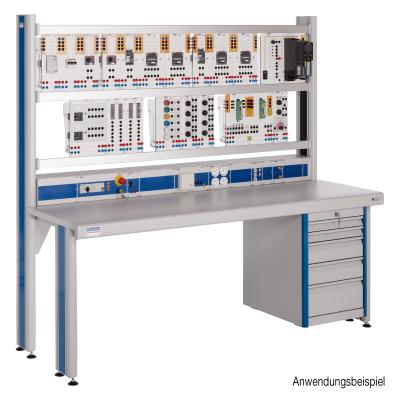

The laboratory table Straight is designed as a direct route to electrical engineering under laboratory conditions, equipped with an experimental frame for learning boards in DIN A4 format, a supply channel and a hanging container.
Highlights - Twin Aluminium Channel
- Installation options for 19" devices with low installation depth
- Mounting on the table top
- 1,750 x 160 x 133 mm (L x W x H) / 3HE, 322 TE

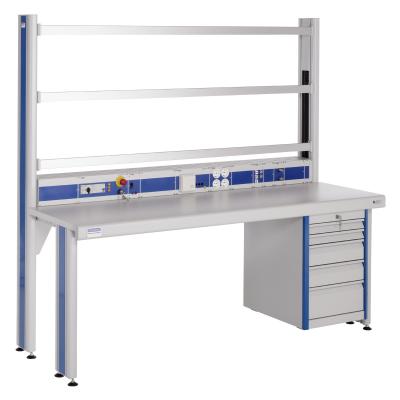

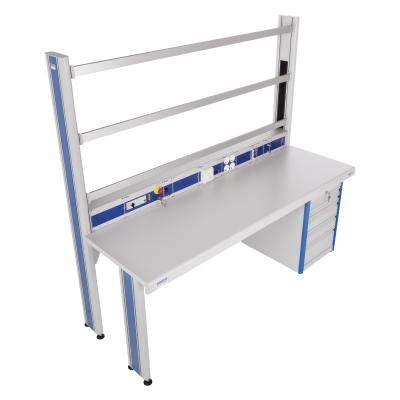

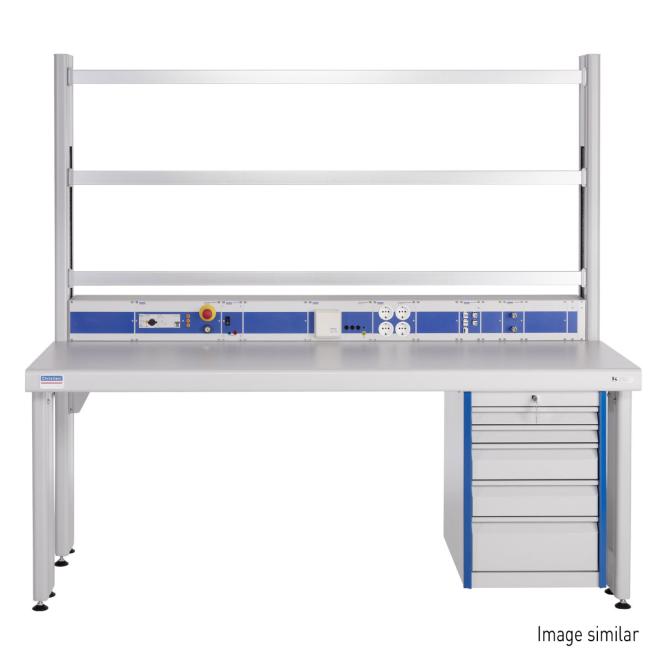

Laboratory Table Straight
- Table top with postforming edge
- 2-row experimental frame
Electric Channel Twin incl. the following built-in appliances:
Safety module
- Ground fault circuit interrupter 30 mA / 25A, 4pin type B, sensitive to universal current
- Motor protection switch 10 - 16A, 3 pole with undervoltage release
- Key switch
- 3 power indicator lights
- Emergency stop button
Fixed DC voltage
- 24V DC / 6A
CEE socket module
- 16 A, 5-pin CEE connector red
- 5 safety laboratory sockets
Socket outlet module
- 4x grounding contact socket
Media connection module
- 2x RJ45 jacks
- 2x USB
- 1x HDMI
Compressed air module
- 2x Quick coupling 1/8"
Main power supply, 5-pin
Drawer block
- Hanging version
- Dimensions (L x W x H): 418 x 555 x 580 mm
- Robust sheet steel housing
- Full-extension drawers
- 3 drawers 2 HE
- 1 drawer 3 HE
- Central locking
- Dimensions (L x W x H): 1.800 x 800 x 1.700 mm
- Weight: approx. 180 kg
- Power supply: 400 V / 50 Hz
- Table top
Standard hard laminate (EN438)
- very hard, abrasion resistant, HPL laminate
- Panel thicknesses and edge shapes
- thickness, with postforming edge: 40 mm
Further features:
-
Surface slightly structured and glare-free
-
Temporarily heat resistant up to 180°C
-
Resistant to organic solvents, weak acids and alkalis, petrol and oil
-
Color: Light gray (RAL 7035)
-
Load capacity: work surface can be loaded up to 200 kg
-
Frame construction (substructure of the table top)
- 3 mm tubular steel frame, high-precision laser-processed
-
Foot Profiles
Standard conductive powder-coated in light grey (RAL 7035)
-
Snap-in and insert profiles
In standard color (RAL 5017)
-
Built-in appliances
Decor in standard color (RAL 5017)
- All electrical professions
