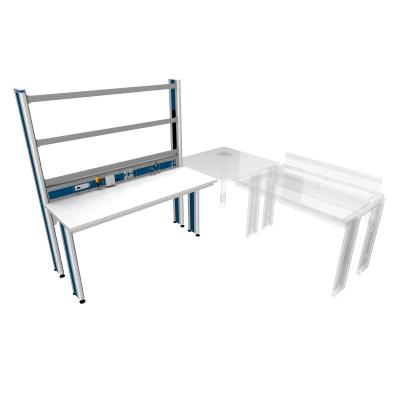

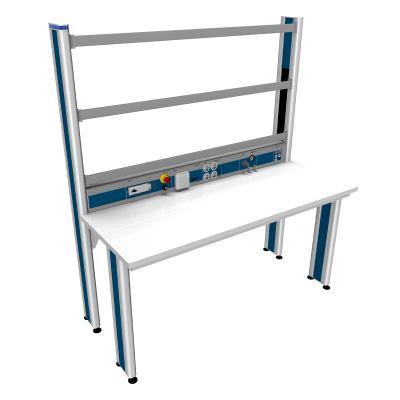

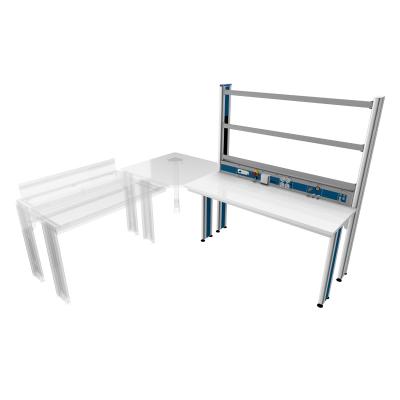

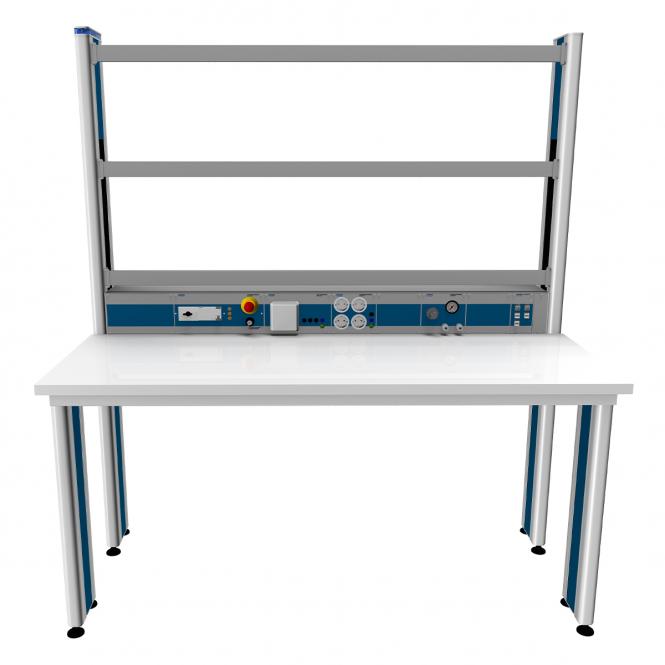

Laboratory Table Straight V2

Laboratory Table Straight V2
with 19" Aluminium Channel Twin, 2-row Experimental Frame

1.500 x 800 x 1.700 mm
Item No.: 41545
Add to wish list

Laboratory tables and workstation systems belong in every technical room for practical education and training. Our laboratory tables precisely meet the requirements in technical education:

  • High-quality workmanship
  • Excellent functionality
  • Sophisticated ergonomics

Practical in daily use and versatile in equipment.

Laboratory Table Straight V2 - Everything a Laboratory Table Needs

The Laboratory Table Straight V2 is the direct way to electrical engineering under laboratory conditions, equipped with an experimental frame for learning boards in DIN A4 format and a supply channel.

Highlights - Twin aluminum channel

  • 19" aluminum channel for holding measuring and testing devices
  • Mounted on the table top
  • Removable sheet steel back panels

Note: The blue insert profiles on the inside of the table legs (see product photos), are not included in the standard version of this laboratory table offered here.

Laboratory Table Straight V2

  • 2-row experimental frame
  • Aluminum channel incl. the following built-in devices:

Safety module

  • Ground fault circuit interrupter 30 mA / 25 A, 4 pol. type B, all-current sensitive
  • Motor protection switch 10 - 16 A, 3 pol. with undervoltage trigger
  • 1 key switch
  • 3 mains control lamps
  • Emergency stop button
  • 1 connection for status light white-green-blue

Socket plate

  • 1 CEE socket 16 A, 5 pol.
  • Safety laboratory sockets (L1-L3, N)
  • 1 grounding socket

Socket plate

  • 4x protective contact sockets
  • Safety laboratory sockets (L1, N, PE)

Compressed air module

  • 0,5-8,5 bar with manometer
  • 2 quick coupling 1/8"

Media connection module

  • 2x RJ45 socket
  • 2x USB
  • 1x HDMI

Status light

  • Add-on module for Quadro column
  • LED white-green-blue-red

Table Top

Standard hard laminate (EN438)

  • Very hard, abrasion resistant, HPL laminate
  • Surface slightly structured and glare-free
  • Heat resistant up to 180°C for a short time
  • Resistant to organic solvents, weak acids and alkalis, gasoline and oil
  • Color: light gray (RAL 7035)

Snap-in decors

Rear snap-in decors:

  • 2 x inside with brush strips RAL 7035
  • 2 x outside RAL 5017

Front snap-in decors:

  • 2 x outside RAL 5017
  • All electrical professions

Dimensions (L x W x H): 1,500 x 800 x 1,700 mm

Weight: 150 kg

Load capacity: work surface can be loaded up to 200 kg
