Laboratory tables and workstation systems belong in every technical room for practical education and training. Our laboratory tables precisely meet the requirements in technical education:
- High-quality workmanship
- Excellent functionality
- Sophisticated ergonomics
Practical in daily use and versatile in equipment.
Laboratory table Straight V2 - Everything a laboratory table needs
The Straight V2 laboratory table is the direct route to electrical engineering under laboratory conditions, equipped with an experimental frame for learning boards in DIN A4 format and a supply channel.
This version of the Straight V2 laboratory table also has a postforming edge on the tabletop.

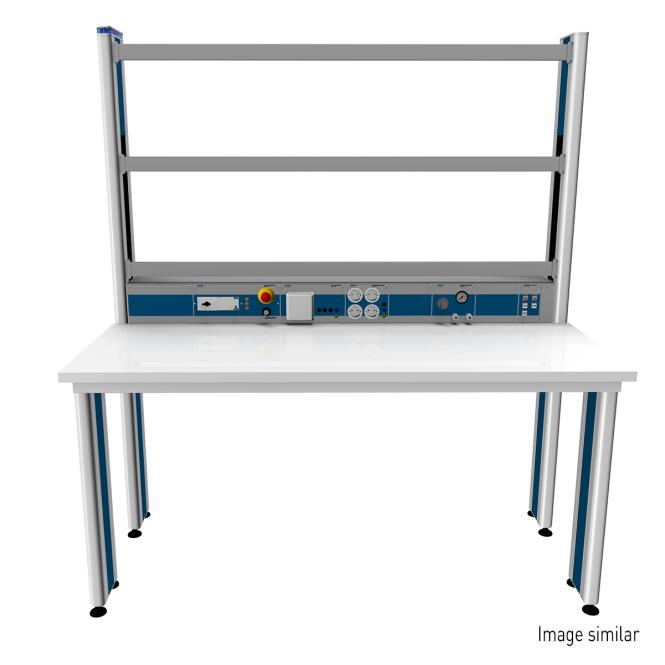

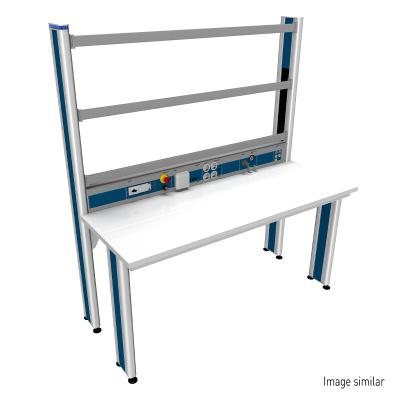

Laboratory Table Straight V2
- 2-row experimental frame
- Aluminum channel incl. the following built-in devices:
Safety module:
- Ground fault circuit interrupter 30 mA/25 A, 4-pole type B, all-current sensitive.
- Motor protection switch 10 - 16 A, 3 pol. with undervoltage trigger
- 1 x key switch
- 3 x mains control lamps
- Emergency stop button
- Status light white-green-blue
Socket plate:
- 1 x CEE socket outlet 16 A, 5-pin
- Safety lab sockets L1,L2,L3,N,PE
- 4 x protective contact sockets
Compressed air module:
- Adjustable pressure from 0.5 to 8.5 bar
- With manometer
- 2 x quick coupling 1/8
Media connection module:
- 2 x RJ45 socket
- 2 x USB
- 1 x HDMI
- Tabletop
- Hard laminate in light grey. (RAL 7035)
- With 68 mm long rounded postforming edge, radius 15 mm
- All electrical professions
Dimensions (L x W x H): 1500 x 800 x 1900 mm
With height-adjustable table top from 730 to 750 mm.
