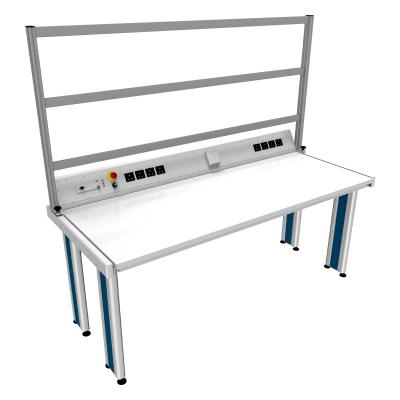

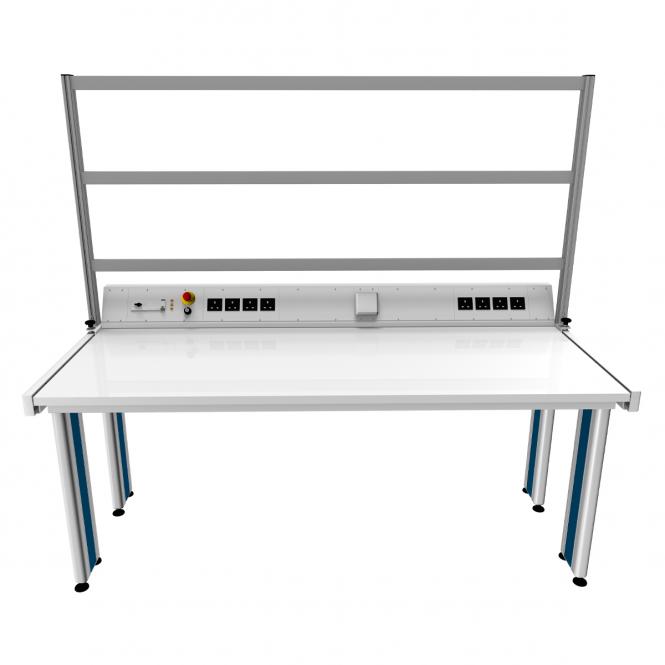

Laboratory Table Quadro-Twin SL
with 19" Table Top Housing Basic

1.900 x 800 x 1.690 mm
Item No.: 41548

Laboratory tables and workstation systems are part of every training lab for practical vocational and further training. Our laboratory tables exactly meet the requirements of technical training: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in their equipment.

Laboratory Table Quadro-Twin SL – equipped with extend rail and height adjustable

This laboratory table is adjustable in height up to 20 mm. The 2-row experimenting frame can be moved through the extend rail so that the user can easily reach everything.

Highlights - Extend Rail

  • Bolted to the foot profiles using stable 3 mm steel plates
  • Double carriage on each side of the table, thus torsion-resistant, no tilting when operated with one hand
  • Additional stiffening of the experimental frame at the lowest profile by a 4-fold bent 3mm sheet steel profile over the entire width
  • The stiffening profile also serves as a handle for moving the experimental frame
  • Infinitely variable manual locking by means of locking screws (left and right on the table)

Laboratory Table Quadro-Twin SL

  • 2-row experimenting frame
  • 800 mm extend rail for experimenting frame
  • 20 mm adjustable in height

19“ Table Top Housing Basic

  • Dimensions (l x w x h): 1.800 x 125 x 150 mm
  • Can be equipped with all 19" devices
  • Inclined 30°

19“ Table Top Housing Basic incl. following built-in devices:

  • Security module
  • RCD 25 A / 30 mA, 4 pole
  • Miniature circuit breaker 10-16 A
  • Undervoltage relase
  • Key switch
  • 3 indicator lights
  • Emergency-stop switch
  • Room emergency stop connection
  • CEE socket module 16 A
  • 5 pole CEE plug read
  • 8 sockets, british standard
  • Max. dimensions (l x w x h): 1.900 x 800 x 1.690 mm
  • Table top dimensions (l x w x t) 1.800 x 800 x 27 mm
  • Weight: 98 kg
  • Power supply: 230 V / 50 Hz
  • Load capacity: work surface can be loaded up to 200 kg

Further features:

  • Table top standard hard laminate (EN438)
  • Very hard, abrasion resistant, HPL laminate
  • Surface slightly structured and glare-free
  • Temporarily heat resistant up to 180°C
  • Resistant to organic solvents, weak acids and alkalis, petrol and oil
  • Color: light gray (RAL 7035)
  • Frame construction (substructure of the table top)
  • 3 mm tubular steel frame, high-precision laser-processed
  • Foot profiles
  • Standard conductive powder-coated in light grey (RAL 7035)
  • Snap- in and insert profiles
  • Standard color (RAL 5017)
  • Built- in appliances
  • Decor in standard color (RAL 5017)
  • All electrical professions

Variants
