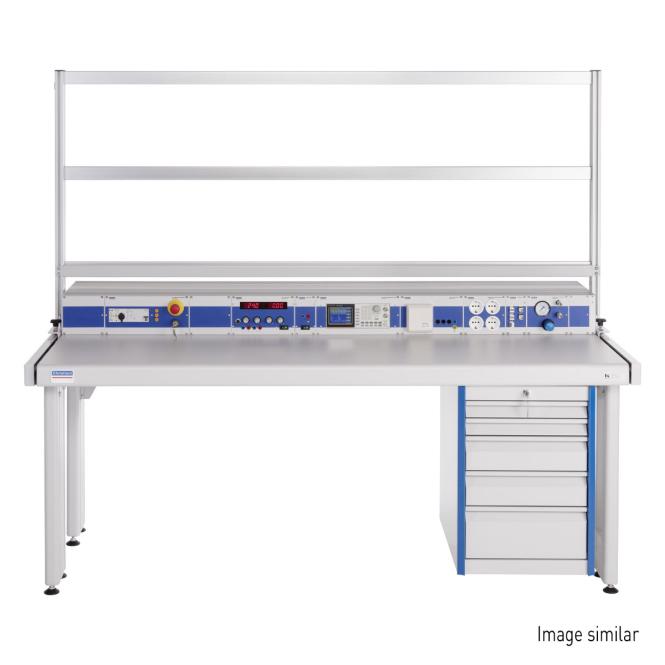

Laboratory Table Extend Rail

Laboratory Table Extend Rail
with 19" Aluminium Bridge Basic, 2-row Experimental Frame on Guide Rail and Hanging Container

1.900 x 800 x 1.640 mm
Item No.: 41541
Add to wish list

Laboratory tables and workstation systems are part of every training lab for practical vocational and further training. Our laboratory tables exactly meet the requirements of technical training: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in their equipment.

Laboratory Table Extend Rail - Well Supplied with Extended Functions

The Laboratory Table Extend Rail has a generously equipped 19" supply bridge and a spacious drawer. The experimental frame can be easily positioned in the guide rail. This facilitates the handling of the training boards.

Highlights - Aluminium Bridge Basic

  • Installation options for powerful 19" devices
  • Can be equipped with all 19" devices
  • Mounting on the table top
  • 1,800 x 320 x 133 mm (L x W x H) / 3HE, 350 TE

Highlights - Guide Rail

  • Using stable 3 mm steel plates screwed to the foot profile
  • Double carriage on each side of the table, thus torsion-resistant, no tilting when operated with one hand
  • Additional stiffening of the experimental frame at the lowest profile by a 4-fold bent 3 mm sheet steel profile over the entire width.
  • The stiffening profile also serves as a handle for moving the experimental frame
  • Steplessly lockable by hand (by means of locking screws on the left and right side of the table)

Note:

The guide rail can be retrofitted to any table with a foot profile up to the edge of the table.

Abmessungen (L x B x H): 1900 x 800 x 1640 mm

Laboratory Table Extend Rail

  • Table top with postforming edge
  • 2-row experimental frame
  • 800 mm guide rail for experimental frame

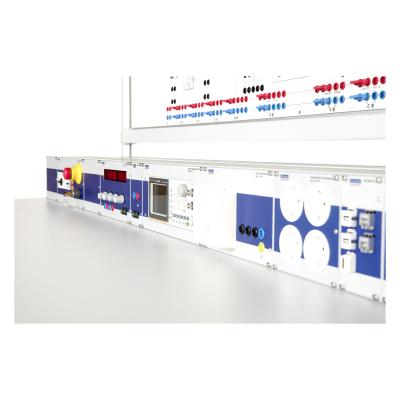

Aluminium bridge incl. the following built-in devices:

  • Safety module - Ground fault circuit interrupter 30mA / 25A, 4pin type B, sensitive to universal current - Motor protection switch 10 - 16A, 3pol. with undervoltage release - Key switch - 3 power indicator lights

  • Emergency stop button

  • Adjustable DC voltage

    • 2x 0 - 30V / 2 x 0 - 2A DC

  • Fixed DC voltage

    • 24V DC / 6A

  • Function Generator

    • Sine / square 1 µHz - 25 MHz
    • Triangle 1 µHz - 1 MHz
    • Resolution 1µHz
    • Rise time rectangle 25 ns Built-in standard 120 MS/s, 10 bit bandwidth
    • 4k points for arbitrary waveform
    • 1% - 99% Duty Cyle for rectangle waveform
    • 8.89 cm color LCD display
    • Modulation types: AM, FM, PM, FSK, SUM
    • Sweep and burst function
    • Frequency Counter USB-Jost / Divice interface for remote control and waveform editing
    • Frequency counter for external signals 5 Hz - 150 MHz
    • 2 test leads

  • CEE socket module 16 A

    • 5-pin CEE connector red
    • 5 safety laboratory sockets

  • Socket outlet module

    • 4 x grounding contact socket

  • Media connection module

    • 2 x RJ45 socket
    • 2 x USB
    • 1 x HDMI

  • Compressed air module

    • 2 x quick couplings 1/8

  • Main power supply, 5-pin

  • Drawer block, hanging version

    • Dimensions (L x W x H): 418 x 555 x 580 mm
    • Robust steel housing
      • Steel drawers
    • Drawers with full-extension runners
      • 3 drawers 2 HE
      • 1 drawer 3 HE
    • Load capacity / drawer: 30 kg
    • Central locking with pull-out protection
      • Colour:
        • Metal parts: Light grex (RAL 7035)
        • Decorative parts: Traffic blue (RAL 5017)
        • Conductive powder-coated
  • Dimensions (L x W x H): 1.900 x 800 x 1.640 mm
  • Weight: approx. 200 kg
  • Power supply: 400 V / 50 Hz

Table top

  • Standard hard laminate (EN438)

    • very hard, abrasion-resistant, HPL laminate

  • Panel thicknesses and edge shapes

    • thickness, with postforming edge: 40 mm

Further features:

  • Surface slightly structured and glare-free

  • Temporarily heat resistant up to 180°C

  • Resistant to organic solvents, weak acids and alkalis, petrol and oil

  • Color: Light gray (RAL 7035)

  • Load capacity: work surface can be loaded up to 200 kg

  • Frame construction (substructure of the table top)

    • 3 mm tubular steel frame, high-precision laser-processed

  • Foot Profiles

    Standard conductive powder-coated in light grey (RAL 7035)

  • Snap-in and insert profiles

    In standard color (RAL 5017)

  • Built-in appliances

    Decor in standard color (RAL 5017)

  • All electrical professions
