Laboratory tables and workstation systems belong in every technical room for practical education and training. Our laboratory tables meet the requirements in technical education exactly: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in equipment.
Laboratory Table Electronics - Protects from Electrostatic Discharge
The Laboratory Table Electronics with ESD design (ESD = Electro Static Discharge) protects sensitive components from damage caused by unwanted discharge. With this lab bench, you can also work with sensitive electronic components without hesitation.
Highlights
- ESD version
- Guide rail
- Height adjustable
- Suspended container

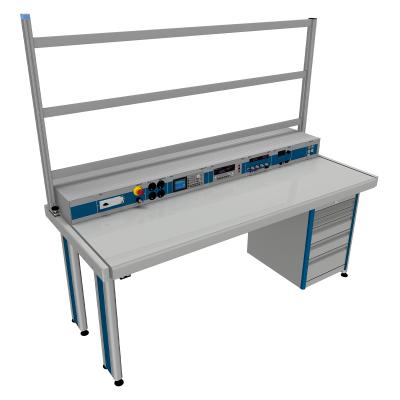

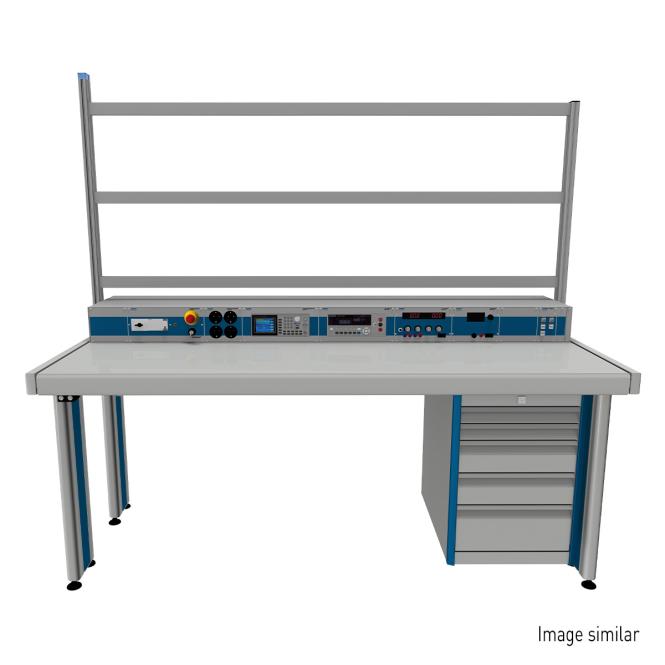

Laboratory Table Electronics
- 2-row experimental frame, depth variable by guide rail
- Aluminum channel incl. the following built-in devices:
Safety module
- Ground fault circuit interrupter 30 mA / 25 A, 4-pole type B, all-current sensitive
- Motor protection switch 10 - 16 A, 3 pol. with undervoltage trigger
- 1 key switch
- 1 mains control lights
- Emergency stop button
- 1 connection for status light white-green-blue
Socket plate
- 4 x protective contact sockets
Function generator
- Frequency range sine / square 1 μHz - 25 MHz
- Frequency range triangle 1 μHz - 1 MHz
- Resolution 1 μHz
- Rise time square wave 25 ns
- Built-in standard 120 MS / s, 10 bit bandwidth, 4k points for arbitrary waveforms
- 8.89 cm color LCD display
- Modulation modes: AM, FM, PM, FSK, SUM
- Sweep and chest function
- Frequency counter
- USB-HOST / Divice interface for remote control and waveform editing
- Frequency counter for external signals 5 HZ - 150 MHz
- 2 test leads
Multimeter
- dual measurements and dual color display
- adjustable measuring rates
- 0.02 % basic accuracy V DC
- True RMS measurement (AC, AC+DC)
- DC voltage measurement 0-1000 V DC
- AC voltage measurement 0-750 V AC
- Resistance measurement 0-50 MOhm
- Temperature measurement function -200 ... +300 °C
- Capacitance measurement 5 nF - 50 µF
- USB interface
- USB memory function
Adjustable DC voltage
- 2 x 0-30 V / 2 x 0-2 A DC, floating, stabilized, short circuit proof, series and parallel connectable
- Digital voltmeter + ammeter
- 4 potentiometers for voltage and current limitation
- 4 safety lab jacks
Soldering station
- Adjustable 150-450 °C
- Digital set/actual display
- Incl. ERSA i-Tool soldering iron and storage stand
Media connection module
- 2 x RJ45 socket
- 2 x USB
- 1 x HDMI
Table Top
Standard hard laminate (EN438)
- Very hard, abrasion resistant, HPL laminate
- Surface slightly structured and glare-free
- Heat resistant up to 180°C for a short time
- Resistant to organic solvents, weak acids and alkalis, petrol and oil
- Postforming edge
- Colour: light gray (RAL 7035)
Hanging container
- Dimensions (W x D x H): 418 x 567 x 580 mm
- Robust sheet steel housing
Drawers
- 2 x drawers 1 HE (52 mm) partial extension
- 2 x drawers 2 HE (106 mm) partial extension
- 1 x drawer 3 HE (160 mm) partial extension
Snap-in decors
Front and rear each with 2 snap-in decors on the outside in RAL 5017
- All electrical professions
Dimensions (L x W x H): 1.900 x 800 x 1.825 mm
Weight: 200 kg
Load capacity: work surface can be loaded up to 200 kg
