Laboratory Table Cockpit

Laboratory Table Cockpit
with 19" Cockpit and 19" Aluminium Channel Twin

1.800 x 800 x 1.600 mm
Item No.: 41543
Add to wish list

Laboratory tables and workstation systems are part of every training lab for practical vocational and further training. Our laboratory tables exactly meet the requirements of technical training: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in their equipment.

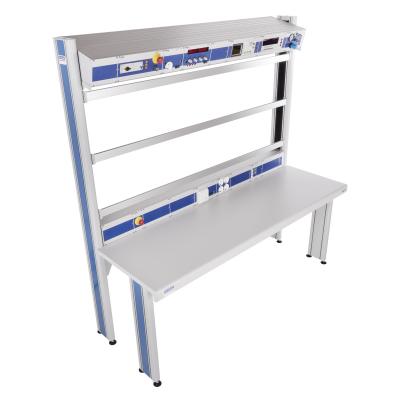

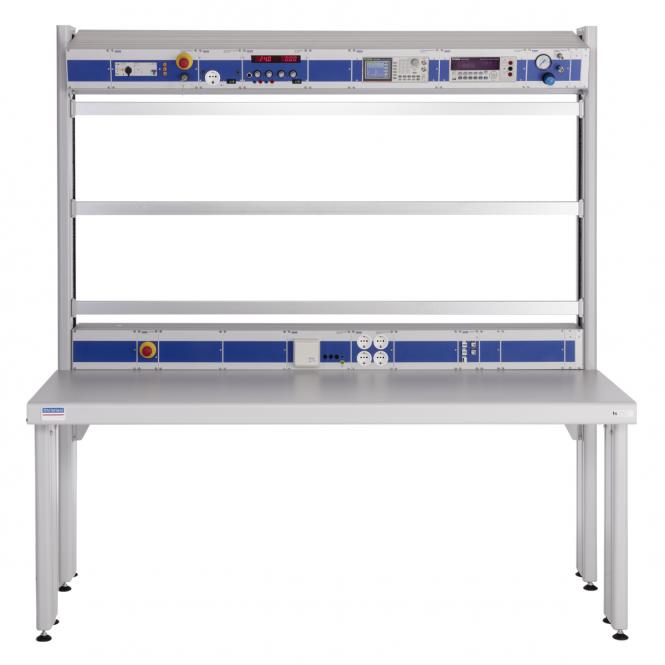

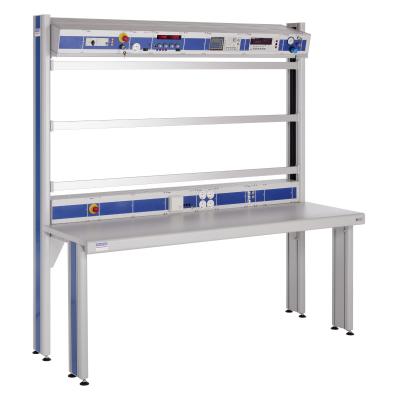

Laboratory Table Cockpit - With this Laboratory Table you are ready-to-go at any time

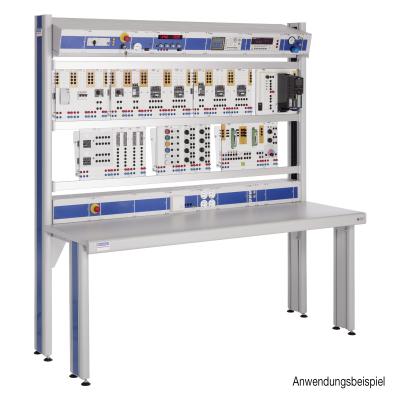

All supply instruments are clearly arranged and easily accessible in the laboratory table cockpit. The cockpit not only looks good, it is also a perfect ergonomic solution. The experimental frame can hold training boards in the standard DIN A4 format.

Highlights - Cockpit (Quadro-Twin aluminum bridge)

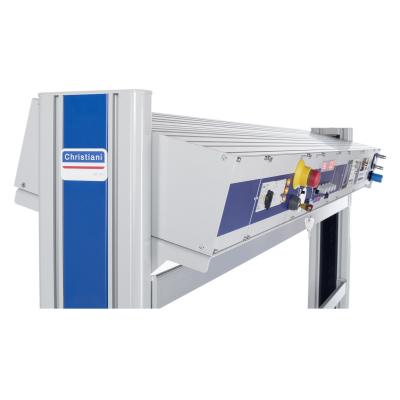

  • In addition to the existing 19" aluminum electric channel on the table top, the 19" cockpit offers further installation possibilities for powerful 3U 19" devices
  • The inclination of the cockpit is continuously adjustable
  • This arrangement is particularly ergonomic for activities that are performed alternately standing and sitting
  • Extensive retrofitting possible
  • 1800 x 320 x 133 mm (L x W x H) / 3HE, 322 TE

Highlights - Twin aluminum channel

  • Installation options for 19" devices with low installation depth
  • Mounting on the table top
  • 1,750 x 160 x 133 mm (L x W x H) / 3HE, 322 TE

Laboratory Table Cockpit

  • Table top with postforming edge
  • 2-row experimental frame

Aluminium bridge Quadro Twin (19" cockpit) incl. the following built-in devices:

  • Safety module

    • Ground fault circuit interrupter 30 mA / 25 A, 4-pin type B, sensitive to universal current
    • Motor protection switch 10 - 16A, 3-pole with undervoltage release
    • Key switch
    • 3 power indicator lights

  • Emergency stop button

  • Fixed AC voltage

    • Isolating transformer, ungrounded 2
    • 30 V / 1A AC

  • Adjustable DC voltage

    • 2 x 0 - 30V / 2 x 0 - 2A DC

  • Function Generator

    • Sine / square 1 µHz - 25 MHz
    • Triangle 1 µHz - 1 MHz
    • Resolution 1µHz
    • Rise time rectangle 25 ns
    • Built-in standard 120 MS/s, 10 bit bandwidth
    • 4k points for arbitrary waveform
    • 1% - 99% Duty Cyle for rectangular waveform
    • 8.89 cm color LCD display
    • Modulation types: AM, FM, PM, FSK, SUM
    • Sweep and burst function
    • Frequency Counter USB-Jost / Device interface for remote control and waveform editing
    • Frequency counter for external signals 5 Hz - 150 MHz
    • 2 test leads

  • Multimeter

    • Dual Measurement
    • 2-color dual display
    • DC measurement: 0 - 1,000 V DC
    • AC measurement: 0 - 750 V AC
    • Resistance measurement: 0 - 50 MOhm
    • Temperature measurement: -200 ... +300 °C
    • Capacity measurement: 5 nF - 50 µF
    • Continuity check
    • Function Diode test function
    • Relative value measurement

  • Compressed air module

    • 2 Quick coupling 1/8"
    • 0,5 - 12 bar adjustable

Electric channel Twin, incl. the following built-in devices:

  • Emergency stop button
  • CEE socket module 16 A
    • 5-pin CEE connector red
    • 5 safety laboratory sockets
  • Socket outlet module
    • 4 x grounding contact socket
  • Media connection module
    • 2 x RJ45 socket
    • 2 x USB
    • 1 x HDMI
  • Main power supply, 5-pin
  • Dimensions (L x W x H): 1.800 x 800 x 1.600 mm
  • Weight: approx. 180 kg
  • Power supply: 400 V / 50 Hz
  • Table top standard hard laminate (EN438)
    • very hard, abrasion resistant, HPL laminate
  • Panel thicknesses and edge shapes
    • thickness, with postforming edge: 40 mm

Further features:

  • Surface slightly structured and glare-free

  • Temporarily heat resistant up to 180°C

  • Resistant to organic solvents, weak acids and alkalis, petrol and oil

  • Color: Light gray (RAL 7035)

  • Load capacity: work surface can be loaded up to 200 kg

  • Frame construction (substructure of the table top)

    • 3 mm tubular steel frame, high-precision laser-processed

  • Foot Profiles

    Standard conductive powder-coated in light grey (RAL 7035)

  • Snap-in and insert profiles

    In standard color (RAL 5017)

  • Built-in appliances

    Decor in standard color (RAL 5017)

  • All electrical professions
