Laboratory tables and workstation systems are part of every training lab for practical vocational and further training. Our laboratory tables exactly meet the requirements of technical training: high-quality workmanship, excellent functionality and sophisticated ergonomics characterize the modern workstation systems. Practical in daily use and versatile in their equipment.
Laboratory Table Pivot Rail - Laboratory Table with Retractable Supply Module
The highlight of the Pivot Rail laboratory bench: The supply module can be retracted into the table top at the push of a button. All connections are thus well and safely stored. In the smooth-running guide rail Rail, the experiment frame can be moved to any position.

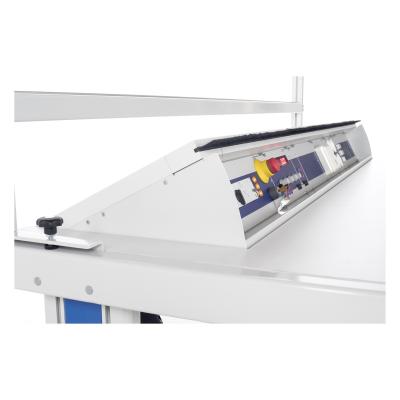

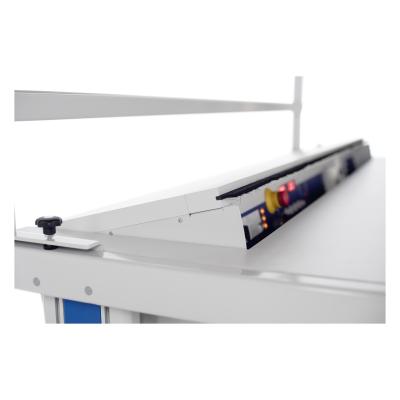

Highlights - Swivel channel
- Sophisticated, robust and precisely adjustable construction
- Channel can be swivelled in flush with the table level
- Electrical drive by linear actuator
- Operation via keys below the table top
The new swivel channel protects the electronic devices, prevents unintentional operation and offers maximum safety.

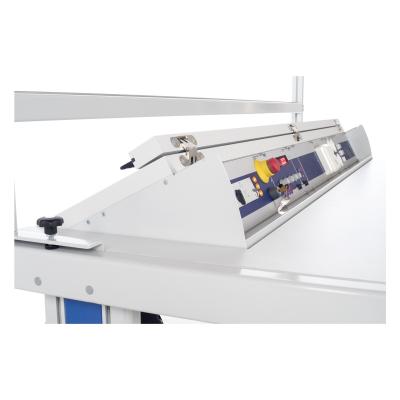

3-fold Finger and Hand Protection
- All moving parts are insulated by sheet steel below the table top
- Brush strip as finger pinch protection
- Brush strip with folding function as hand pinch protection
- Folding mechanism of the brush strip is fixed after complete retraction of the swivel channel. The manual folding of the strip is not possible and the devices are safely stowed away
- Installation options for powerful 19" devices
- Can be equipped with all 19" devices
- 1,700 x 390 x 200 mm (L x W x H) / 3HE, 322 TE

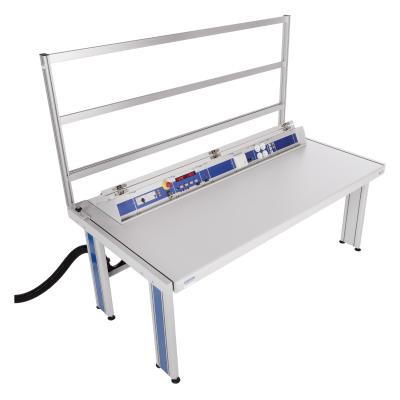

Highlights - Guide Rail
- Bolted to the foot profiles using stable 3 mm steel plates
- Double carriage on each side of the table, thus torsion-resistant, no tilting when operated with one hand
- Additional stiffening of the experimental frame at the lowest profile by a 4-fold bent 3mm sheet steel profile over the entire width.
- The stiffening profile also serves as a handle for moving the experimental frame
- Infinitely variable manual locking by means of locking screws (left and right on the table)
Note:
The guide rail can be retrofitted to any table with a foot profile up to the edge of the table.

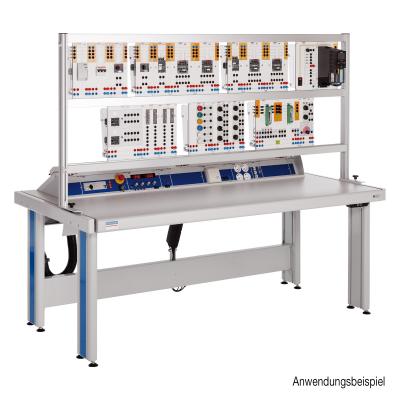

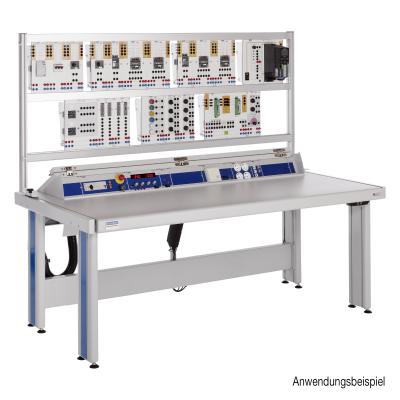

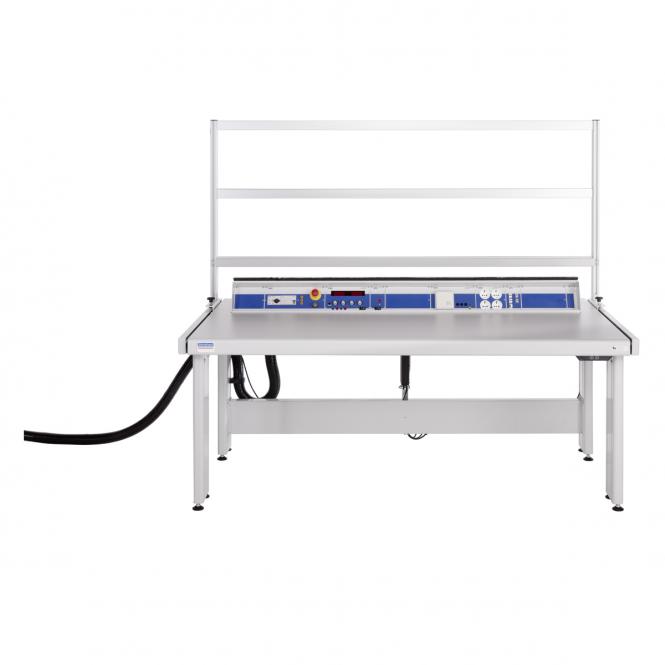

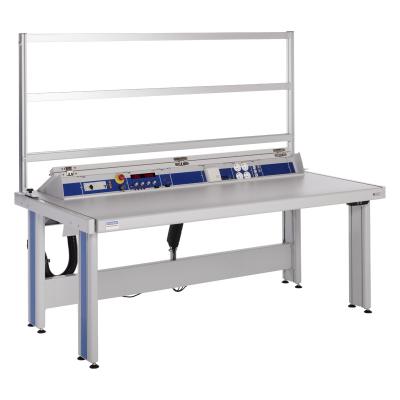

Laboratory Table Pivot Rail
- Table top with postforming edge
- 2-row experimental frame
- 800 mm slide rail for experimental frame
19" assembly 3HE with swivel mechanism incl. the following built-in devices:
-
Safety module
- Ground fault circuit interrupter 30mA / 25A, 4pin type B, sensitive to universal current
- Motor protection switch 10 - 16A, 3pol. with undervoltage release
- Key switch
- 3 power indicator lights
-
Emergency stop button
-
Adjustable DC voltage
- 2 x 0 - 30V / 2 x 0 - 2A DC
-
Fixed DC voltage
- 24V DC / 6A
-
CEE socket module 16 A
- 5-pin CEE connector red
- 5 safety laboratory sockets
-
Socket outlet module
- 4 x grounding contact socket
-
Media connection module
- 2 x RJ45 socket
- 2 x USB
- 1 x HDMI
-
Main power supply, 5-pin
- Dimensions (L x W x H): 1.900 x 800 x 1.615 mm
- Weight: approx. 180 kg
- Power supply: 400 V / 50 Hz
- Table top standard hard laminate (EN438)
- very hard, abrasion resistant, HPL laminate
- Panel thicknesses and edge shapes
- thickness, with postforming edge: 40 mm
Further features
-
Surface slightly structured and glare-free
-
Temporarily heat resistant up to 180°C
-
Resistant to organic solvents, weak acids and alkalis, petrol and oil
-
Color: Light gray (RAL 7035)
-
Load capacity: work surface can be loaded up to 200 kg
-
Frame construction (substructure of the table top)
- 3 mm tubular steel frame, high-precision laser-processed
-
Foot Profiles
Standard conductive powder-coated in light grey (RAL 7035)
-
Snap-in and insert profiles
In standard color (RAL 5017)
-
Built-in appliances
Decor in standard color (RAL 5017)
- All electrical professions
