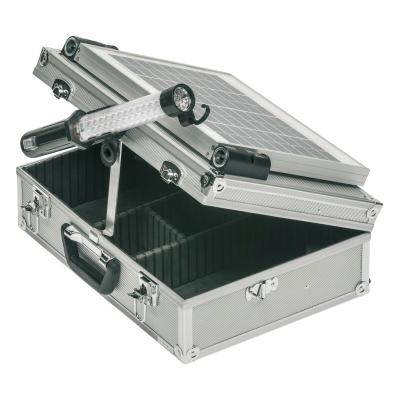

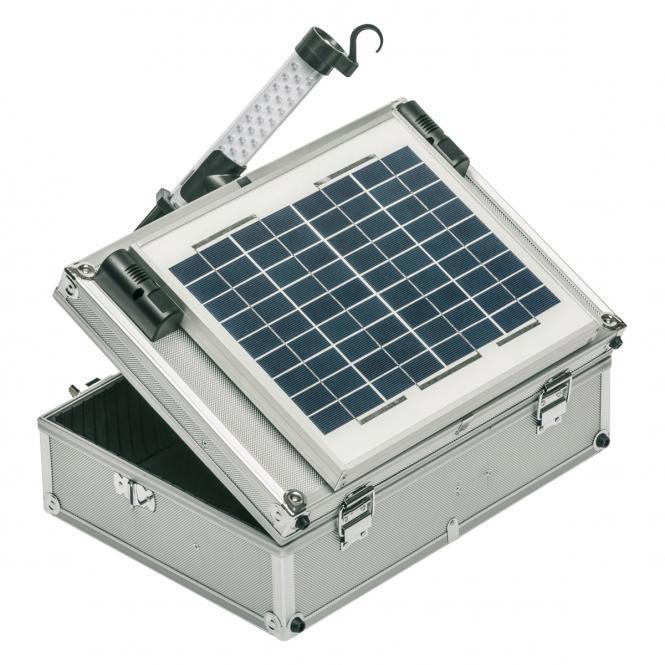

The solar work case consists of a robust case with integrated solar module, a
battery for storing energy and various consumers that can be operated using the
self-generated solar power.
The solar work case is available in three
different versions:
- unprocessed
- prepared and ready for installation
- ready for use
In addition to the assembly instructions, the solar work case also contains an educational introduction to the basics of photovoltaics.

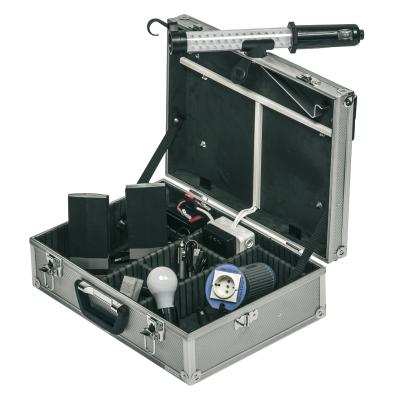

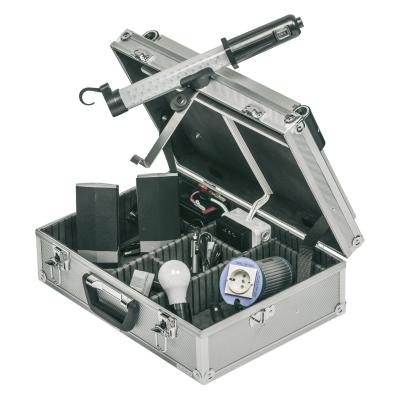

The ready for use solar work case can be used immediately.
With the solar work case you have your own small solar power plant with a long and high usage value.
The solar module supplies solar energy, which is stored in the battery via a charge controller. A variety of connection options can be used to operate different consumers of daily needs. Different lamps are included in the scope of delivery as well as active boxes.
The solar energy is stored as direct current in the battery, but other household appliances can also be connected via the included inverter.
Using the finished solar work case, the basics of photovoltaics are learned via the didactic documents, such as:
- the module characteristic curves and their influencing factors
- the fill factor of a solar cell or solar module
- the power adjustment
In addition, the main components of an off-grid PV system are learned and understood.
- General schools
- Training centres and vocational colleges
- Project groups
- Self-study
- Development projects

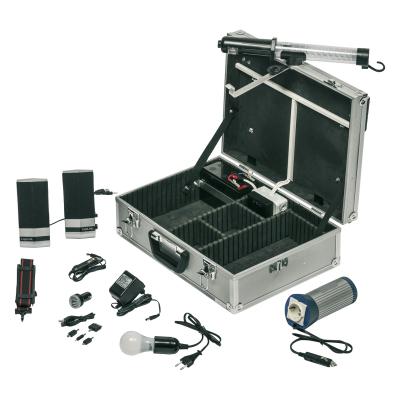

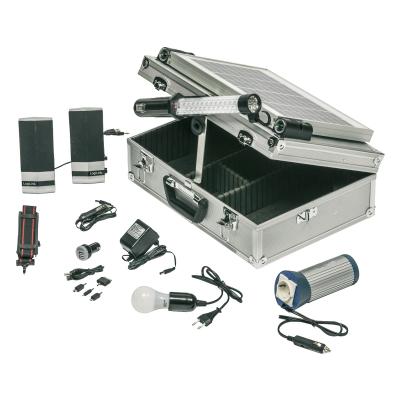

- Work case with aluminium design
- Solar module

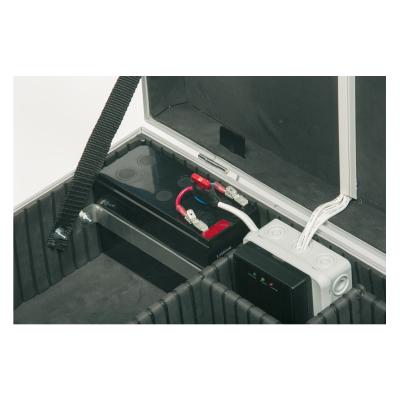

- Charge controller with deep discharge protection
- 2 universal vehicle sockets
- Battery
- Active loudspeakers
- LED penlight with spotlight
- Inverter
- Lamp socket with LED lamp
- Adapter set
- Numerous strands
- Fuse holder with blade-type fuses
- Distribution box
- Mini cable duct
- Aluminium strip
- Mounting screws with nuts and washers
- Electrical pliers with assembly material
- Detailed assembly instructions with educational material
- Power data:
- Solar module: 10 W, 12 V
- Battery: 12 V, 7.2 Ah
- Connections:
- 2x12 V universal sockets
- Additional 12 V connections through the use of an adapter set
- 2xUSB connections (via an adapter)
- 230 V socket (via an inverter)
- E27 lamp socket with euro plug for 230 V AC current
