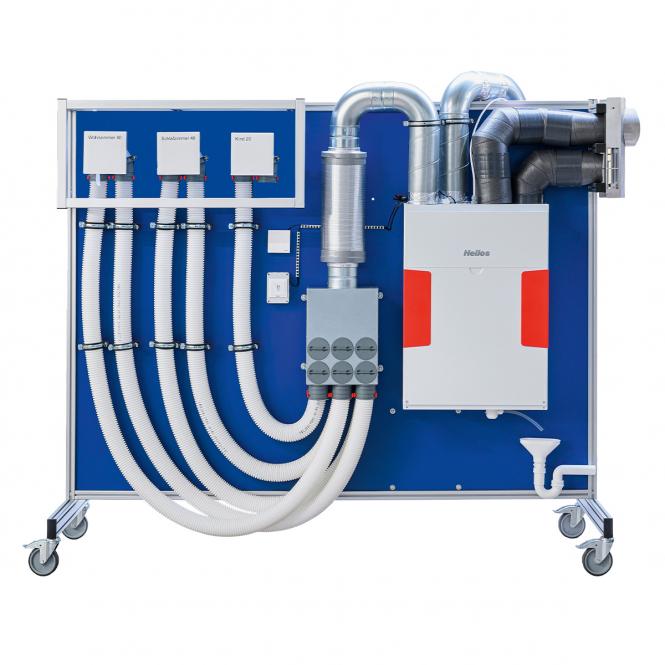

The training stand with a frame made of grooved extruded aluminium profile can be used flexibly thanks to the castors and is equipped with a fully functional Helios air-conditioning unit. The unit has a weather protection grille on the inlet and outlet side, which is directly connected to the ventilation unit via insulated pipe sections. There is a silencer in each of the supply air and extract air streams. A distributor on the front side supplies air to the discharge valves on the front and rear sides respectively. All valves are adjustable to suit the air requirements of the room. All parameters are sent from the unit via LAN or WLAN to a tablet (included in the scope of delivery) and can be displayed at any time.
Unit description:
- Compact unit for wall mounting, with heat recovery.
- For central ventilation of residential buildings and flats.
- Housing made of galvanised sheet steel, powder-coated, double-walled, 12 mm heat and sound insulation on all sides.
- Free access to the elements through removable front door.
- Two low-noise high-performance centrifugal fans with energy-saving EC motors for outdoor and supply air ducting.
- Easy-to-install connection of fresh air and exhaust air, as well as extract air and supply air, by means of 160 mm nominal diameter pipes at the sleeves arranged at the top (accessory: connector with seal RVBD).
- Condensate connection on the underside of the unit, delivery includes ball siphon.
- Connection on site to drain pipe.
Filter equipment:
- G4 filter for fresh air and exhaust air as standard; an F7 pollen filter is also available as an option.
- Filter can be changed without tools.
- Large-surface plastic cross-counterflow heat exchanger.
- Automatic summer bypass and exchanger cover.
- Standard frost protection monitoring controls supply air flow rate and an optionally installed electric pre-heater (accessory: KWL-EVH 500 W) Equipped with Helios easyControls for LAN integration into a PC network.
- Control in the web browser via PC/laptop, tablet/smartphone or Internet. Integrated Modbus interface.
- KNX module optional (KWL-KNX) Connection option for optional accessories such as manual controls (KWL-BE, -BEC) and air quality sensors (KWL-CO2, -FTF, -VOC) available.
- Training as a plant mechanic for sanitary, heating and air conditioning (SHK)
- Further training in sanitary engineering
- Components of a controlled ventilation system (KWL) and their functions
- Functional principle of a controlled ventilation system
- Ventilation ducts
- Sound insulation and soundproofing
- Planning, installation and commissioning of a controlled ventilation system, parallel operation with room-air-dependent and room-air-independent fireplaces
- Filters and filter classes
- Heat exchangers and air heaters/coolers
