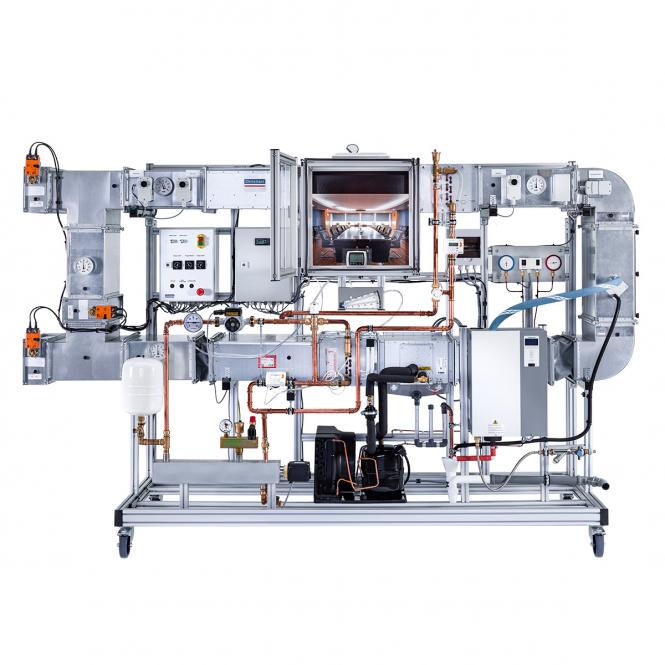

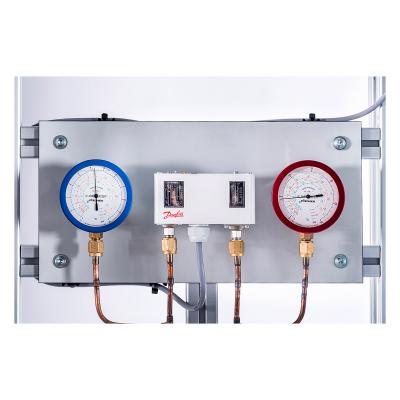

The fully functional training stand is built on a mobile frame made of extruded aluminium profile grooved on all sides. Components can also be attached to the profile at a later date using slot nuts, without the need for drilling. A classic duct system with bends, flaps and reducers is shown. Two speed-controlled fans are installed. A large Plexiglas pane for better visibility and an inspection opening for cleaning are installed in the area of the steam lance.

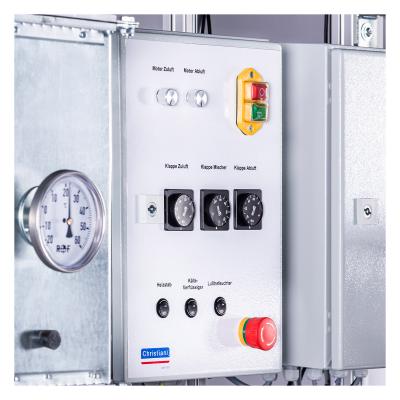

In the model-like room with photo representation of a boardroom, temperature and humidity are displayed digitally. The duct temperatures are measured via analogue duct thermometers. The damper for fresh air, exhaust air and bypass is proportionally adjustable and removable as a unit.
Heating system with controlled 3-way mixers

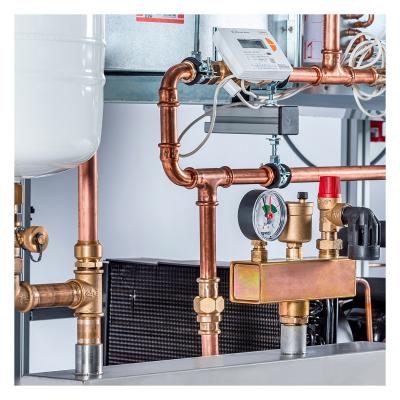

Digital measurements of the heating medium are carried out by heat meters to record, among other things:
Heating unit with thermostat, safety temperature limiter (STB), signal lamp and safety group
Pictorial representation of the boiler system
High-efficiency pump to supply the water-hydraulic circuit
