Tank system

Tank system
Additional equipment for supplying oil burners

Item No.: 33627
Add to wish list
  • Leakage indicator, level indicator and other safety devices
  • Vacuum leakage indicator with visual and acoustic display function
  • Operating fluid level indicator pneumatic and manual with dipstick
  • With radio-interference suppressed limit switch tester, incl. connecting cable and test plug

All safety and level devices are clearly visible in the front area.

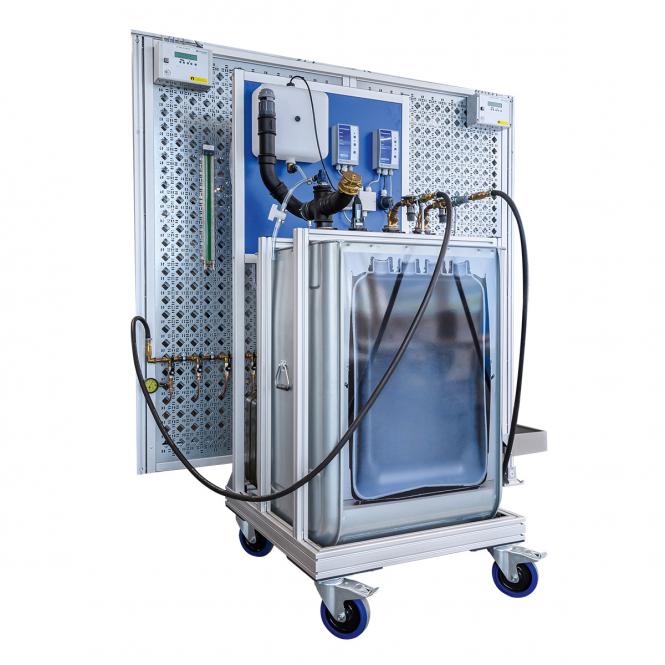

The demonstration tank system with a capacity of approx. 300 liters is mounted on a mobile base frame made of extruded aluminum profile grooved on all sides with lockable high-load castors. The oil supply to workshops and laboratories can be provided by a ring line. The ring line is not included in the scope of delivery and can be offered as an option. The double-walled tank offers additional safety due to additional rubber membranes, which are pulled to the inner tank shell with negative pressure.

Tank system on mobile base frame with approx. 300 litre capacity.
