Solar thermal training stand: tube collector

Item No.: 100947

Add to wish list

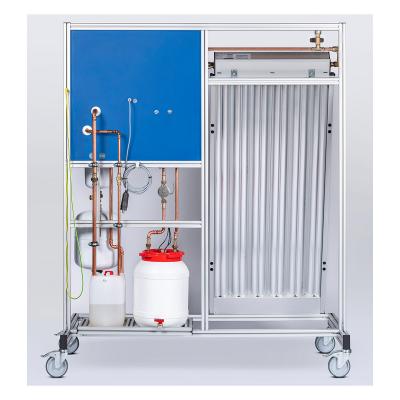

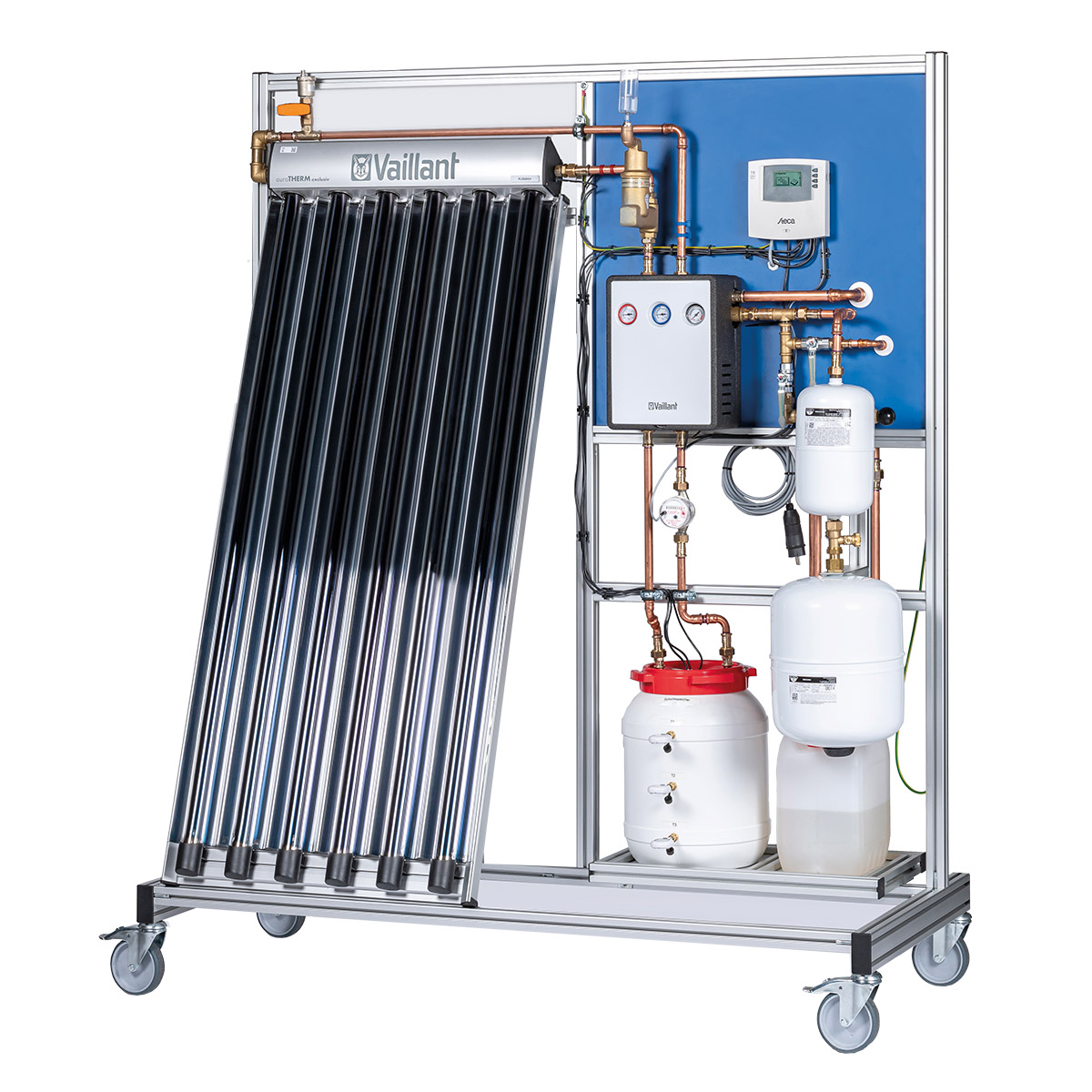

Mobile solar thermal training stand, with tube collector, on frame made of grooved extruded aluminium profile on castors (diameter 125 mm)

Tube collector of a name brand manufacturer with connection hose set.

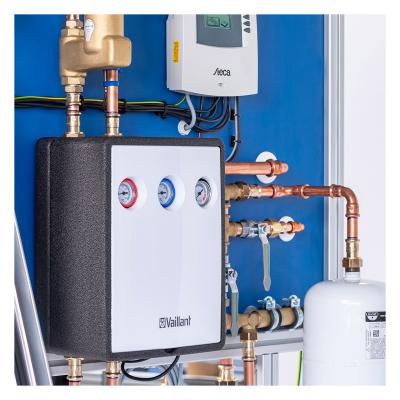

Solar station of a name brand manufacturer, consisting of (among others):
Two-line solar station up to 70 m2 collector area
High-efficiency solar circulation pump with PWM signal
Integrated filling and draining device
Air separator with air release valve
Shut-off ball valves with integrated gravity brake
Non-return valve
2 thermometers
1 pressure gauge
3/4" flat-sealing pipe connections
Safety valve 6 bar
Solar expansion vessel approx. 18 l
Feed vessel
Solar hand pump
automatic air separator
automatic quick air vent
Brand solar controller with digital display, with 3 sensors and with connection cable C1/C2
Solar storage tank capacity min. 26 l with built-in CU coil as heat exchanger
3 immersion thermometers digital for measuring the temperature stratification in the storage tank
Pipe system made of CU pipe 18 x 1.5 mm

Understanding of system-technical conditions of solar thermal systems.
Knowledge of the electrical, hydraulic and control system operating conditions in a solar thermal system.
Systematic action for commissioning a solar thermal system.
Competence to measure and evaluate electrical and hydraulic processes in solar thermal systems.
Knowledge of the terms and operating equipment of solar thermal systems.
