Solar thermal training stand: flat-plate collector

Item No.: 100946

Add to wish list

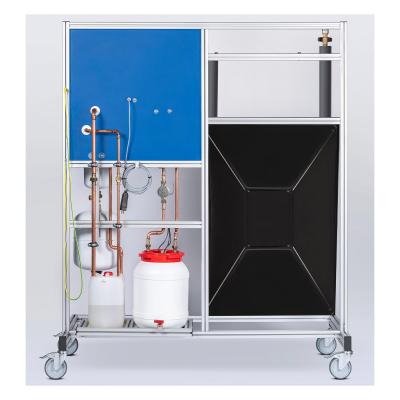

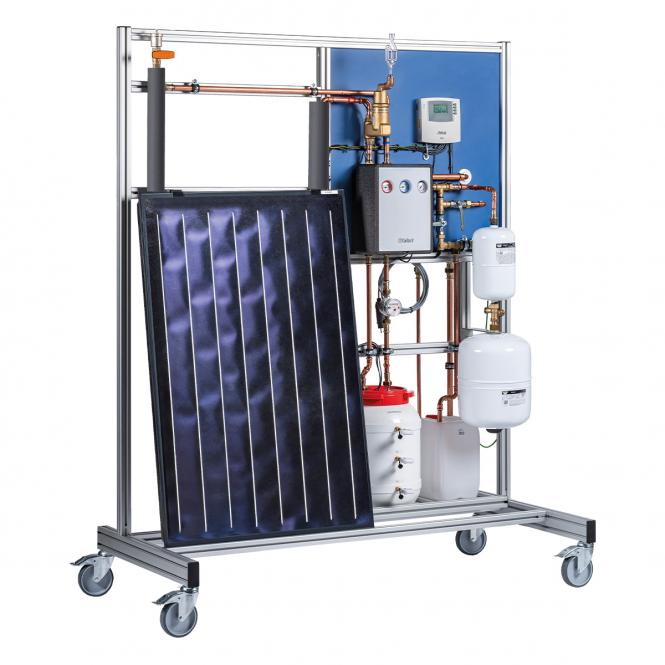

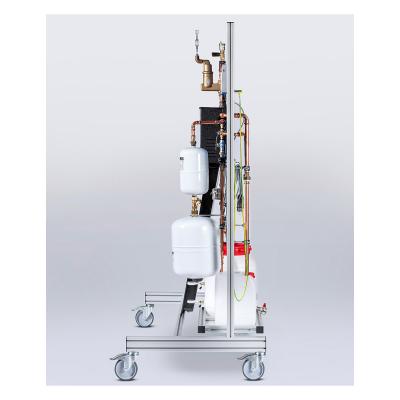

Mobile training stand solar thermal with flat plate collector, on fram made of grooved extruded aluminium profile on castors (diameter 125 mm)

Flat plate collector of a name brand manufacturer with connection hose set.

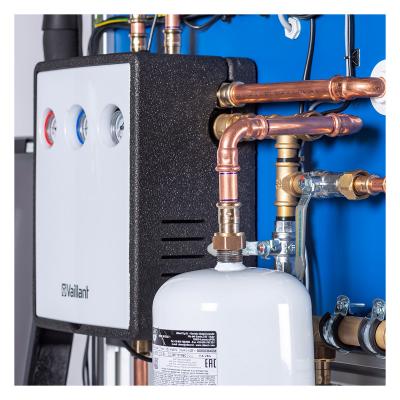

Solar station of a name brand manufacturer, consisting of (among others):
- Two-line solar station up to 70 m2 collector area
- High-efficiency solar circulation pump with PWM signal
- Integrated filling and draining device
- Air separator with air release valve
- Shut-off ball valves with integrated gravity brake
- Non-return valve
- 2 thermometers
- 1 pressure gauge
- 3/4" flat-sealing pipe connections
- Safety valve 6 bar
Solar expansion vessel approx. 18 l
Feed vessel
Solar hand pump
automatic air separator
automatic quick air vent
Brand solar controller with digital display, with 3 sensors and with connection cable C1/C2
Solar storage tank capacity min. 26 l with built-in CU coil as heat exchanger
3 immersion thermometers digital for measuring the temperature stratification in the storage tank
Pipe system made of CU pipe 18 x 1.5 mm

,md - Training as a plant mechanic for sanitary, heating and air conditioning (SHK) - Further training in solar thermal energy

Understanding of system-technical conditions of solar thermal systems.
Knowledge of the electrical, hydraulic and control system operating conditions in a solar thermal system.
Systematic action for commissioning a solar thermal system.
Competence to measure and evaluate electrical and hydraulic processes in solar thermal systems.
Knowledge of the terms and operating equipment of solar thermal systems.
