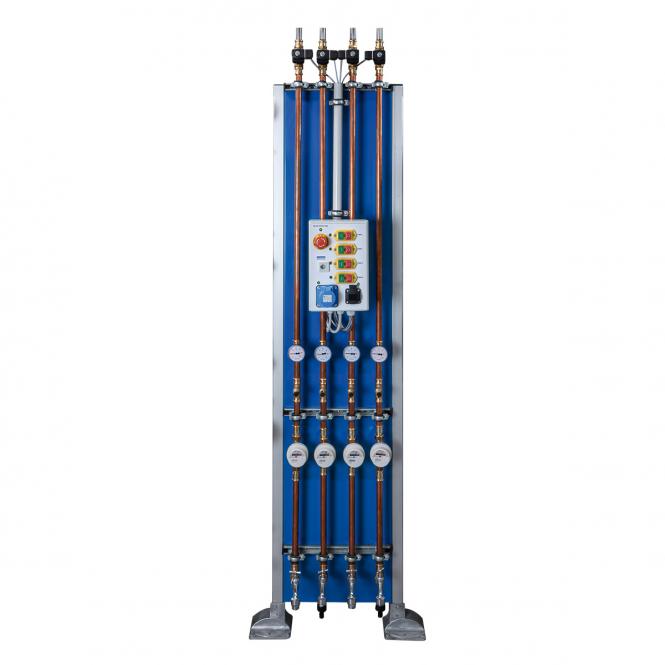

Double energy supply column for water/environmental technology
for media supply at the work stations

Item No.: 33651

Add to wish list

Energy columns enable safe and efficient work and supply the workshop with everything that is needed there The connections of the energy columns can be combined individually so that the appropriate connections for the training stands and teaching systems are available.

The energy column consists of a powder-coated support plate made of 2 mm Zincore (RAL colour as desired), which is set in grooved extruded profile. A connection to already existing module fields is possible here.

2 lines with water meter for hot water and cold water, each with a solenoid valve for media release per workstation

Electrical switch box with the following equipment:

2 x 230 V 16 A CEE socket with hinged cover
4 switches with operating display for the media
1 mushroom emergency stop switch lockable in ring connection with central emergency stop

Note: This is an exemplary configuration. Individual equipment and fitting of the power columns is possible. Please contact us!

vocational training and further education as a plant mechanic for sanitary, heating and air-conditioning.
Workshops and laboratories for basic and advanced training
