Training Stand Gas Technology

Item No.: 95740

Add to wish list

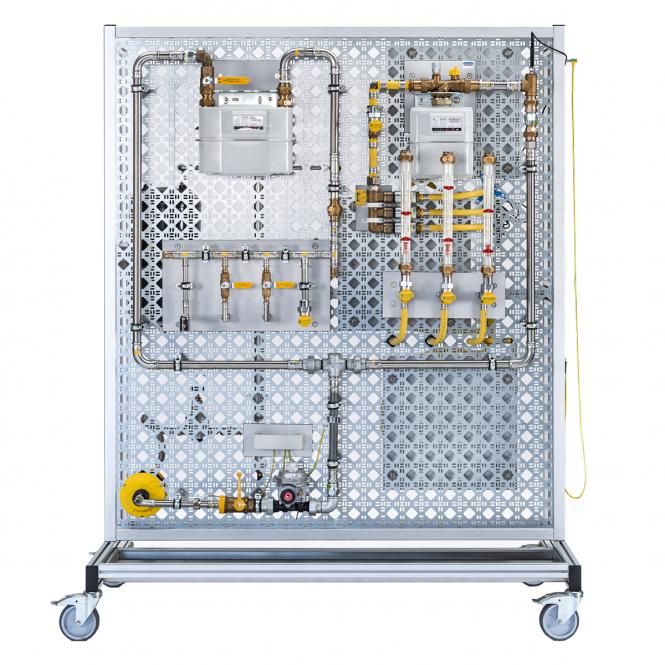

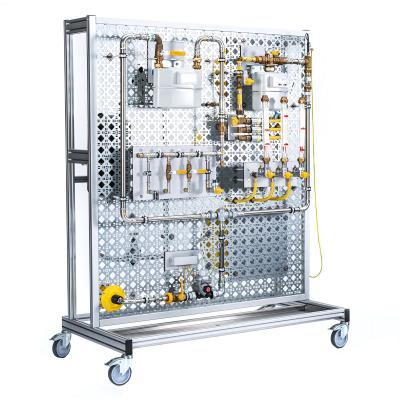

Mobile training stand on rollers for practical teaching of the basics of gas technology.

The training stand can be used to complete self-contained practical work on real industrial components. In this way, complete customer orders for gas installation can be processed.

Particularly illustrative: The training stand is equipped with a camera that makes the triggering process of the gas flow monitor visible.

All tests are carried out with compressed air.

Safe operation of the training stand with compressed air generated by a whispering compressor
With a camera via USB connection, e.g. for a laptop, the triggering process of the gas flow monitor can be made visible to teach the mode of operation
Use of different pipe materials according to TRGI

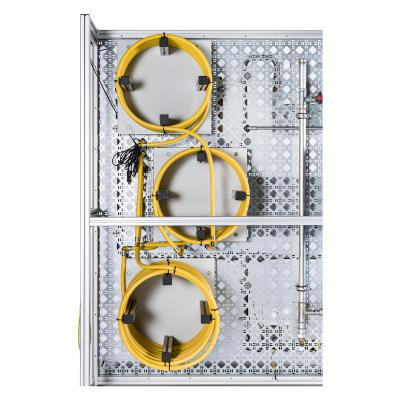

Effect of different pipe lengths on the flow pressure

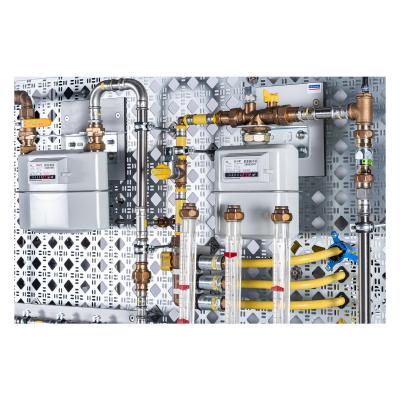

With flow floats for visualising gas consumers and flow behaviour when operating several gas consumers
With measuring test ports for measuring the pressures that occur
For processing customer orders, including:
Carrying out load and leak tests
Carrying out maintenance orders (regulator test, serviceability test)

The didactic documents are an essential part of the gas technology training stand and contain, among other things, the following learning field-oriented learning situations:

Functional analysis of gas-relevant components (insulating piece, gas pressure regulator, gas flow monitor, gas meter, shut-off devices, gas appliance taps)
Approved materials and possible joining methods
Leak test of gas pipes
Active and passive protection against tampering in gas installations
Inspection of a gas installation
Serviceability test of gas pipes

The learning situations are dealt with through practical work at the training stand. The didactic documents contain tasks, suggested solutions and sample calculations for the evaluation of the measured values determined at the training stand.
