MAPS extension hydraulics

MAPS extension hydraulics
For double-sided multifunctional workstation system

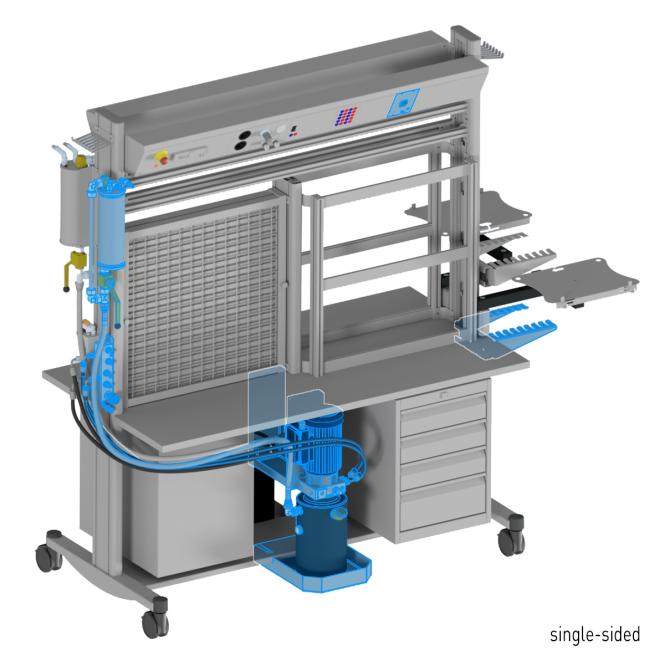

Single-sided hydraulic workstation (for one side of the table)
Item No.: 105276
Add to wish list

Add hydraulics technology to your multifunctional workstation system. With this extension, you can expand your MAPS into a comprehensive teaching system on which all control technology can be taught in a practical way.

The MAPS Professional double-sided or MAPS Mechatronics double-sided teaching system is required to use the extension. With the ‘single-sided hydraulic workstation’ variant, hydraulic exercises can be carried out on one of the two sides of the table.

The extension consists of the following components:

  • 1x grid frame
  • 1x hose holder
  • 1x measuring glass
  • 1x holder for measuring glass
  • 1x Drive unit mounting plate incl. oil pan
  • 1x Drive unit
  • 1x EAL switch module (on/off)
  • 1x Empty plate
  • 1x hose set (operating side 1)
  • 1x P/T distributor
  • 1x PVC braided hose 19x3.5mm transparent 2.1m
  • 1x Press nipple DN19 DKOL18 3/4 inch
